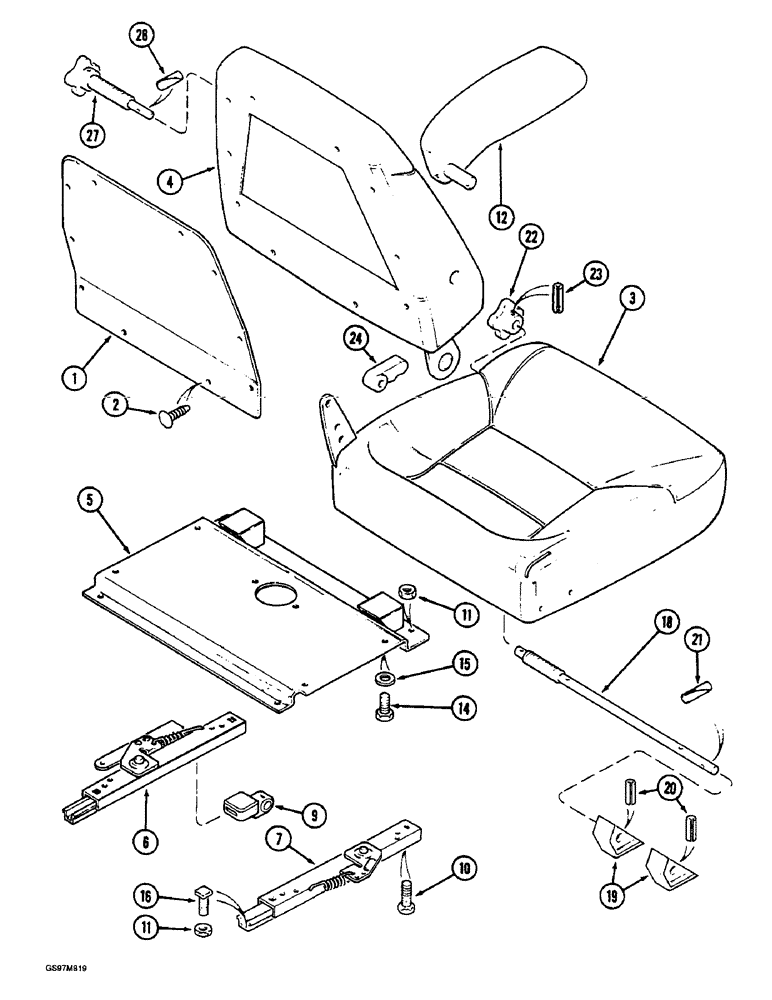

Запчасти Case IH 1660 (9G-40) - SEAT, SEARS, MECHANICAL SUSPENSION, P.I.N. JJC0041750 AND AFTER (10) - CAB & AIR CONDITIONING

1990652C2

SEAT

ASSEMBLY - mechanical suspension (Replaces seat assembly 1990651C1), Includes: Ref. 1 - 28 and 1 - 35 on 9G-42

1шт.

1

1981820C2

PACKAGE, REPAIR

KIT - back cover service, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

CLIP - christmas tree, order kit 1981820C2

10шт.

3

243701A1

CUSHION, SEAT

KIT - seat pad (Replaces kit 1981815C1)

1шт.

4

1981816C2

PACKAGE,SERVICE

KIT - backrest pad

1шт.

5

1981868C1

SEAT SUPPORT

PLATE - slide adapter, no longer available, order plate 1999781C1, item 5A

1шт.

5a

1999781C1

SEAT SUPPORT

PLATE - slide adapter, narrow, not shown

1шт.

1344248C1

SLIDE

KIT - slide, double locking (Replaces kit 1344247C1), Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE - locking, with handle, left-hand, order kit 1344248C1

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE - locking, right-hand, order kit 1344248C1

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE - slide later, not shown, order kit 1344248C1

1шт.

9

NSS

NOT SOLD SEPARAT

KNOB - fore/aft, order kit 1344248C1 or 1999691C1

1шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

11

230-4225

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

8шт.

12

1981818C1

ARMREST

KIT - armrest, left-hand

1шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

- square head, 5/16 NC x 3/4 inch, grade 2

4шт.

1981813C2

PACKAGE, REPAIR

KIT - seat, order kit 243700A1, Includes: Ref. 18 - 28

1шт.

1981856C2

PACKAGE, REPAIR

KIT - seat cushion, Includes: Ref. 18 - 24

1шт.

1343826C2

SHAFT ASSY.

SHAFT ASSEMBLY - tilt, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

CAMSHAFT - seat

1шт.

19

NSS

NOT SOLD SEPARAT

CAM - seat tilt, order shaft assembly 1343826C2

2шт.

20

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, , order shaft assembly 1343826C2 5/32" x 1", Slotted

2шт.

21

38-21020

PIN,5/32" x 1 1/4", Coiled

1шт.

22

1981826C1

KNOB

- seat tilt, order kit 1999691C1

1шт.

23

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

24

1987212C1

PACKAGE

KIT - seat cushion, back tilt knob

1шт.

27

1981828C1

BUTTON

KNOB - control, lumbar, order kit 1999691C1

1шт.

28

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

2шт.
