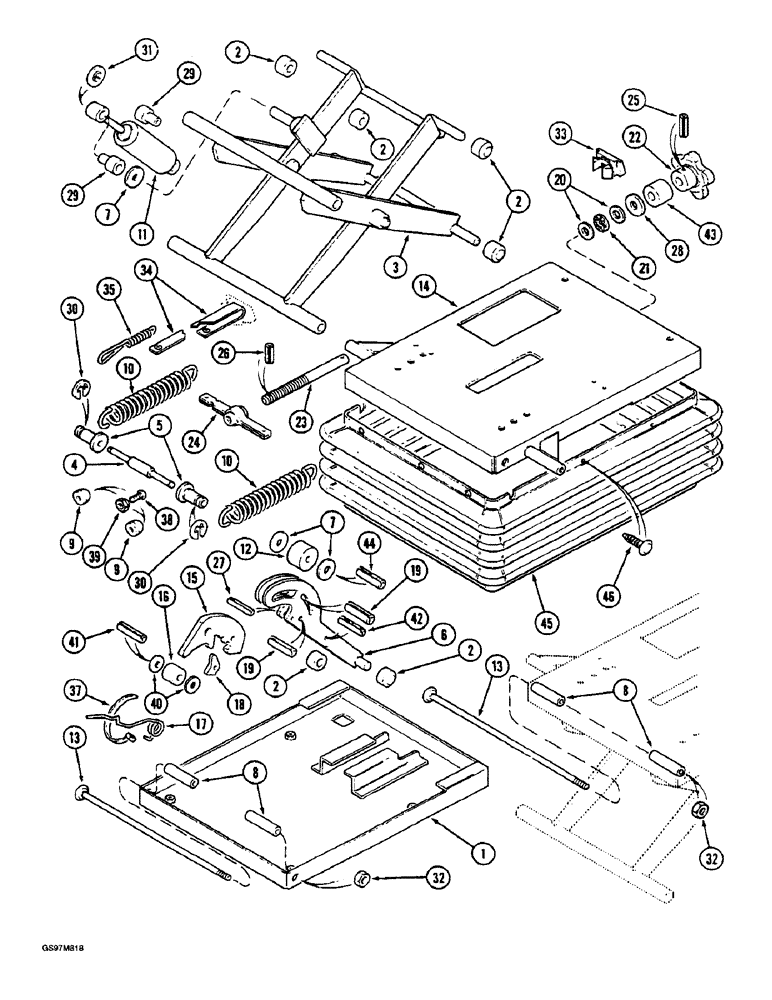

Запчасти Case IH 1660 (9G-38) - SEAT, SEARS, MECHANICAL SUSPENSION, PRIOR TO P.I.N. JJC0041750 (CONTD) (10) - CAB & AIR CONDITIONING

REF

INSTRUCTION

SEAT ASSEMBLY - operators, Includes: Ref. 1 - 32 and 1 - 17 on Figure 9G-36

1шт.

1981785C1

PACKAGE, REPAIR

KIT - suspension service, Includes: Ref. 1 - 32

1шт.

1

1981787C1

CASE

HOUSING - lower

1шт.

2

1981788C1

SHIFTER ROLLER

ROLLER - suspension, no longer available, order kit 1344249C1

6шт.

3

1981789C1

DIPPER

ARM - suspension

1шт.

4

128115A1

SHAFT

- spring (Replaces shaft 1981790C1)

1шт.

5

1981791C1

BUSHING

- spring, order kit 123968A2

2шт.

6

1981792C1

ARM

- mounting

1шт.

7

A45519

WASHER

- flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch, armrest

5шт.

8

A47760

BUSHING

TUBE - bearing

4шт.

9

1981793C1

BUMPER

- seat

2шт.

10

1981794C1

SPRING

- external, order kit 123968A2

2шт.

11

1343998C1

KIT

ABSORBER - shock (Replaces absorber 1981795C1)

1шт.

12

1981796C1

BEARING, NEEDLE

BEARING - cam follower, order kit 123967A1

1шт.

13

A49529

SHAFT

- bushing tube

2шт.

14

1981944C1

HOUSING

- upper

1шт.

15

1981798C1

CAM

- low profile

1шт.

16

1981799C1

BEARING, NEEDLE

BEARING - cam follower, order kit 123967A1

1шт.

17

1981800C1

SPRING, LEAF

SPRING - height adjustment, order kit 123966A1

1шт.

18

1981801C1

LATCH

- seat, order kit 119001A1

1шт.

19

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

2шт.

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

20

1981802C1

WASHER, THRUST

BEARING - thrust, order kit 1987116C2 on Figure 9G-42

2шт.

21

F13537

THRUST BEARING

BEARING - thrust

1шт.

22

1981945C1

BUTTON

KNOB - weight adjusting, order kit 119000A1

1шт.

23

1981805C1

SHAFT

- weight adjusting, order kit 123969A1

1шт.

24

1981806C1

BRACKET

BAR - weight adjustment, spring, order kit 1987116C2 on Figure 9G-42

1шт.

25

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

26

38-11010

LOCK PIN,5/32" x 5/8", Slotted

Pin, 5/32" x 5/8", Slotted

1шт.

27

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

28

1974732C1

WASHER

- flat, 25/64 x 1-1/8 x 1/8 inch

1шт.

29

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

30

A49623

RING, SNAP

RING - retaining

2шт.

31

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

32

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

1344249C1

KIT

KIT - roller tube and bearing, Includes: Ref. 33 - 46

1шт.

123968A2

PACKAGE

KIT - spring, weight adjusting, Includes: Ref. 33 - 46

1шт.

123967A1

PACKAGE

KIT - cam follower, Includes: Ref. 33 - 46

1шт.

123966A1

PACKAGE

KIT - spring, height adjusting, Includes: Ref. 33 - 46

1шт.

123969A1

SEAT ACCESSORY

Kit - Knob and shaft assy, Incl Ref 33 - 46

1шт.

119001A1

ARMREST ASSY.

KIT - arm, cam, Includes: Ref. 33 - 46

1шт.

33

1981807C1

GUIDE

- weight adjustment

1шт.

34

1981808C1

TAPE

- adjustment, weight, order kit 1999901C1

1шт.

35

1981809C1

SPRING

- suspension, weight, order kit 1999901C1

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

38

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan Phillips, No. 10 NC x 5/8 inch

2шт.

39

230-42409

NUT,#10-24, GA

NUT - hex, self-locking, No. 10 NC

2шт.

40

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

41

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

42

38-12412

LOCK PIN,3/8" x 3/4", Slotted

Pin, 3/8" x 3/4", Slotted

1шт.

43

1343839C1

SPACER

- adjusting knob

1шт.

44

138-2051

PIN,1/4" x 3/4", Coiled

No longer available 1/4" x 3/4", Coiled

1шт.

45

1981786C1

KIT

- boot, suspension, with buttons, Includes: Ref. 46

1шт.

46

132872A1

KIT

- boot pins (Replaces pin 1343837C1)

1шт.

1999901C1

KIT

- spring and weight adjustment

1шт.
