Запчасти Case IH 1660 (1-28) - PICTORIAL INDEX, TWO SPEED PROPULSION SYSTEM (00) - PICTORIAL INDEX

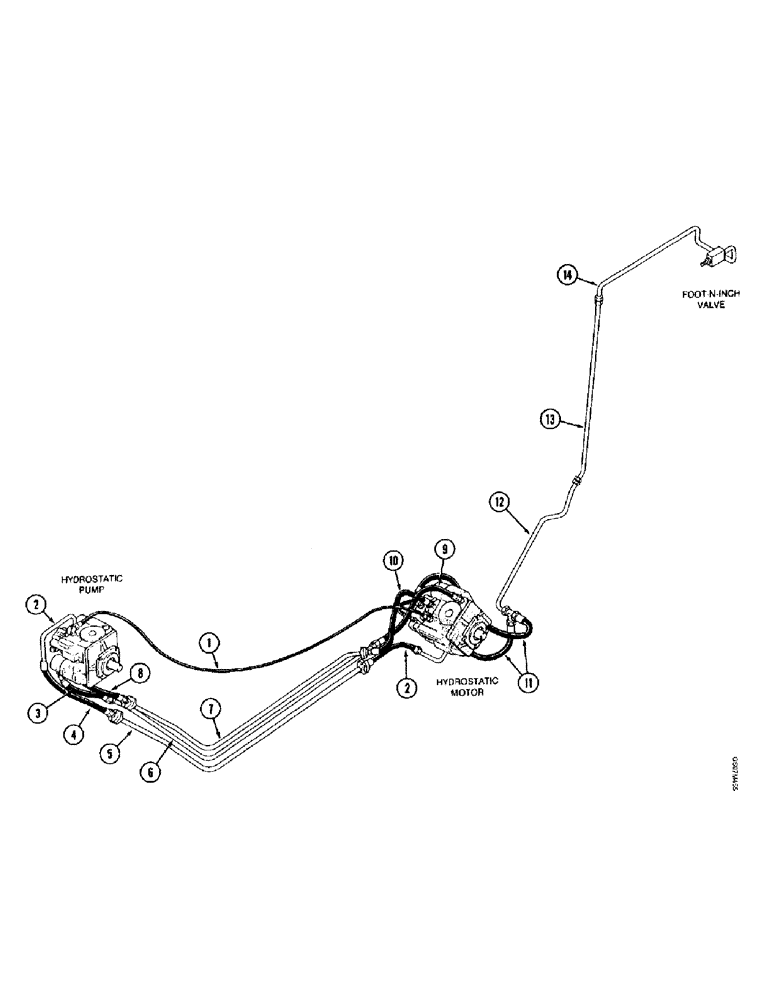

Схема запчастей Case IH 1660 - (1-28) - PICTORIAL INDEX, TWO SPEED PROPULSION SYSTEM (00) - PICTORIAL INDEX
2
7
13
5
14
11
3
1
2
8
12
6
4
9
10

Артикул

Название

Примечание

Количество

1

Charge Pressure Hose, 6-13

1шт.

2

Reverse Pressure Hose, 6-13

1шт.

3

Housing Drain Upper Hose, 6-13

1шт.

4

Reverse Pressure Tube, 6-13

1шт.

5

Forward Pressure Upper Tube, 6-13

1шт.

6

Housing Drain Tube, 6-13

1шт.

7

Reverse Pressure Tube, 6-13

1шт.

8

Reverse Pressure Hose, 6-13

1шт.

9

Housing Drain Lower Hose, 6-13

1шт.

10

Forward Lower Pressure Hose, 6-13

1шт.

11

Foot-N-Inch Hose, 6-17

1шт.

12

Lower Foot-N-Inch Tube, 6-17

1шт.

13

Center Foot-N-Inch Tube, 6-17

1шт.

14

Upper Foot-N-Inch Tube, 6-17

1шт.

Выбрано товаров: 14
