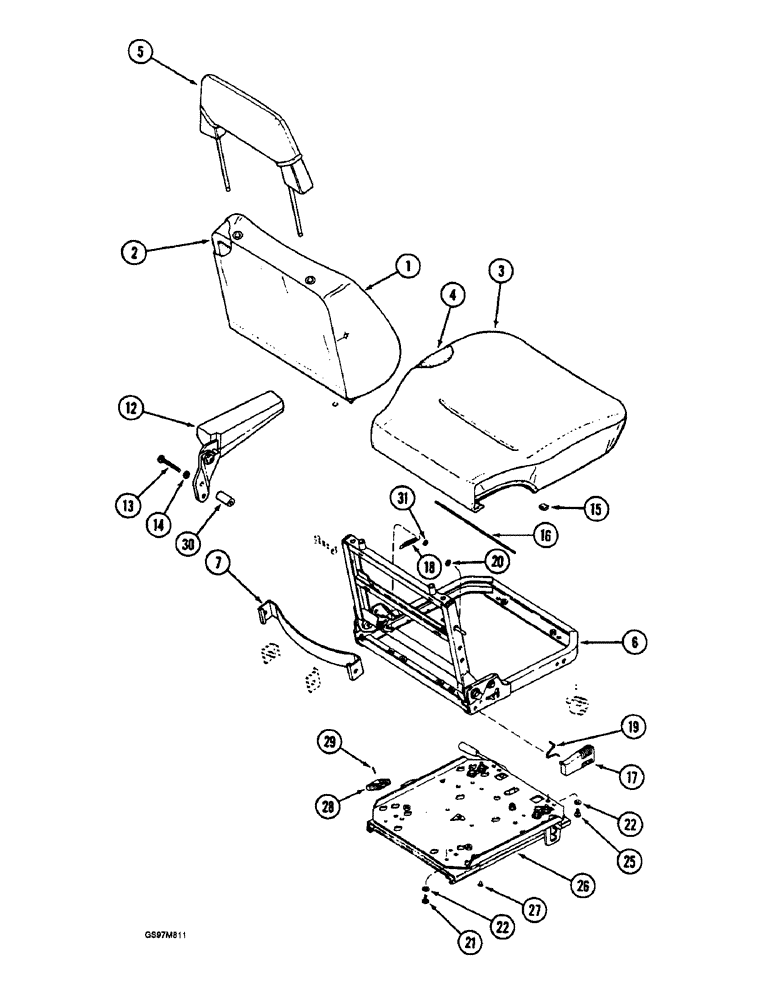

Запчасти Case IH 1660 (9G-24) - SEAT, CUSHION AND FRAME, BOSTROM (10) - CAB & AIR CONDITIONING

91789C91

SEAT

ASSEMBLY - operator, Includes: Ref. 1 - 31 and all kits listed below

1шт.

1954464C1

KIT

- service, top assembly, seat, order seat assembly 1990652C2, parts list Figure 9G-40, Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - backrest cushion

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - backrest foam

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - seat cushion

1шт.

4

NSS

NOT SOLD SEPARAT

CUSHION - seat foam

1шт.

5

NSS

NOT SOLD SEPARAT

EXTENSION - backrest

1шт.

6

NSS

NOT SOLD SEPARAT

FRAME - seat

1шт.

7

NSS

NOT SOLD SEPARAT

SUPPORT - lumbar

1шт.

Part of top seat service kit, P/N 1954469C1

1шт.

12

NSS

NOT SOLD SEPARAT

ARMREST - seat

1шт.

Part of arm rest service kit P/N 1954466C1

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - retaining, 8 x 60 mm

2шт.

Part of arm rest service kit P/N 1954466C1

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - lock, 8 mm

2шт.

Part of arm rest service kit P/N 1954466C1

1шт.

15

NSS

NOT SOLD SEPARAT

CLIP - retaining, D type

15шт.

Part of service, miscellaneous kit P/N 1954471C1

1шт.

Part of top seat service kit, P/N 1954469C1

1шт.

16

NSS

NOT SOLD SEPARAT

ROD - pouch

1шт.

17

NSS

NOT SOLD SEPARAT

HANDLE - recline

1шт.

Part of top seat service kit, P/N 1954469C1

1шт.

Part of service, miscellaneous kit P/N 1954471C1and on Figures 9G-24, 9G-26 and 9G-28

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - tension

2шт.

Part of top seat service kit, P/N 1954469C1

1шт.

Part of service, miscellaneous kit P/N 1954471C1and on Figures 9G-24, 9G-26 and 9G-28

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - adjusting

1шт.

Part of top seat service kit, P/N 1954469C1

1шт.

Part of service, miscellaneous kit P/N 1954471C1and on Figures 9G-24, 9G-26 and 9G-28

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

Part of top seat service kit, P/N 1954469C1

1шт.

Part of service, miscellaneous kit P/N 1954471C1and on Figures 9G-24, 9G-26 and 9G-28

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW - retaining, 6 x 20 mm

2шт.

Part of top seat service kit, P/N 1954469C1

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - lock, 6 mm

4шт.

Part of top seat service kit, P/N 1954469C1

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW - retaining, 6 x 16 mm

2шт.

Part of top seat service kit, P/N 1954469C1

1шт.

26

NSS

NOT SOLD SEPARAT

SLIDER - seat

1шт.

Part of top seat service kit, P/N 1954469C1

1шт.

27

NSS

NOT SOLD SEPARAT

BUTTON - slider

2шт.

Part of top seat service kit, P/N 1954469C1

1шт.

Part of service, miscellaneous kit P/N 1954471C1and on Figures 9G-24, 9G-26 and 9G-28

1шт.

28

NSS

NOT SOLD SEPARAT

HANDLE - slider

1шт.

Part of top seat service kit, P/N 1954469C1

1шт.

29

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

Part of top seat service kit, P/N 1954469C1

1шт.

30

NSS

NOT SOLD SEPARAT

SPACER - armrest retaining

2шт.

Part of arm rest service kit P/N 1954466C1

1шт.

Part of top seat service kit, P/N 1954469C1

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - recliner

1шт.

Part of top seat service kit, P/N 1954469C1

1шт.

Part of service, miscellaneous kit P/N 1954471C1and on Figures 9G-24, 9G-26 and 9G-28

1шт.

1954472C1

KIT

- service, trim, includes items 1, 3, 15, and 16

1шт.

1954471C1

KIT

- service, miscellaneous, Includes Refs. 15, 17, 18, 19, 20, 27 and 31 and items on Figures 9G-24, 9G-26 and 9G-28

1шт.

1954466C1

KIT

- service, arm rest, Includes Refs. 12, 13, 14 and 30

1шт.

1954469C1

KIT

- service, top, seat, Includes Ref. 7, 15, 17 - 29 and 31 and items on Figures 9G-24 and 9G-26

1шт.
