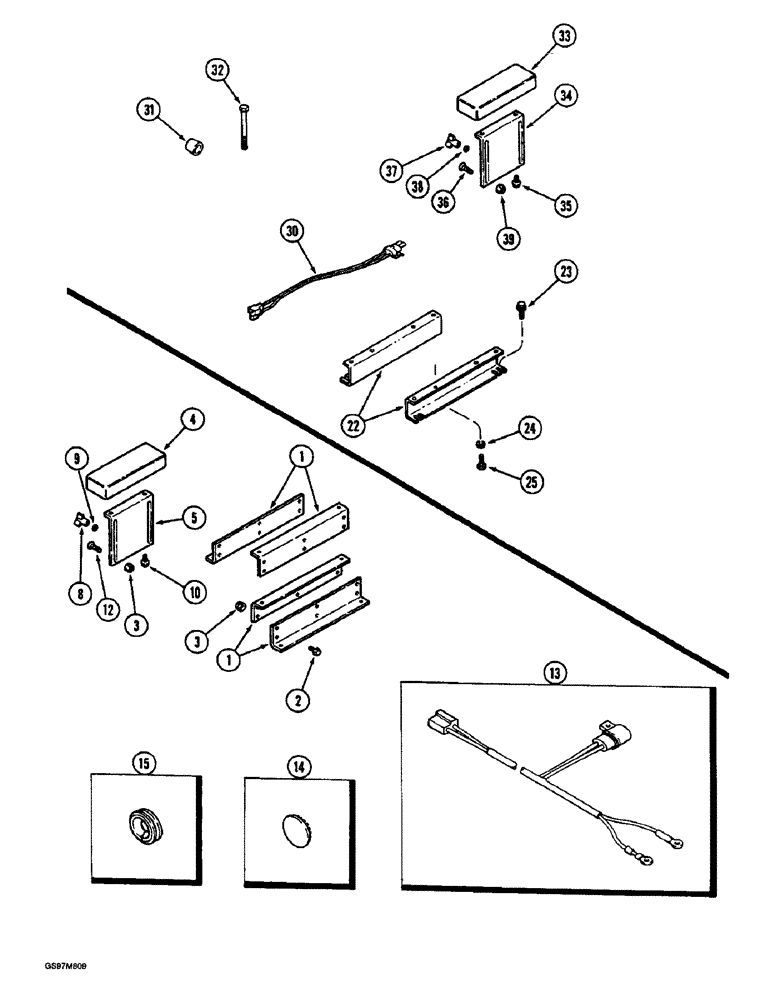

Запчасти Case IH 1660 (9G-20) - OPERATORS SEAT, MOUNTING, PRIOR TO P.I.N. JJC0039670 (10) - CAB & AIR CONDITIONING

1

98115C1

BRACKET

- seat mounting

4шт.

2

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

2

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT - self-locking, hex flange, special, 5/16 NC x 3/4 inch

10шт.

3

1330064C1

FLANGE NUT

- hex flange, self-locking, polyseal, 5/16 inch NC

6шт.

4

1301216C3

ARMREST

- seat

1шт.

5

192999C1

SUPPORT

- arm rest mounting

1шт.

8

196970C1

KNOB

- arm rest

2шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

13

91832C1

HARNESS

- seat

1шт.

14

142094

HOLE PLUG BUTTON,1'

PLUG - button, 25 mm (1 inch) hole diameter, Bostrom (Replaces plug 142091)

1шт.

15

123548H

GROMMET

- seat, Grammer

1шт.

22

1979726C3

SUPPORT

BRACKET - seat supporting, P.I.N. JJC0039670 and after

2шт.

23

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT - self-locking, hex flange, special, 5/16 NC x 3/4 inch, P.I.N. JJC0039670 and after

4шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , P.I.N. JJC0039670 and after M8

4шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

P.I.N. JJC0039670 and after Hex, M8 x 20, 8.8

4шт.

30

1983414C1

HARNESS

- seat, prior to P.I.N. JJC0041750, P.I.N. JJC0039670 and after

1шт.

30

1345209C1

HARNESS

- seat switch, P.I.N. JJC0041750 and after, P.I.N. JJC0039670 and after

1шт.

31

353-411

PLUG,Dome, 1.000" hole, Nylon

P.I.N. JJC0039670 and after Dome, 1.000" hole, Nylon

1шт.

32

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

P.I.N. JJC0039670 and after Hex, 5/16"-18 x 5", G5

4шт.

33

1301216C3

ARMREST

- seat, P.I.N. JJC0039670 and after

1шт.

34

192999C1

SUPPORT

- arm rest mounting, P.I.N. JJC0039670 and after

1шт.

35

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

P.I.N. JJC0039670 and after Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

36

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, P.I.N. JJC0039670 and after

2шт.

37

196970C1

KNOB

- arm rest, P.I.N. JJC0039670 and after

2шт.

38

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

P.I.N. JJC0039670 and after 11/32" x 11/16" x 0.89", HDN

2шт.

39

1330064C1

FLANGE NUT

- hex flange, self-locking, polyseal, 5/16 inch NC, P.I.N. JJC0039670 and after

2шт.
