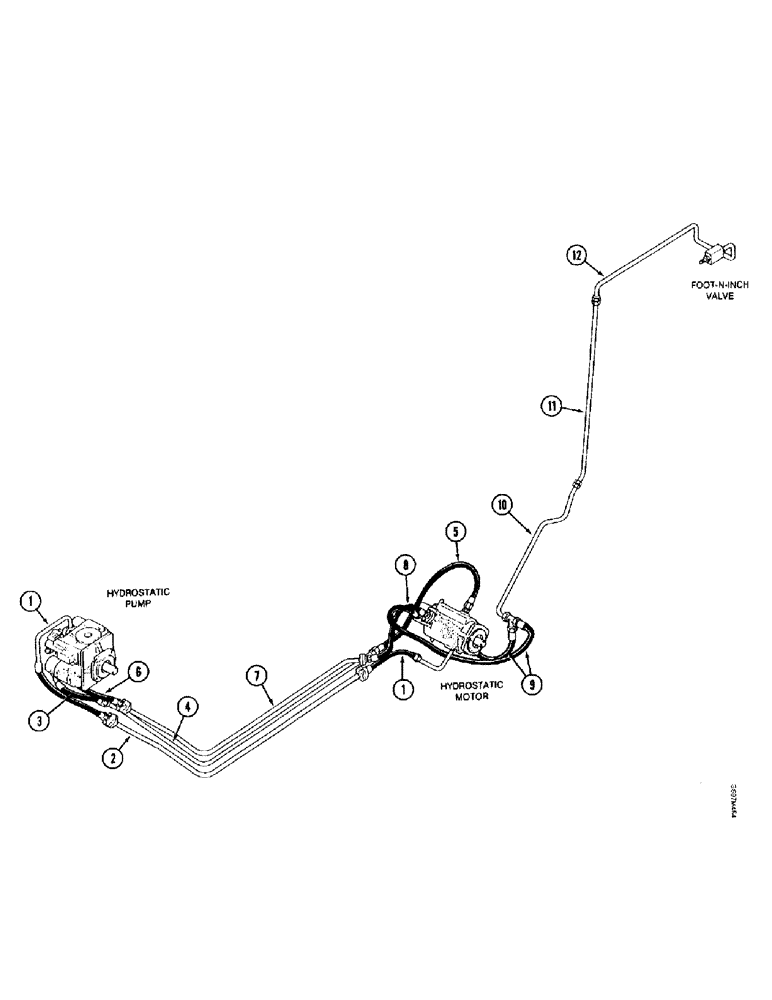

Запчасти Case IH 1660 (1-26) - PICTORIAL INDEX, SINGLE SPEED PROPULSION SYSTEM (00) - PICTORIAL INDEX

1

Reverse Pressure Hose, 6-9

1шт.

2

Reverse Pressure Tube, 6-9

1шт.

3

Housing Drain Upper Hose, 6-9

1шт.

4

Housing Drain Tube, 6-9

1шт.

5

Housing Drain Lower Hose, 6-9

1шт.

6

Forward Pressure Upper Tube, 6-9

1шт.

7

Forward Pressure Tube, 6-9

1шт.

8

Forward Pressure Lower Hose, 6-9

1шт.

9

Foot-N-Inch Hose, 6-17

1шт.

10

Foot-N-Inch Lower Tube, 6-17

1шт.

11

Foot-N-Inch Center Tube, 6-17

1шт.

12

Foot-N-Inch Upper Tube, 6-17

1шт.
