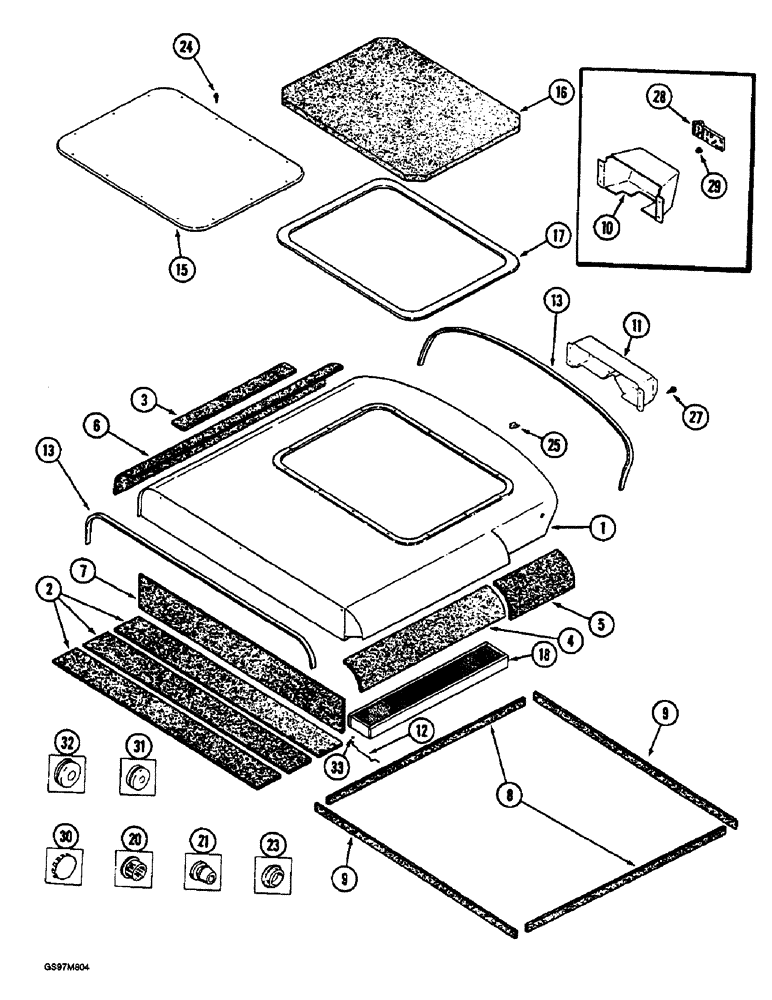

Запчасти Case IH 1660 (9G-10) - CAB, ROOF (10) - CAB & AIR CONDITIONING

1

1344179C1

ROOF

ASSEMBLY - cab (Replaces roof assembly 1276124C2), Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

SHEET - insulation top, 305 mm (12 inch) long, cut from bulk insulation 1327515C2 below

3шт.

3

NSS

NOT SOLD SEPARAT

SHEET - insulation, left-hand top, 305 mm (12 inch) long, cut from bulk insulation 1327515C2 below

1шт.

4

NSS

NOT SOLD SEPARAT

SHEET - insulation, right-hand rear, 305 mm (12 inch) long, cut from bulk insulation 1327515C2 below

1шт.

5

NSS

NOT SOLD SEPARAT

SHEET - insulation, right-hand front, 305 mm (12 inch) long, cut from bulk insulation 1327515C2 below

1шт.

6

NSS

NOT SOLD SEPARAT

SHEET - insulation, left-hand side, 305 mm (12 inch) long, cut from bulk insulation 1327515C2 below

1шт.

7

NSS

NOT SOLD SEPARAT

SHEET - insulation, rear, 1524 mm (60 inch) long, cut from bulk insulation 1327515C2 below

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - roof side, 1372 mm (54 inch) long, cut from bulk insulation 182747C2 below

2шт.

9

NSS

NOT SOLD SEPARAT

STRIP - roof front and rear, 1448 mm (57 inch) long, cut from bulk seal 182747C1 below

2шт.

10

1281510C2

COVER

- windshield wiper motor, prior to P.I.N. JJC0041732

1шт.

11

1344141C1

COVER

- windshield wiper motor, used with medallion

1шт.

11

1990977C1

COVER ASSY

COVER ASSEMBLY - windshield wiper motor, includes decal

1шт.

12

117727C2

ROD

- filter latch

3шт.

13

NSS

NOT SOLD SEPARAT

SEAL - roof trim front and rear, 1829 mm (72 inch) long, cut from bulk seal 1327666C1 below

2шт.

15

143006C3

PANEL

- roof, access cover

1шт.

16

1276340C2

INSULATOR

INSULATION - access cover

1шт.

17

83872C2

SEAL

- access cover

1шт.

18

143481C2

AIR CLEANER

FILTER - air recirculation

1шт.

20

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch

5шт.

20

205-107

HOLE PLUG BUTTON,9/32"

PLUG - 9/32 inch ID (Replaces plug 179093)

8шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

3шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID

1шт.

23

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

24

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

14шт.

25

445406

SPRING NUT,Tinn, 1/4"-14

- spring, 1/4 inch

14шт.

27

1327767C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 16mm

- self-tapping, hex washer head, polyseal, 5/16 NC x 5/8 inch

4шт.

28

A181900

EMBLEM

- Case IH, prior to P.I.N. JJC0041732

1шт.

29

1324788C1

NUT

- self threading, 1/4 inch, prior to P.I.N. JJC0041732

2шт.

30

353-408

PLUG,Dome, .750" hole, Nylon

- button, 3/4 inch

2шт.

31

1321769C1

GROMMET

- rubber, 5/8 inch diameter hole

2шт.

32

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

- rubber, 3/8 x 27/32 x 5/16 inch

1шт.

33

118084C1

SEALING WASHER

- rubber

3шт.

1327515C2

INSULATOR

INSULATION - bulk, 3048 mm (10 foot) sheet

1шт.

182747C1

DOOR SEAL

SEAL - bulk, 15240 mm (600 inch) long, sold by the foot

1шт.

1327666C1

SEAL

- bulk roll, sold by the foot

1шт.
