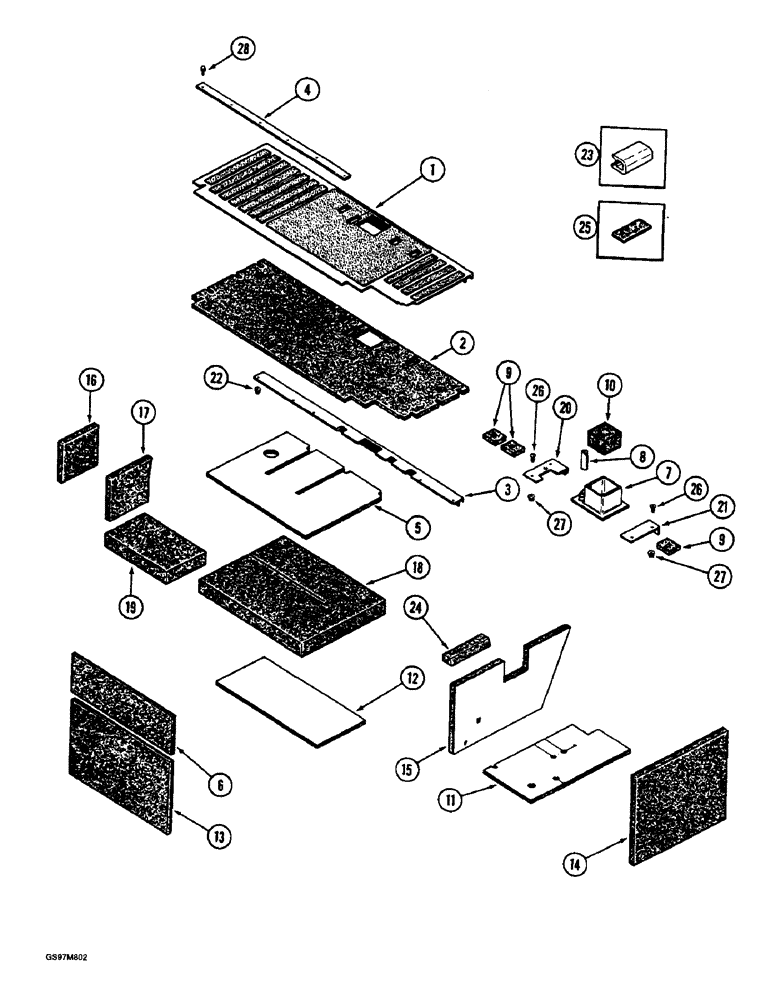

Запчасти Case IH 1660 (9G-06) - CAB, INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING

1

1329711C3

MAT

- floor

1шт.

2

1326885C1

INSULATOR

PAD - insulation, floor mat

1шт.

3

1327603C1

SUPPORT

- floor mat front retainer, front retainer, if used

1шт.

4

91796C1

STRIP

- floor mat hold down, 1045 mm (41-9/64 inch) long

1шт.

4

1338051C1

BRACKET

- hold-down, J-type, 1352 mm (53-7/32 inch) long

1шт.

5

98123C4

SHEET ASSY.

SUPPORT - seat platform

1шт.

6

98008C2

INSULATOR

PAD - insulation, center rear support

1шт.

7

198075C1

INSULATOR

PAD - insulation, steering pedestal

1шт.

8

187581C1

ANGLE

- steering pedestal

1шт.

9

1321935C1

SEAL

- pedal

3шт.

10

1324844C1

SEAL

- steering pedestal

1шт.

11

196587C7

INSULATOR

PAD - insulation, right-hand, cover

1шт.

12

91793C2

INSULATOR

PAD - insulation, center cover

1шт.

13

91790C2

INSULATOR

PAD - insulation, center rear

1шт.

14

1301219C2

SHEET

PAD - insulation, right-hand console sound, outer cover

1шт.

15

91797C2

SHEET

PAD - insulation, right-hand, inner, cover

1шт.

16

196598C2

SHEET

- insulation, left-hand, outer, cover

1шт.

17

1322927C2

INSULATOR

PAD - insulation, left-hand panel

1шт.

18

91791C2

INSULATOR

- center sound, if used

1шт.

Discontinued this P/N 91791C2. Per FEC D1481, remove center sound sheet from beneath operator cab seat. Test showed no increase in sound level with pad removed.

1шт.

19

91792C3

SHEET ASSY.

PAD - insulation, manual box

1шт.

20

1327567C1

PLATE

- boot hold-down, left-hand

1шт.

21

1327568C1

PLATE

- boot hold-down, right-hand

1шт.

22

231-5146

FLANGE NUT,3/8"-16

5шт.

23

NSS

NOT SOLD SEPARAT

TRIM - rear inside edge to cab, 699 mm (27-1/2 inch) long, cut from bulk trim 1330108CX below

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - left-hand inside edge to cab, 375 mm (14-3/4 inch) long, cut from bulk trim 1330108CX below

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - vertical flange under right-hand door, 152 mm (6 inch) long, cut from bulk trim 1330108CX below

1шт.

24

1288795C2

SEAL

- throttle lever

1шт.

25

1301236C1

SEALING STRIP

STRIP - operator’s cab to deck, 711 mm (28 inch) long, cut from bulk trim 1330108CX below

1шт.

26

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

28

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

6шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.

FOOTNOTE

1шт.
