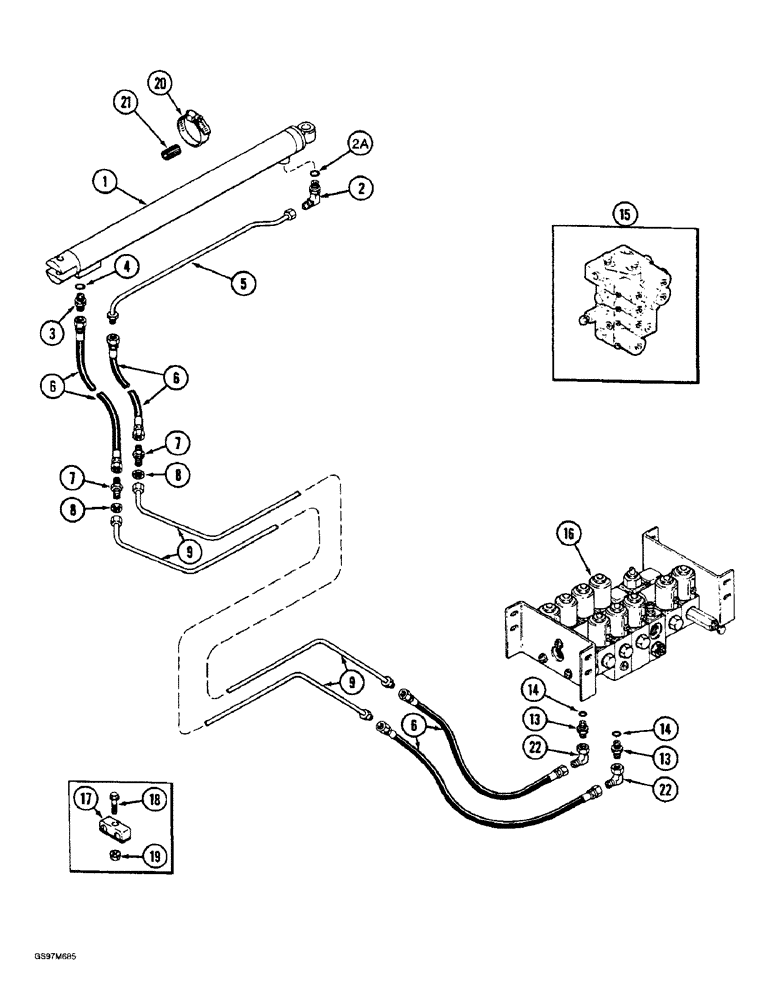

Запчасти Case IH 1660 (8-122) - UNLOADER TUBE SWING CYLINDER SYSTEM (07) - HYDRAULICS

1

1282488C91

CYLINDER

ASSEMBLY - unloader swing, parts list Figure 8-124

1шт.

1282488C92R

REMAN-HYD CYLINDER

1660 S/N JJC0038346 & After (1/86-12/92), Reman For New P/N 1282488C91

1шт.

1282488C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adjustable O-ring boss, Includes: Ref. 2A

1шт.

2a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

3

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 4

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

5

1317623C1

HYD TUBE,0.25" OD, 480, 45 mm Length

TUBE - unloader swing cylinder

1шт.

6

66880C1

HOSE,6.35mm ID x 508mm L, SAE 100R1

Unloader Swing 0.25" ID x 20.00", SAE 100R1

4шт.

7

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, 7/16-20 inch flare x bulkhead flare

2шт.

8

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - hex, lock, bulkhead, 7/16 inch NF

2шт.

9

196751C1

UNLOADING TUBE

TUBE - unloader swing cylinder

2шт.

13

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 7/16-20 flare x 3/4-16 inch O-ring boss, Includes: Ref. 14

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

15

REF

INSTRUCTION

VALVE ASSEMBLY control, parts list Figure 8-056 or 8-060

1шт.

Prior to P.I.N. JJC0103800.

1шт.

16

REF

INSTRUCTION

VALVE ASSEMBLY control, parts list Figure 8-058 or 8-062

1шт.

P.I.N. JJC0103800 and after.

1шт.

17

183824C1

CLAMP

- unloader swing tubes

2шт.

18

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

20

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm

1шт.

21

163489C1

STRIP

INSULATOR - rubber, 1/4 ID x 1-13/64 inch long

1шт.

22

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, 7/16-20 inch flare x swivel

2шт.
