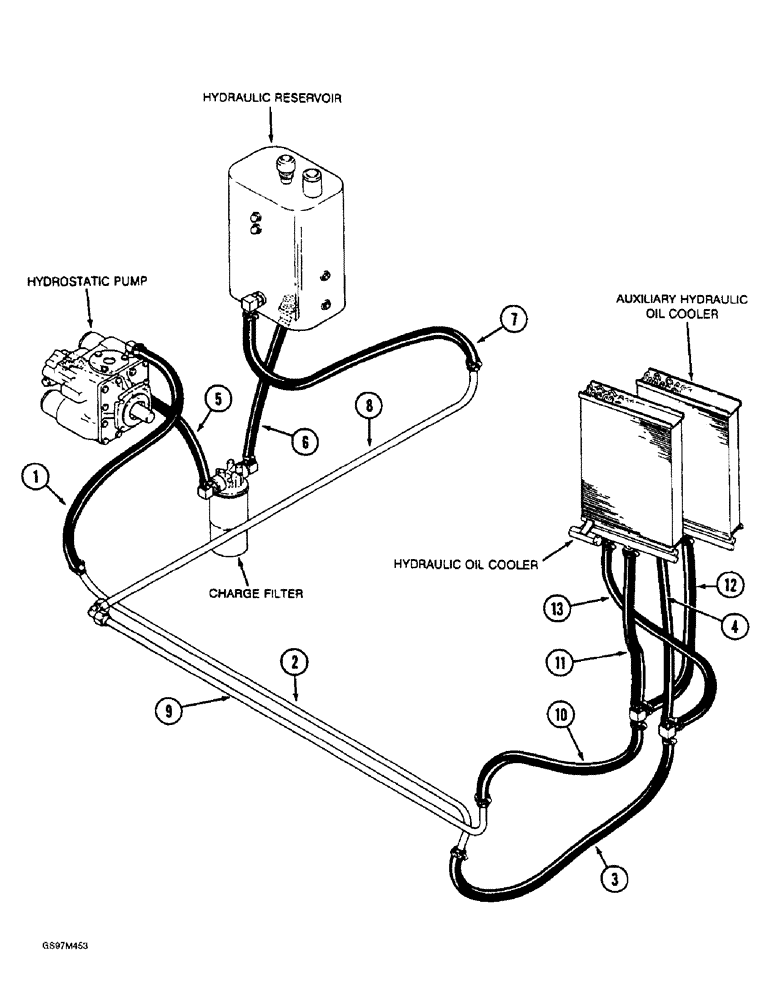

Запчасти Case IH 1660 (1-24) - PICTORIAL INDEX, OIL COOLER SYSTEM, RICE (00) - PICTORIAL INDEX

1

Auxiliary Cooler to Pump Hose - upper, 8-23

1шт.

2

Auxiliary Cooler to Pump Tube, 8-23

1шт.

3

Auxiliary Cooler to Pump Hose - intermediate, 8-23

1шт.

4

Auxiliary Cooler to Pump Hose - lower, 8-23

1шт.

5

Pump to Filter Hose, 8-11

1шт.

6

Filter to Reservoir Hose, 8-11

1шт.

7

Cooler to Reservoir Hose - upper, 8-23

1шт.

8

Oil Cooler Return Tube - upper, 8-23

1шт.

9

Oil Cooler Return Tube - lower, 8-23

1шт.

10

Oil Cooler to Reservoir Hose - intermediate, 8-23

1шт.

11

Oil Cooler to Reservoir Hose - lower, 8-23

1шт.

12

Auxiliary Cooler to Reservoir Hose, 8-23

1шт.

13

Auxiliary Cooler to Reservoir Hose, 8-23

1шт.
