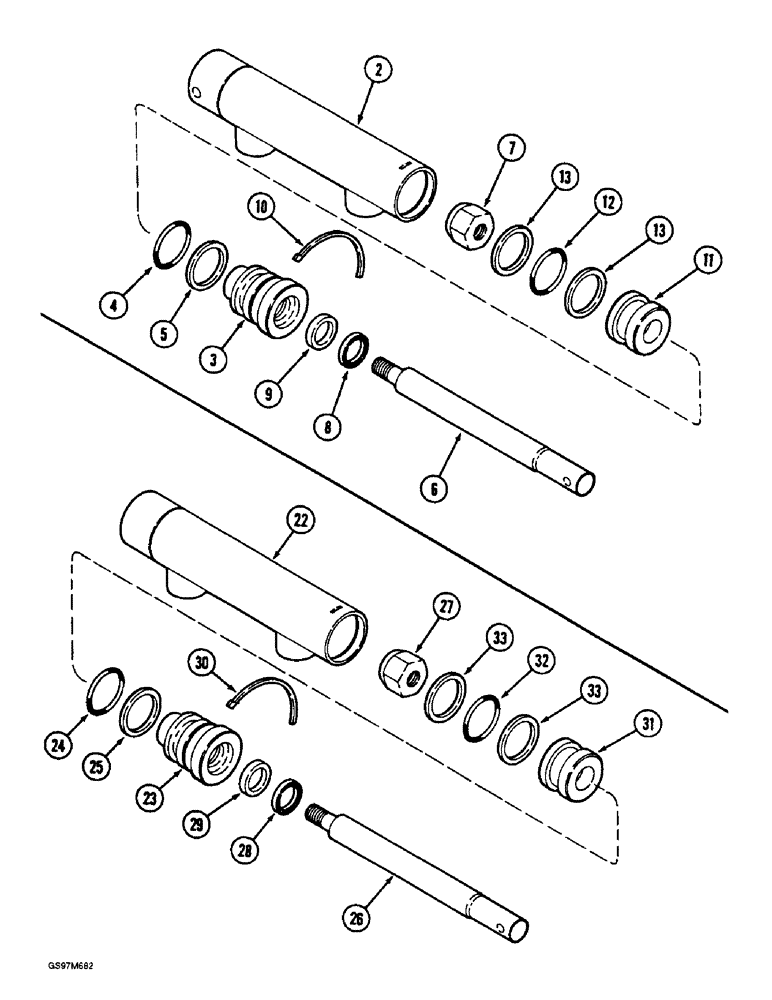

Запчасти Case IH 1660 (8-116) - FEEDER CLUTCH CYLINDER, SEPARATOR CLUTCH CYLINDER (07) - HYDRAULICS

133405C92

CYLINDER

ASSEMBLY - feeder clutch, 51 (2) ID x 63 mm (2-1/2 inch) stroke, Includes: Ref. 2 - 13 and kit

1шт.

87337239R

REMAN-HYD CYLINDER

1660 CASE IH AXIAL-FLOW COMBINE (S/N JJC0038346 & AFTER) (NORTH AMERICA), ASSEMBLY - feeder clutch, 51 (2) ID x 63 mm (2-1/2 inch) stroke, P.I.N. JJC0038346 AND AFTER (1/86-12/92), Reman for New PN 133405C92

1шт.

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 133405C92

1шт.

3

108641C1

GLAND

- cylinder, front

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch

1шт.

Part of seal kit P/N 63884C92

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92

1шт.

6

108639C1

PISTON ROD

ROD - piston, cylinder, order kit 63884C92

1шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod seal, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - retaining, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92

1шт.

11

108640C2

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, order kit 63884C92

1шт.

Part of seal kit P/N 63884C92

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 63884C92

2шт.

Part of seal kit P/N 63884C92

1шт.

63884C92

SEAL KIT

KIT - seal, Includes: Ref. 4, 5, 8, 9, 10, 12 and 13

1шт.

1346042C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - separator clutch, no longer available, order cylinder assembly 133408C92, Includes: Ref. 22 - 33 and kit

1шт.

Part number stamped on part.

1шт.

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSEMBLY - separator clutch, 51 (2) ID x 318 mm (12-1/2 inch) stroke, Includes: Ref. 22 - 33

1шт.

Part number stamped on part.

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly, separator clutch

1шт.

23

108641C1

GLAND

- cylinder, front, seperator clutch

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, order kit 63884C92, separator clutch cylinder

1шт.

Part of seal kit P/N 63884C92

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 63884C92, separator clutch cylinder

1шт.

Part of seal kit P/N 63884C92

1шт.

26

108639C1

PISTON ROD

ROD - piston, cylinder, used with cylinder assembly 133408C92, separator clutch cylinder

1шт.

26

1979793C1

PISTON ROD

ROD - piston, used with used with cylinder assembly 1346042C1, separator clutch cylinder

1шт.

27

232-41110

NUT,5/8"-11, GC

NUT, LOCK, , Separator clutch cylinder 5/8"-11, GC

1шт.

28

NSS

NOT SOLD SEPARAT

WIPER piston rod seal , order kit 63884C92, separator clutch cylinder

1шт.

Part of seal kit P/N 63884C92

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane, order kit 63884C92, separator clutch cylinder

1шт.

Part of seal kit P/N 63884C92

1шт.

30

NSS

NOT SOLD SEPARAT

WIRE - retaining, order kit 63884C92, separator clutch cylinder

1шт.

Part of seal kit P/N 63884C92

1шт.

31

108640C2

PISTON

- cylinder, separator clutch cylinder

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, order kit 63884C92, separator clutch cylinder

1шт.

Part of seal kit P/N 63884C92

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 63884C92, separator clutch cylinder

2шт.

Part of seal kit P/N 63884C92

1шт.

63884C92

SEAL KIT

KIT - seal, Includes Refs: 24, 25, 28, 29, 30, 32 and 33, separator clutch cylinder

1шт.
