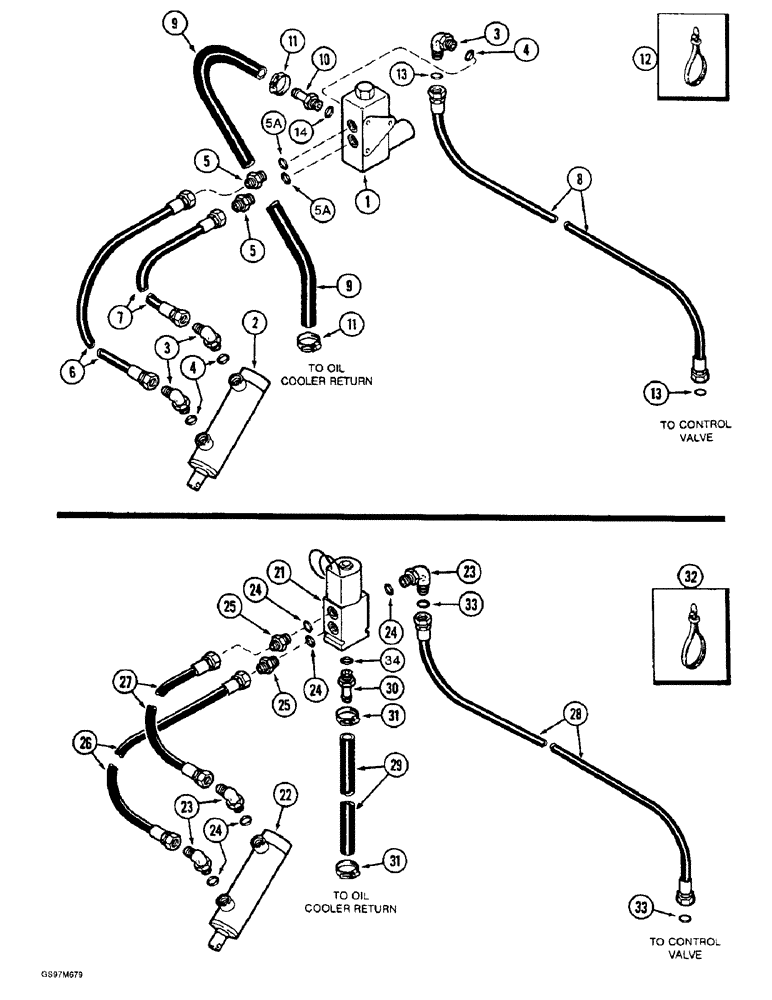

Запчасти Case IH 1660 (8-110) - SEPARATOR CLUTCH SYSTEM, P.I.N. JJC0103800 AND AFTER, CONTROL CONCEPTS (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch, parts list Figure 8-114

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, parts list Figure 8-116

1шт.

3

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face seal x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 4

3шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, 9/16-18 thread, Incl. Ref. 5A

2шт.

6

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

- Separator clutch disengage 9.52 mm ID x 535.00 mm

1шт.

7

1285380C2

HYDRAULIC HOSE

HOSE - separator clutch engage, 1270 mm (50 inch) long

1шт.

8

1541716C1

HOSE

- separator clutch pressure, 890 mm (35 inch) long

1шт.

9

NSS

NOT SOLD SEPARAT

HOSE - 9.5 (3/8) x 559 mm (22 inch) long, cut from bulk hose 180730C1 below

1шт.

10

178036C1

CONNECTOR, ELEC

ADAPTER - straight, special, 3/8 inch barb end x 9/16 inch PT

1шт.

11

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch, parts list Figure 8-114, modular controls

1шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, parts list Figure 8-116, modular controls

1шт.

23

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face seal x 9/16-18 inch adjustable O-ring boss, modular controls, Includes: Ref. 24

3шт.

25

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, modular controls, Incl. Ref. 25A

2шт.

26

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

- Separator clutch disengage, Modular controls 9.52 mm ID x 535.00 mm

1шт.

27

1285380C2

HYDRAULIC HOSE

HOSE - separator clutch engage, 1270 mm (50 inch) long, modular controls

1шт.

28

1541716C1

HOSE

- separator clutch pressure, 890 mm (35 inch) long, modular controls

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE - 9.5 (3/8) x 559 mm (22 inch) long, cut from bulk hose 180730C1 below, modular controls

1шт.

30

178036C1

CONNECTOR, ELEC

ADAPTER - straight, special, 3/8 inch barb end x 9/16 inch PT, modular controls

1шт.

31

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable, Modular controls #4, 0.25/0.62 Type M Worm

2шт.

32

702093C1

CABLE TIE

STRAP - tie, modular controls

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Modular controls -012, 90 Duro, .364" ID x .070" Thk

2шт.

364357C1

LARGE HOSE

HOSE - bulk, 15240 mm (600 inch) long, sold by the piece (Replaces hose 180730C1), modular controls

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

5a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Modular controls

3шт.

25a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Modular controls

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Modular controls

1шт.
