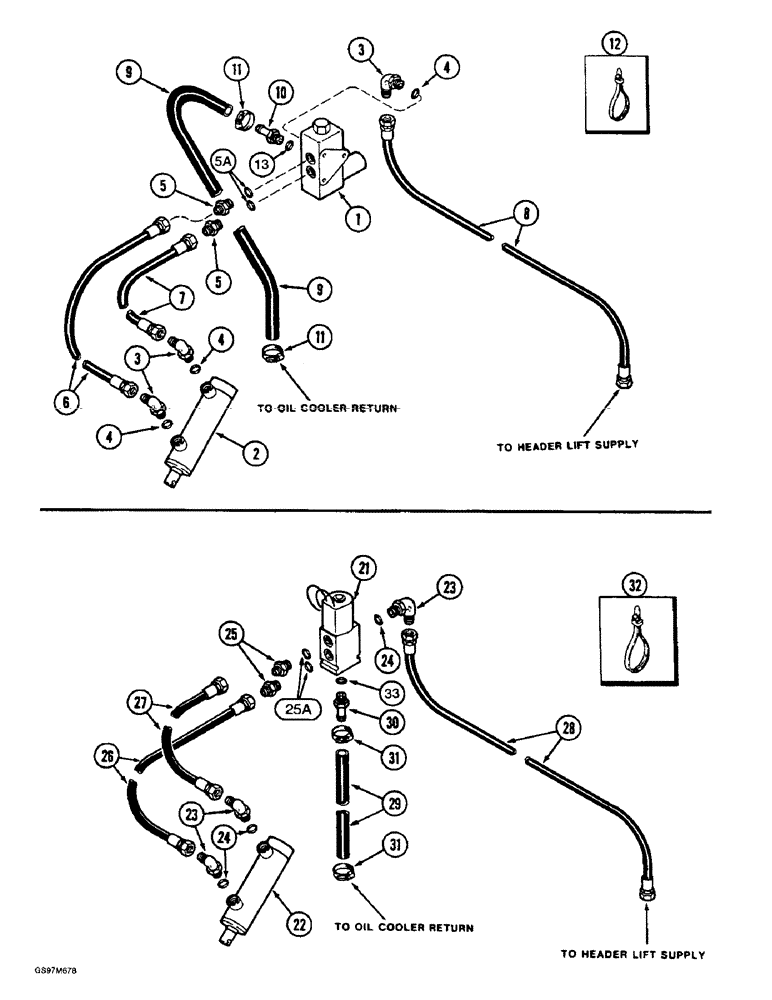

Запчасти Case IH 1660 (8-108) - SEPARATOR CLUTCH SYSTEM, PRIOR TO P.I.N. JJC0103800, CONTROL CONCEPTS (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch, parts list Figure 8-114

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, parts list Figure 8-116

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss, Includes: Ref. 4

3шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 5A

2шт.

6

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

- Separator clutch (Replaces hose 155309C91) 9.52 mm ID x 535.00 mm

1шт.

7

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE - separator clutch, 432 mm (17 inch) long

1шт.

8

1285380C2

HYDRAULIC HOSE

HOSE - separator clutch, 1270 mm (50 inch) long (Replaces hose 178961C1)

1шт.

9

NSS

NOT SOLD SEPARAT

HOSE - 9.5 (3/8) ID x 559 mm (22 inch) long, cut from bulk hose 180730C1 below

1шт.

10

178036C1

CONNECTOR, ELEC

ADAPTER - straight, special, 3/8 inch barb end x 9/16 inch PT

1шт.

11

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter

2шт.

12

702093C1

CABLE TIE

STRAP - tie

1шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch, parts list Figure 8-114, modular controls

1шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, parts list Figure 8-116, modular controls

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss, modular controls, Includes: Ref. 24

3шт.

25

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, modular controls, Incl. Ref. 25A

2шт.

26

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

- Separator clutch (Replaces hose 155309C91), Modular controls 9.52 mm ID x 535.00 mm

1шт.

27

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE - separator clutch, 432 mm (17 inch) long, modular controls

1шт.

28

1285380C2

HYDRAULIC HOSE

HOSE - separator clutch, 1270 mm (50 inch) long (Replaces hose 178961C1), modular controls

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE - 9.5 (3/8) ID x 559 mm (22 inch) long, cut from bulk hose 180730C1 below, modular controls

1шт.

30

178036C1

CONNECTOR, ELEC

ADAPTER - straight, special, 3/8 inch barb end x 9/16 inch PT, modular controls

1шт.

31

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter, modular controls

2шт.

32

702093C1

CABLE TIE

STRAP - tie, modular controls

1шт.

364357C1

LARGE HOSE

HOSE - bulk, 15240 mm (600 inch) long, sold by the piece (Replaces hose 180730C1), modular controls

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

5a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Modular controls

3шт.

25a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Modular controls

2шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Modular controls

1шт.
