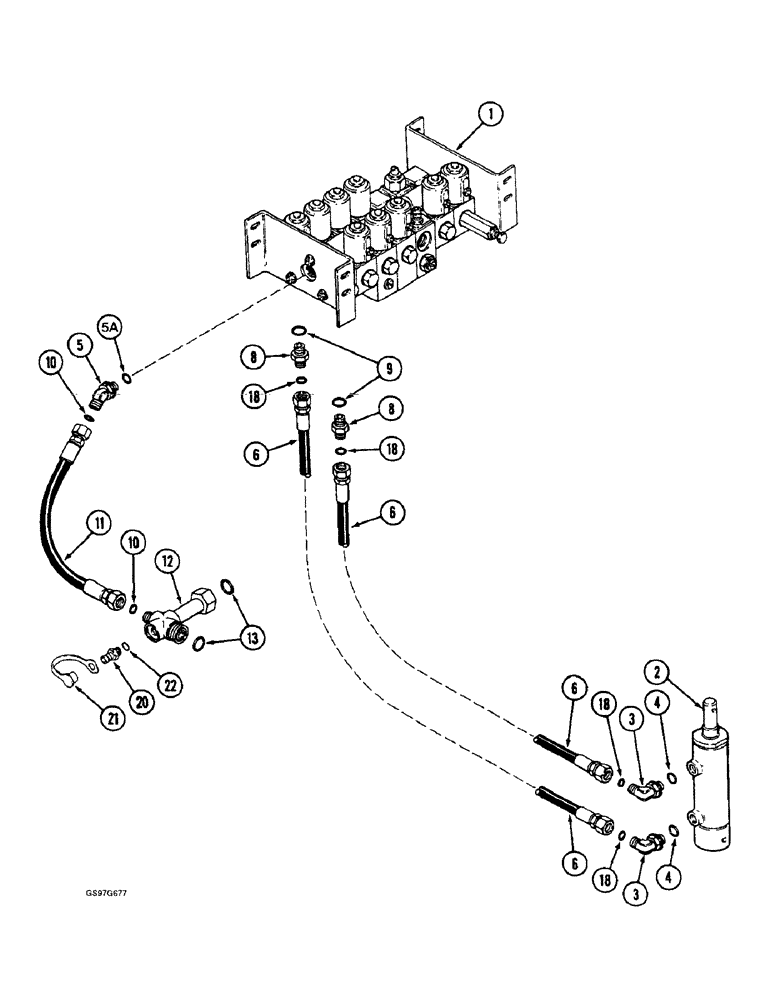

Запчасти Case IH 1660 (8-106) - FEEDER CLUTCH SYSTEM, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-058 or 8-062

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - feeder clutch, parts list Figure 8-116

1шт.

3

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face seal x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 4

2шт.

5

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45 degree, 13/16-16 face seal x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 5A

1шт.

6

1541793C1

HOSE

- feeder clutch cylinder, 3050 mm (120 inch) long

2шт.

8

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 9

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

1541573C2

HOSE ASSY.

HOSE - feeder clutch valve

1шт.

12

1541633C2

TEE

- special, feeder clutch valve

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

20

1541849C1

COUPLING

ASSEMBLY - diagnostic, Includes: Ref. 21 & 22

1шт.

21

H434163

DUST CAP

CAP - dust

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

5a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
