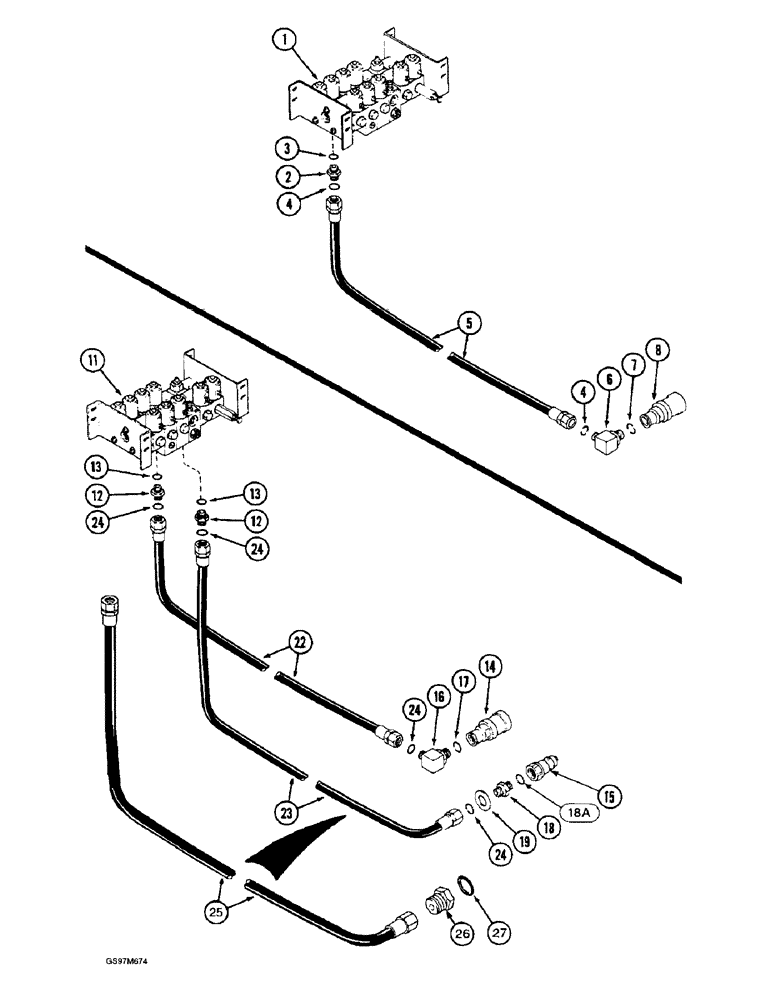

Запчасти Case IH 1660 (8-100) - REEL LIFT SYSTEM, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-058 or 8-062

1шт.

2

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

ADAPTER - straight, 11/16-16 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

1989470C1

HOSE

- reel lift, 2895 mm (114 inch) long

1шт.

6

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 11/16-16 face seal x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self-sealing female, parts list Figure 8-054

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-062, P.I.N. JJC0103800 and after

1шт.

12

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring boss, reel fore and aft system, P.I.N. JJC0103800 and after, Includes: Ref. 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Reel fore and aft system, P.I.N. JJC0103800 and after

2шт.

14

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self sealing female, parts list Figure 8-054, reel fore and aft system, P.I.N. JJC0103800 and after

1шт.

15

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY , 7/8 NF, Self-Sealing, Male, parts list Figure 8-054, reel fore and aft system, P.I.N. JJC0103800 and after

1шт.

16

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 11/16-16 face seal x 7/8-14 inch adjustable O-ring boss, reel fore and aft system, P.I.N. JJC0103800 and after, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Reel fore and aft system, P.I.N. JJC0103800 and after

2шт.

18

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

ADAPTER - straight, 11/16-16 face seal x 7/8-14 inch O-ring boss, used with hose 1989471C1, item 23, reel fore and aft system, P.I.N. JJC0103800 and after, Includes: Ref. 18A

1шт.

18a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Reel fore and aft system, P.I.N. JJC0103800 and after

2шт.

19

1541792C1

WASHER

WASHER - lock, red, special, reel fore and aft system, P.I.N. JJC0103800 and after

1шт.

22

1989470C1

HOSE

- reel lift, 2895 mm (114 inch) long, reel fore and aft system, P.I.N. JJC0103800 and after

1шт.

23

1989471C1

HOSE

- reel aft, 3810 mm (150 inch) long, no longer available, order hose 258309A1 and adapter 196443A1, items 25 and 26, reel fore and aft system, P.I.N. JJC0103800 and after

1шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Reel fore and aft system, P.I.N. JJC0103800 and after -012, 90 Duro, .364" ID x .070" Thk

4шт.

25

258309A1

HOSE,6.35mm ID x 3825mm L

- reel aft, 3825 mm (150-1/2 inch) long, reel fore and aft system, P.I.N. JJC0103800 and after

1шт.

26

196443A1

REDUCER

ADAPTER - straight, special, 7/16-20 female x 7/8-14 inch O-ring boss, reel fore and aft system, P.I.N. JJC0103800 and after, Includes: Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Reel fore and aft system, P.I.N. JJC0103800 and after

1шт.
