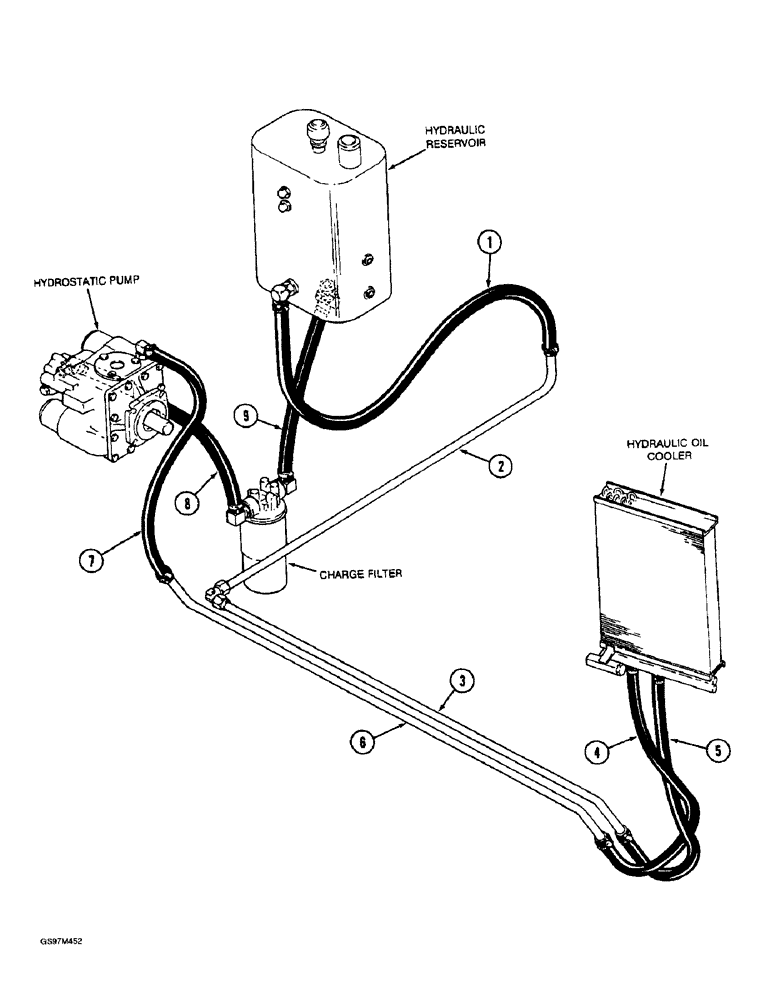

Запчасти Case IH 1660 (1-22) - PICTORIAL INDEX, OIL COOLER SYSTEM, CORN AND GRAIN (00) - PICTORIAL INDEX

1

Reservoir to Cooler Hose, 8-19

1шт.

2

Reservoir to Cooler Upper Tube, 8-19

1шт.

3

Reservoir to Cooler Lower Tube, 8-19

1шт.

4

Oil Cooler Supply Hose, 8-19

1шт.

5

Oil Cooler Return Hose, 8-19

1шт.

6

Pump to Cooler Tube, 8-19

1шт.

7

Pump to Cooler Hose, 8-19

1шт.

8

Charge Pump Suction Hose, 8-11

1шт.

9

Filter to Reservoir Hose, 8-11

1шт.
