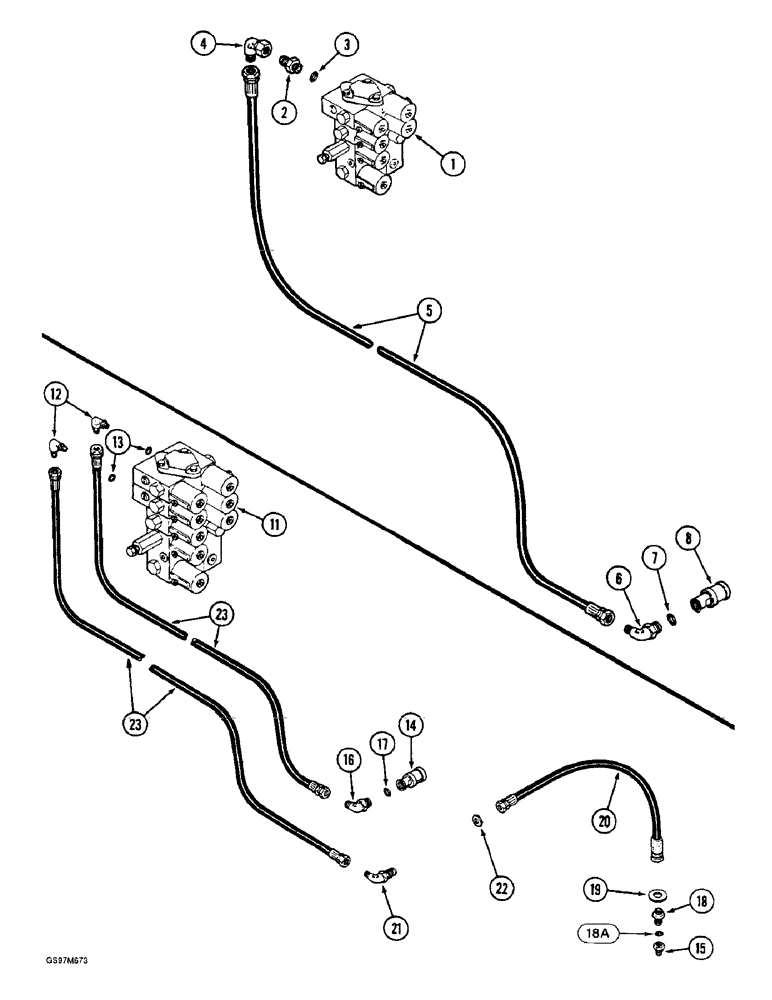

Запчасти Case IH 1660 (8-098) - REEL LIFT SYSTEM, PRIOR TO P.I.N. JJC0103800 (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-060

1шт.

2

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

5

1321591C1

HOSE

- reel lift, 2400 mm (94-1/2 inch) long

1шт.

Prior to P.I.N. JJC0039757.

1шт.

5

1284291C1

HYDRAULIC HOSE

- reel lift, 2413 mm (95 inch) long

1шт.

P.I.N. JJC0039757 through JJC0103799.

1шт.

6

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16-18 flare x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self-sealing female, parts list Figure 8-054

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-060, prior to P.I.N. JJC0103800

1шт.

12

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss, prior to P.I.N. JJC0103800, Incl. Ref. 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Prior to P.I.N. JJC0103800

2шт.

14

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self sealing female, parts list Figure 8-054, prior to P.I.N. JJC0103800

1шт.

15

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY , 7/8 NF, Self-Sealing, Male, parts list Figure 8-054, prior to P.I.N. JJC0103800

1шт.

16

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16-18 flare x 7/8-14 inch adjustable O-ring boss, prior to P.I.N. JJC0103800, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Prior to P.I.N. JJC0103800

1шт.

18

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Prior to P.I.N. JJC0103800, Includes: Ref. 18A

1шт.

18a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Prior to P.I.N. JJC0103800

1шт.

19

3061127R1

THRUST WASHER

- red (Replaces washer 1327631C1), prior to P.I.N. JJC0103800

1шт.

20

1327608C1

HOSE

- 1040 mm (40-15/16 inch) long

1шт.

Prior to P.I.N. JJC0039757.

1шт.

20

1254526C2

HOSE ASSY.

HOSE - 3429 mm (135 inch) long

1шт.

P.I.N. JJC0039757 through JJC0103799.

1шт.

21

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 90 degree, 9/16-18 inch flare x bulkhead flare, prior to P.I.N. JJC0103800

1шт.

22

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF, prior to P.I.N. JJC0103800

1шт.

23

1321591C1

HOSE

- 2400 mm (94-1/2 inch) long

2шт.

Prior to P.I.N. JJC0039757.

1шт.

23

1284291C1

HYDRAULIC HOSE

- 2413 mm (95 inch) long

2шт.

P.I.N. JJC0039757 through JJC0103799.

1шт.
