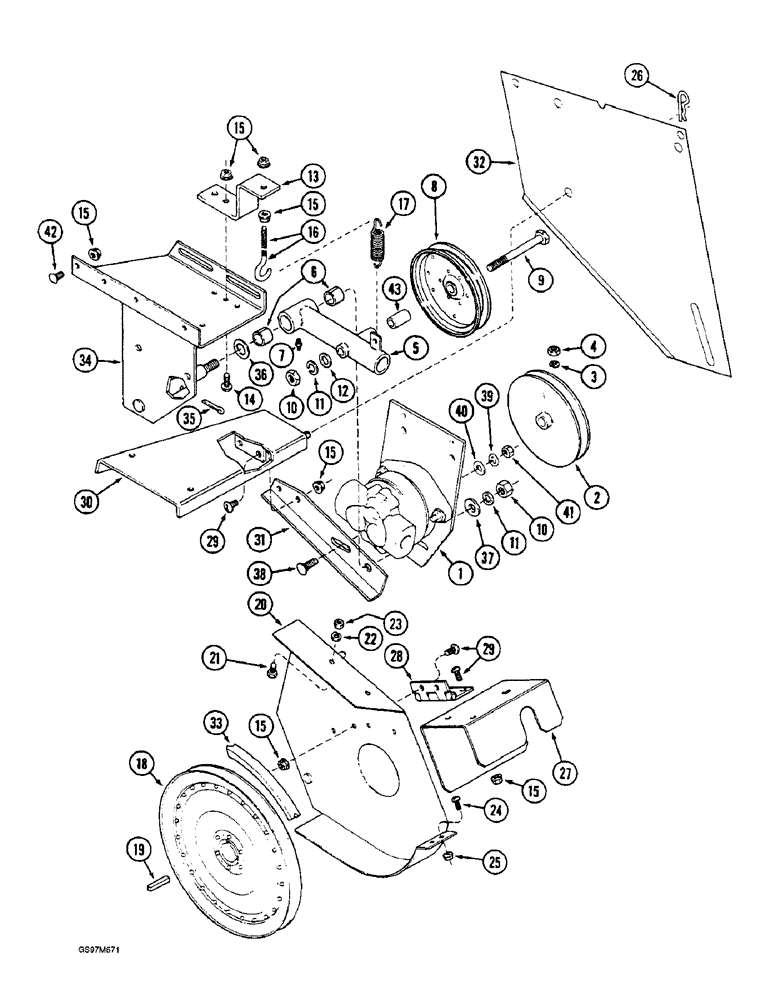

Запчасти Case IH 1660 (8-094) - REEL PUMP DRIVE, P.I.N. JJC0039130 THROUGH JJC0103066 (07) - HYDRAULICS

1

1272640C91

HYDRAULIC PUMP,46.7 CC

PUMP ASSEMBLY - reel drive, parts list Figure 8-126

1шт.

2

1330177C2

PULLEY

- pump driven, 127 mm (5 inch) OD

1шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

1321612C92

LEVER ASSY.

ARM - pump tightener, for 1194 mm (47 inch) feeder, used with 127 mm (5 inch) pulley

1шт.

5

1979653C1

ARM

ASSEMBLY - pump tightener, for 1194 mm (47 inch) feeder, used with 171 mm (6-3/4 inch) pulley, Includes: Ref. 6

1шт.

5

1979598C1

LEVER

ARM ASSEMBLY - pump tightener, for 1384 mm (54-1/2 inch) feeder, Includes: Ref. 6

1шт.

6

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

- tightener arm

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

8

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

- drive tightener, 171 mm (6-3/4 inch) OD

1шт.

9

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

13

1321687C1

BRACKET

SUPPORT - spring adjusting bolt

1шт.

15

231-5146

FLANGE NUT,3/8"-16

14шт.

16

1315487C1

BOLT,3/8" - 16 x 205mm

EYEBOLT - spring tightener

1шт.

17

398763R2

SPRING

- tightener

1шт.

18

1330403C1

PULLEY

- feeder jackshaft pump drive, 345 mm (13-1/2 inch) OD

1шт.

19

Q1497

KEY,Gib, 3/8" Sq x 2"

- square gib, 3/8 x 2 inch

1шт.

20

1345353C1

GUARD ASSY.

SHIELD - reel drive pulley

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

24

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

26

480523R1

HAIR PIN COTTER

5шт.

27

1321848C3

GUARD

SHIELD - feeder jackshaft, left-hand, no longer available, order shield 134357C1, hinge 1345199C1, bolt 413-472 and nut 232-4114, items 27, 28, 43 and 44 on Figure 8-096

1шт.

28

10810R

HINGE

- shield

1шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

6шт.

30

1321648C1

SUPPORT

- shield lower rear

1шт.

31

1321651C1

SUPPORT

- pivot lower

1шт.

32

1321889C2

SHIELD

SUPPORT - reel pump drive, for 1194 mm (47 inch) feeder

1шт.

32

1322444C1

SUPPORT

- reel pump drive, for 1384 mm (54-1/2 inch) feeder

1шт.

33

1979606C1

V-BELT,16.00 mm W x 1480.85 mm L

Reel drive, for 1194 mm (47 inch) feeder 16.00 mm W x 1480.85 mm L

1шт.

33

1330311C1

V-BELT,1828.65 mm L

Reel Drive, for 1384 mm 54-1/2 Inch Feeder 1828.65 mm L

1шт.

34

1315494C1

SUPPORT

- reel pump pivot

1шт.

35

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

36

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

1шт.

37

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

1шт.

38

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

2шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

40

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

41

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

42

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

43

478061R1

SPACER,1/2" X-Strng Pipe x 3 1/16"

- crank adjuster

1шт.

14

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
