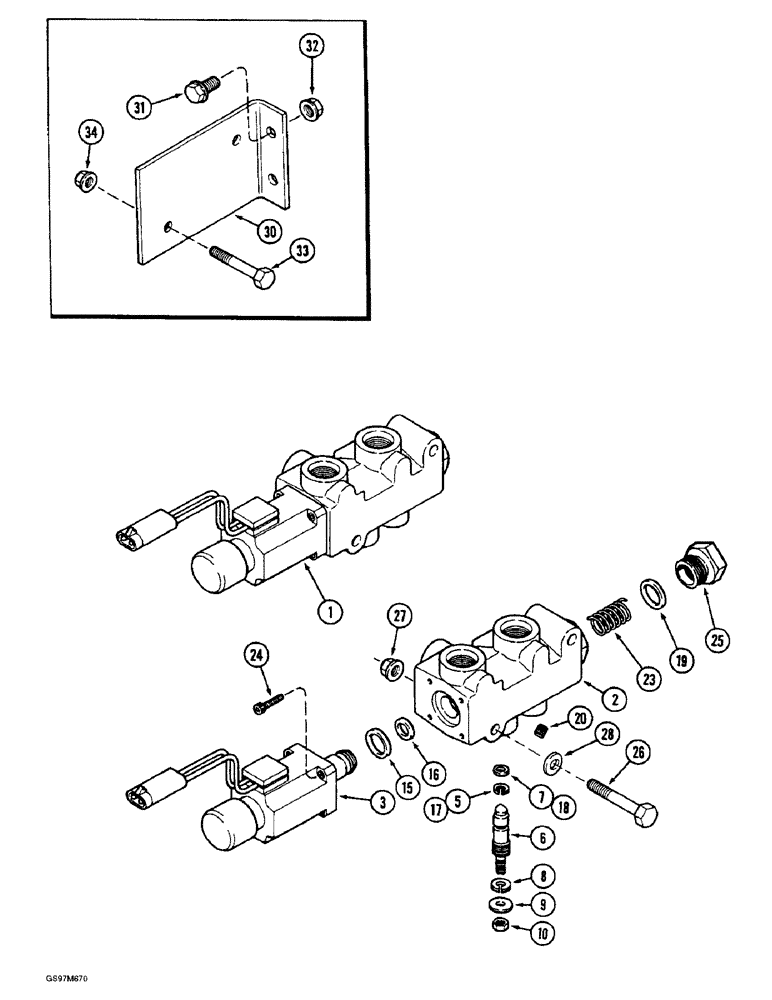

Запчасти Case IH 1660 (8-092) - REEL DRIVE VALVE, VALVE MOUNTING (07) - HYDRAULICS

1

1272619C93

VALVE

ASSEMBLY - reel drive, Includes: Ref. 2 - 25

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 1272619C93

1шт.

3

92669C2

SOLENOID SWITCH

SOLENOID - switch

1шт.

92670C1

KIT

- service, manual override, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - backup, order kit 92670C1

1шт.

6

NSS

NOT SOLD SEPARAT

PINTLE - manual override, order kit 92670C1

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - pintle, order kit 92670C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, order kit 92670C1

1шт.

9

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

10

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex jam, 1/4 inch NF

1шт.

92671C1

KIT

- service, valve, small parts, Includes: Ref. 15 - 25

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - solenoid, order kit 92671C1

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - solenoid, order kit 92671C1

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - override backup, order kit 92671C1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - override, order kit 92671C1

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - spool cap, order kit 92671C1

1шт.

20

NSS

NOT SOLD SEPARAT

ORIFICE - valve, order kit 92671C1

2шт.

23

NSS

NOT SOLD SEPARAT

SPRING - spool, order kit 92671C1

1шт.

24

NSS

NOT SOLD SEPARAT

BOLT - solenoid, order kit 92671C1

4шт.

25

NSS

NOT SOLD SEPARAT

PLUG - spool, order kit 92671C1

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

28

495-81123

WASHER,0.34" ID x 1.75" OD x 0.18" Thk

- flat, 11/32 x 1-3/4 x 11/64 inch

2шт.

30

1322417C2

SUPPORT

- valve, mounting, prior to P.I.N. JJC00103800

1шт.

31

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch, Valve mounting, prior to P.I.N. JJC00103800

2шт.

32

231-5146

FLANGE NUT,3/8"-16

Valve mounting, prior to P.I.N. JJC00103800 Flg, USR, 3/8"-16

2шт.

33

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch, Valve mounting, prior to P.I.N. JJC00103800

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, valve mounting, prior to P.I.N. JJC00103800

2шт.
