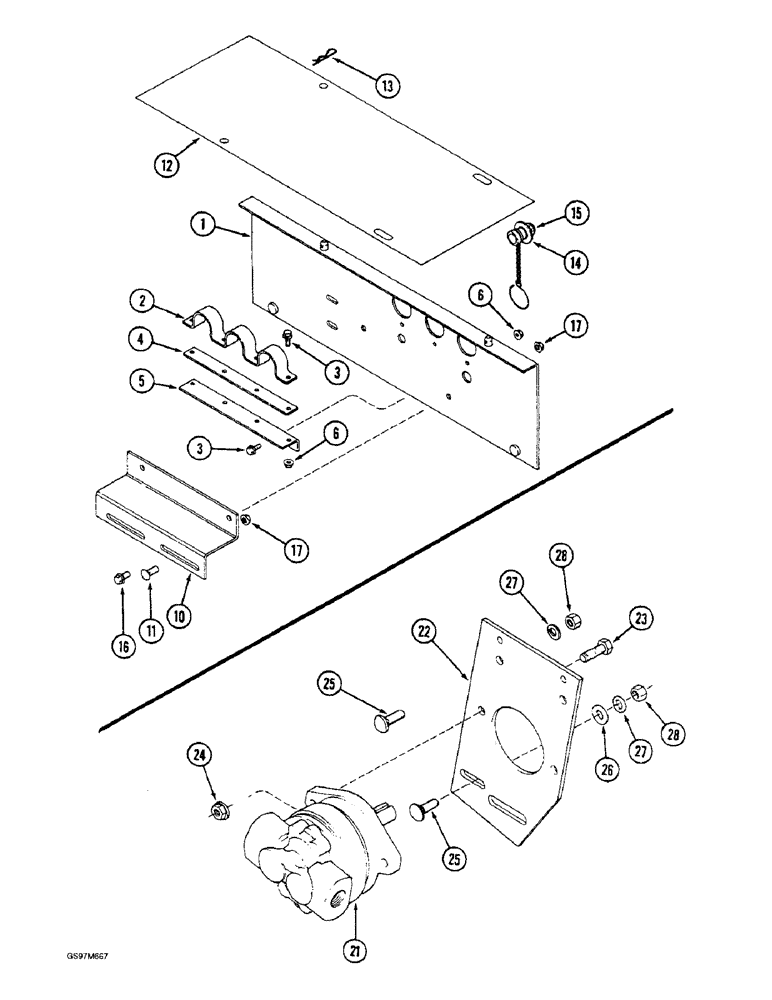

Запчасти Case IH 1660 (8-086) - REEL DRIVE, PRIOR TO P.I.N. JJC0103800, COUPLING MOUNTING (07) - HYDRAULICS

1

1327586C2

GUARD

BRACKET - feeder coupling, for 1194 mm (47 inch) feeder

1шт.

Prior to P.I.N. JJC0040115.

1шт.

1

1979811C1

SUPPORT

BRACKET - feeder coupling, for 1194 mm (47 inch) feeder

1шт.

P.I.N. JJC0040115 through JJC0103799.

1шт.

1

1321909C1

BRACKET

- feeder coupling, for 1384 mm (54-1/2 inch) feeder

1шт.

Prior to P.I.N. JJC0040115.

1шт.

1

1979812C1

SUPPORT

BRACKET - feeder coupling, for 1384 mm (54-1/2 inch) feeder

1шт.

P.I.N. JJC0040115 through JJC0103799.

1шт.

2

1321990C1

CLAMP

- coupling

1шт.

3

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

6шт.

4

1327582C1

PLATE

SPACER - spacer

1шт.

5

1321989C2

SUPPORT

- coupling

1шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

10

1327585C1

SUPPORT

- coupling bracket lower

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

12

1327604C1

PLATE

- top, left-hand, for 1194 mm (47 inch) feeder

1шт.

12

1322350C1

PLATE

- coupling cover, left-hand, for 1384 mm (54-1/2 inch) feeder

1шт.

13

480523R1

HAIR PIN COTTER

4шт.

14

1954133C1

PLUG

PLUG ASSEMBLY - coupling, dust

1шт.

15

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- dust plug

1шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

17

231-5146

FLANGE NUT,3/8"-16

4шт.

21

1272640C91

HYDRAULIC PUMP,46.7 CC

PUMP ASSEMBLY - reel drive, parts list Figure 8-126, mounting

1шт.

22

1979555C1

SUPPORT

PLATE - pump mounting, prior to P.I.N. JJC0103067

1шт.

22

1315486C1

PLATE

- pump mounting, P.I.N. JJC0103067 through P.I.N. JJC0103799

1шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Pump mounting Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

24

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Models with cross flow cleaning system Flg, USR, 1/2"-13

2шт.

25

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch, models with cross flow cleaning system

3шт.

26

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, models with cross flow cleaning system

1шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Models with cross flow cleaning system 1/2"

3шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Models with cross flow cleaning system 1/2"-13, G5

3шт.
