Запчасти Case IH 1660 (8-084) - REEL DRIVE SYSTEM, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS

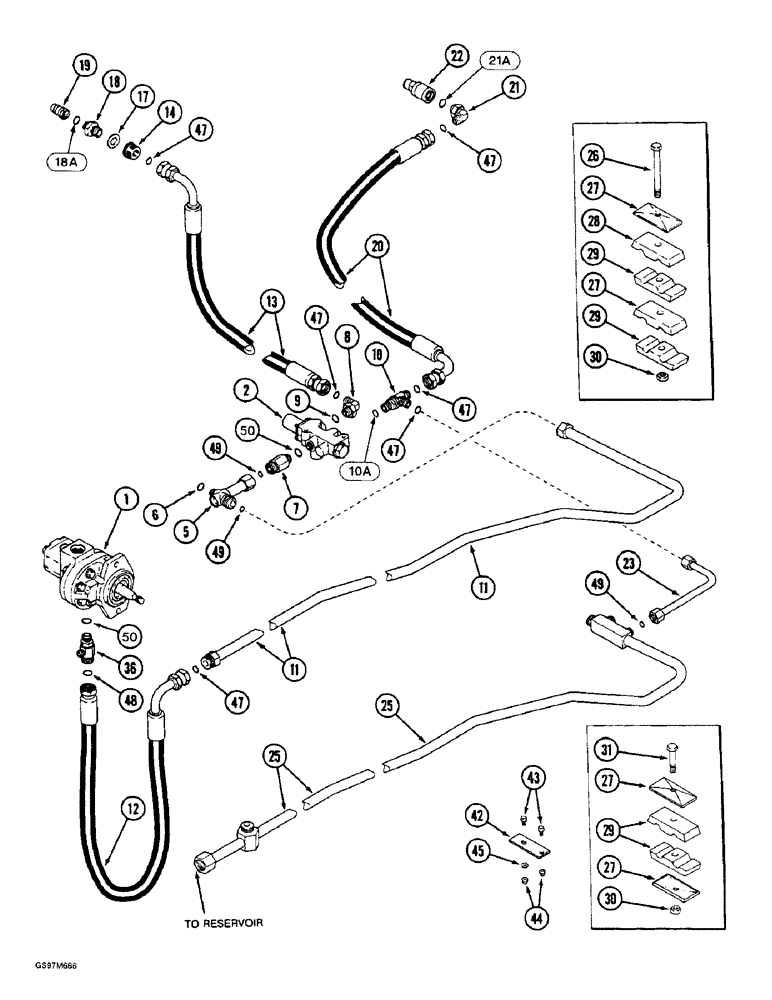

Схема запчастей Case IH 1660 - (8-084) - REEL DRIVE SYSTEM, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS
19
13
49
27
9
10a
11
12
45
27
23
28
47
47
20
26
49
49
21
31
6
14
25
36
22
1
21a
10
27
48
47
5
42
47
43
18
11
30
38
50
29
18a
47
7
8
29
29
2
47
50
27
44
25
17

Артикул

Название

Примечание

Количество

1

1994653C2

PUMP

ASSEMBLY - reel drive, parts list Figure 8-090

1шт.

1994653C2R

REMAN-HYD PUMP

1660 S/N JJC0038346 & Aft., Reel Drive System P.I.N. JJC0103800 & Aft. (1/86 - 12/92)

1шт.

1994653C2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

1272619C93

VALVE

ASSEMBLY - reel drive, parts list Figure 8-092

1шт.

5

1541633C2

TEE

- special, feeder clutch valve

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

1541634C1

VALVE

- relief, pressure regulator

1шт.

8

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-14 face seal x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

- 1-14 face branch x face x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 10A

1шт.

10a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

1541753C2

HYD TUBE,0.75" OD, 2225, 367 mm Length

TUBE - reel drive valve supply

1шт.

12

1980050C2

HOSE,15.88mm ID x 737mm L

- reel pump to valve, 737 mm (29 inch) long

1шт.

13

258308A1

HOSE,12.7mm ID x 3470mm L

- reel motor supply, 3470 mm (136-5/8 inch) long (Replaces hose 1989495C1)

1шт.

14

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID

1шт.

17

1345266C1

WASHER

- lock, white, special

1шт.

18

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 18A 1"-14 ORFS x 7/8"-14 ORB

1шт.

18a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY , 7/8 NF, Self-Sealing, Male, parts list Figure 8-054

1шт.

20

1989496C1

HOSE

- reel drive motor return, 2605 mm (102-1/2 inch) long

1шт.

21

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-14 face seal x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 21A

1шт.

21a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self sealing female, parts list Figure 8-054

1шт.

23

1989476C1

HYD TUBE

TUBE - reel drive return

1шт.

25

1989283C1

HYD TUBE

TUBE - valve return

1шт.

26

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

- hex, 5/16 NC x 4 inch, grade 2

1шт.

27

1347127C1

PLATE

- clamp

4шт.

28

1347072C1

CLAMP

- 3/4 inch OD

1шт.

29

1541538C1

CLAMP

- two-piece (Replaces clamp 1989362C1)

3шт.

30

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

31

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

36

1541827C1

TEE

- separator clutch, special

1шт.

42

196868C2

SUPPORT

PLATE - support

1шт.

43

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

45

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

47

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

48

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

49

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.
