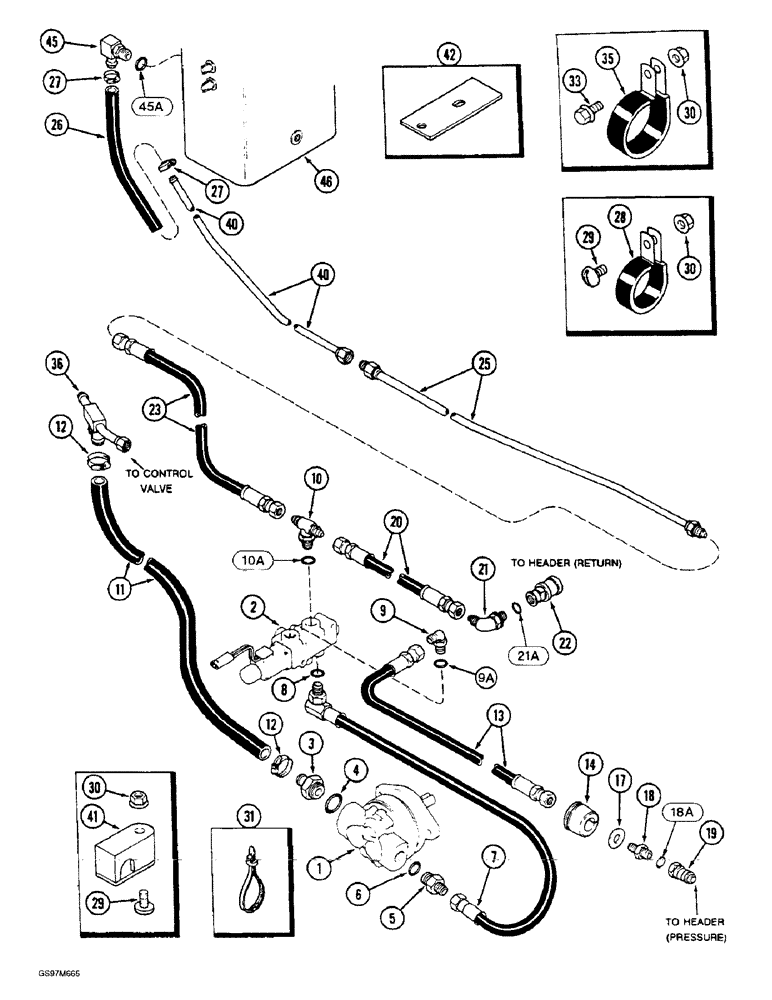

Запчасти Case IH 1660 (8-082) - REEL DRIVE SYSTEM, P.I.N. JJC0103067 THROUGH JJC0103799 (07) - HYDRAULICS

1

1272640C91

HYDRAULIC PUMP,46.7 CC

PUMP ASSEMBLY - reel drive, parts list Figure 8-126

1шт.

2

1272619C93

VALVE

ASSEMBLY - reel drive, parts list Figure 8-092

1шт.

3

1282383C1

FITTING,1-5/8" - 12 ORB x

- beaded tube, 1 inch ID hose

1шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

- pump pressure, 900 mm (35 inch) long

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 9A

1шт.

9a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch adjustable O-ring branch x flare x flare, Includes: Ref. 10A

1шт.

10a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

1322376C1

LARGE HOSE,25.4mm ID x 2500mm L

HOSE - reel drive suction, 2500 mm (98-7/16 inch) long

1шт.

12

214-1524

HOSE CLAMP,#24, 1.06" - 2", Type F Worm, W/ Liner

CLAMP - adjustable, 1-1/16 - 2 inch diameter, Type F

2шт.

13

1254574C2

HYDRAULIC HOSE

HOSE - reel drive pressure, 1525 mm (60 inch) long

1шт.

14

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID

1шт.

17

1345266C1

WASHER

- lock, white, special

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 18A 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

18a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY, 7/8 NF, Self-Sealing, Male, parts list Figure 8-054

1шт.

20

1327616C1

HOSE

- reel drive return, 5/8 inch ID, steering return and reel drive suction

1шт.

20

1327579C1

HOSE

- return, 330 mm (13 inch) long

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adjustable O-ring boss, Incl. Ref. 21A

1шт.

21a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self sealing female, parts list Figure 8-054

1шт.

23

1327576C1

HOSE

- return, 2108 mm (82 inch) long

1шт.

25

1322386C1

PIPE

TUBE - reel drive return, front

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE - return, 457 mm (18 inch), cut from bulk hose S118576X below

1шт.

27

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

28

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

30

231-5146

FLANGE NUT,3/8"-16

12шт.

31

306132C1

CABLE TIE,14.5" L

STRAP - tie, 356 mm (14 inch) long

1шт.

33

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

35

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

3шт.

36

1310757C1

TUBE

- manifold, header lift and steering return

1шт.

40

196746C1

HYD TUBE

TUBE - reel drive return

1шт.

41

183822C1

CLAMP

- single

3шт.

42

196868C2

SUPPORT

PLATE - support

1шт.

45

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 5/8" Hose x 1 1/16"-12 ORB Beaded, Includes Ref. 45A

1шт.

45a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

46

1301237C92

RESERVOIR

ASSEMBLY - hydraulic oil, parts list Figure 8-002

1шт.

S118576X

LARGE HOSE,15.88mm ID x 7620mm L

HOSE - bulk, rubber, 7620 mm (300 inch) long

1шт.
