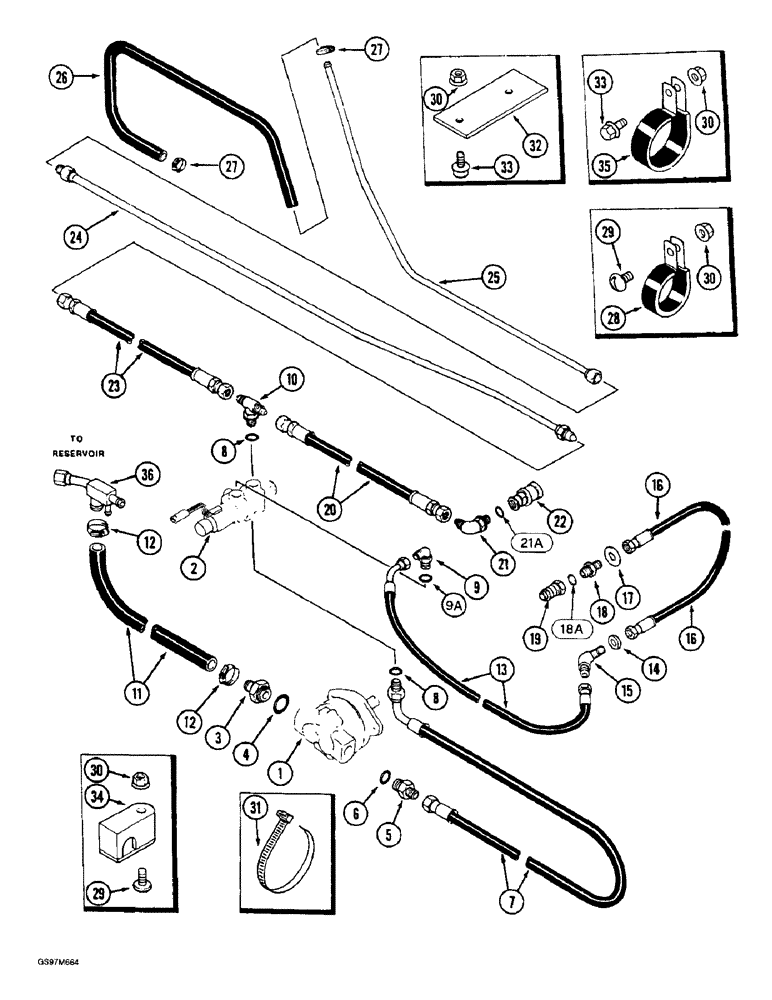

Запчасти Case IH 1660 (8-080) - REEL DRIVE SYSTEM, PRIOR TO P.I.N. JJC0103067 (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1272640C91
HYDRAULIC PUMP,46.7 CC
PUMP ASSEMBLY - reel drive, parts list Figure 8-126
1шт.
2
1272619C93
VALVE
ASSEMBLY - reel drive, parts list Figure 8-092
1шт.
3
1282383C1
FITTING,1-5/8" - 12 ORB x
- beaded tube, 1 inch ID hose
1шт.
4
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
20-1, 90 Duro, 1.475" ID x .118" Thk
1шт.
5
218-5063
HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 6
1шт.
6
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
7
1315460C1
HOSE,12.7mm ID x 900mm L, SAE 100R7
- reel pump pressure, 900 mm (35 inch) long
1шт.
8
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
2шт.
9
218-5121
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB
- 90 degree, 3/4-16 flare x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 9A
1шт.
9a
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
10
218-5184
TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 7/8-14 inch adjustable O-ring branch x flare x flare
1шт.
11
1322376C1
LARGE HOSE,25.4mm ID x 2500mm L
HOSE - reel drive suction, 2500 mm (98-7/16 inch) long
1шт.
12
214-1416
HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm
CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm
2шт.
13
1254574C2
HYDRAULIC HOSE
HOSE - hydraulic, 1525 mm (60 inch) long
1шт.
14
218-1255
BHD LOCK NUT,Blkhd, 3/4"-16
NUT, LOCK, Blkhd, 3/4"-16
1шт.
15
1321284C1
FITTING
UNION - bulkhead, 45 degree
1шт.
16
1327580C1
HOSE
- reel drive header pressure, 1040 mm (40-5/16 inch) long, Serial Range: feeder-header
1шт.
17
1345266C1
WASHER
- lock, white, special
1шт.
18
HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB
Adapter, straight, O-ring boss, Incl. Ref 18A 3/4"-16, 37º x 7/8"-14, O-Ring
1шт.
18a
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
19
QUICK MALE COUPLING
COUPLING ASSEMBLY, 7/8 NF, Self-Sealing, Male, parts list Figure 8-054
1шт.
20
1327616C1
HOSE
- reel drive return, 5/8 inch ID x inch steering return and reel drive suction
1шт.
20
1327579C1
HOSE
- reel drive return, 330 mm (13 inch) long, for 1384 mm (54-1/2 inch) feeder
1шт.
21
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 90 degree, 7/8-14 inch flare x adjustable O-ring boss, Incl. Ref. 21A
1шт.
21a
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
22
1282338C91
COUPLING, QUICK, FEM
COUPLING ASSEMBLY - self sealing female, parts list Figure 8-054
1шт.
23
1327576C1
HOSE
- return, 2108 mm (82 inch) long
1шт.
24
1322386C1
PIPE
TUBE - reel drive return, front
1шт.
25
196746C1
HYD TUBE
TUBE - reel drive return, rear
1шт.
26
NSS
NOT SOLD SEPARAT
HOSE - 16 (5/8) ID x 457 mm (18 inch) long, cut from bulk hose S118576X below
1шт.
27
214-1412
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
CLAMP, HOSE, #12, 0.69/1.25 Type F Worm
2шт.
28
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
P-type, Pressure hose 3/4", Insul, 3/8" Bolt
1шт.
29
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch
3шт.
30
231-5146
FLANGE NUT,3/8"-16
12шт.
31
306132C1
CABLE TIE,14.5" L
STRAP - tie, 356 mm (14 inch) long, nylon
10шт.
32
1338281C1
BRACKET
SUPPORT - tube
1шт.
33
409-7612
BOLT,3/8"-16 x 1.09" OAL
- hex serrated flange, 3/8 NC x 3/4 inch
6шт.
34
183822C1
CLAMP
- return tubes
3шт.
35
515-25476
CLAMP,1 7/8", Insul, 1/2" Bolt
P-type, Suction hose 1 7/8", Insul, 1/2" Bolt
3шт.
36
1310757C1
TUBE
- manifold, steering return and reel drive suction
1шт.
S118576X
LARGE HOSE,15.88mm ID x 7620mm L
HOSE - bulk, 7620 mm (300 inch) long, sold by the piece
1шт.
Выбрано товаров: 41
