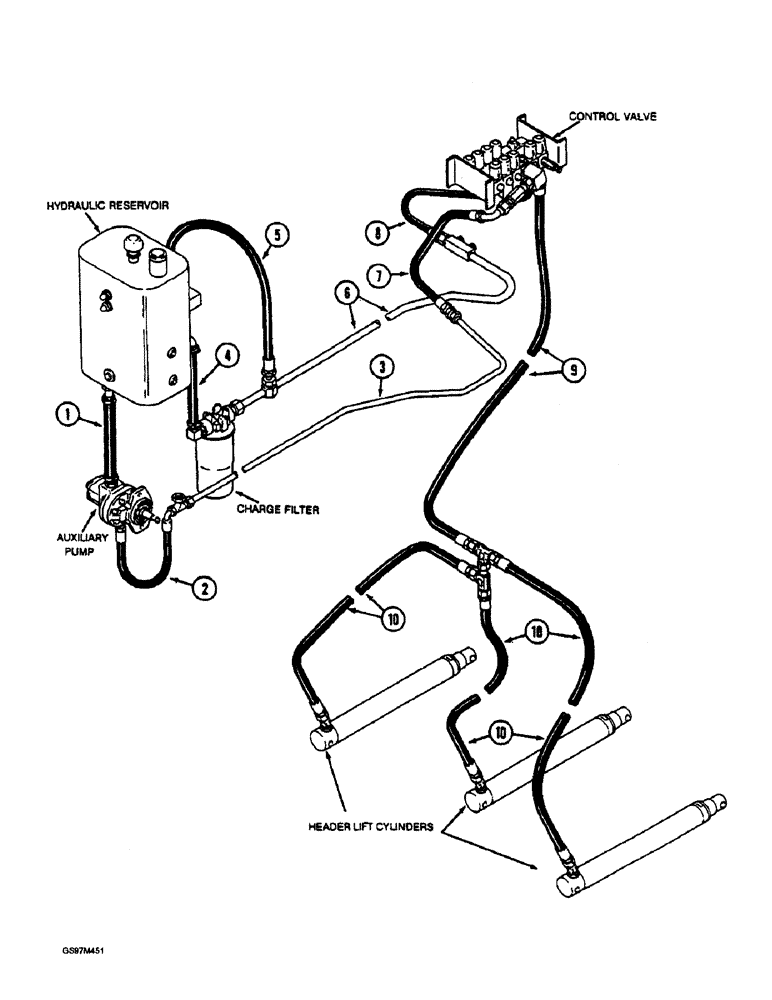

Запчасти Case IH 1660 (1-20) - PICTORIAL INDEX, HEADER LIFT HYDRAULICS (00) - PICTORIAL INDEX

1

Header Lift Suction Hose, 8-33

1шт.

2

Auxiliary Pump Pressure Hose, 8-33

1шт.

3

Header Lift Pressure Tube, 8-33

1шт.

4

Reservoir to Filter Return Hose, 8-37

1шт.

5

Relief Valve Drain Hose, 8-37

1шт.

6

Valve Return Tube, 8-37

1шт.

7

Lift Pressure Hose, 8-33

1шт.

8

Valve Drain Hose, 8-37

1шт.

9

Header Lift Cylinder Supply Hose, 8-49

1шт.

10

Header Lift Cylinder Hose, 8-49

1шт.
