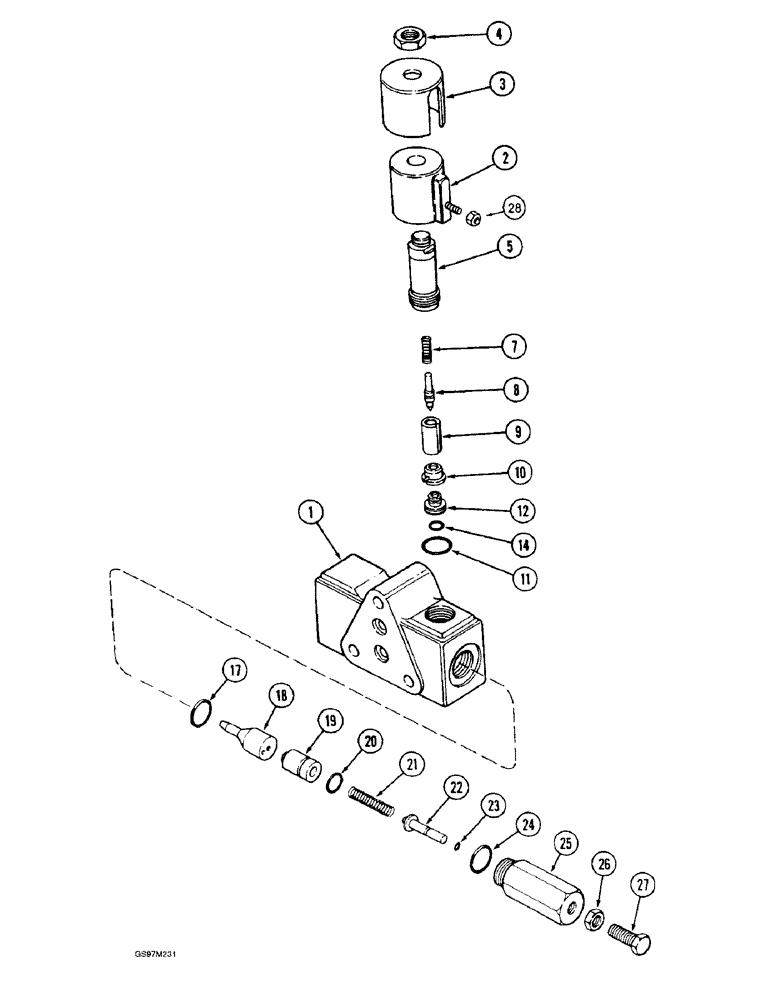

Запчасти Case IH 1660 (8-076) - HEADER LOWER VALVE, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS

234940A1

VALVE

ASSEMBLY - header lower, remanufactured, North America only, Includes: Ref. 1 - 28

1шт.

1542680C3

VALVE

ASSEMBLY - header lower, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 1542680C3

1шт.

2

1301730C1

VALVE

COIL - valve

1шт.

3

1301632C1

CAP

COVER - coil

1шт.

4

107825

NUT,Stamped, 1/2"-20

- hex, 1/2 inch NF

1шт.

5

1301627C3

SLEEVE

- poppet

1шт.

7

1301640C1

SPRING

- poppet

1шт.

8

1301647C1

POPPET

- valve

1шт.

9

1301648C1

ARMATURE

- valve

1шт.

10

1301624C1

BUSHING

- poppet

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

12

1301625C1

ORIFICE

- valve, used with remanufactured valve 234940A1

1шт.

12

1301639C1

PISTON

ORIFICE - valve, 0.055 inch opening, used with valve assembly 1542680C3

1шт.

14

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

17

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

1шт.

18

107951A3

VALVE POPPET

POPPET - lower, used with remanufactured valve 234940A1

1шт.

18

1301664C1

VALVE

POPPET - lower, used with valve assembly 1542680C3

1шт.

19

1301665C1

PISTON

POPPET - piston

1шт.

20

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

21

1301660C1

SPRING

- poppet

1шт.

22

107963A1

RETAINER

PLUNGER - adjusting

1шт.

23

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

107958A1

PLUG

- adjusting

1шт.

26

329-156

JAM NUT,Jam, 3/8"-24, G8

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

28

225-20210

NUT,#10-32, Brass

1шт.
