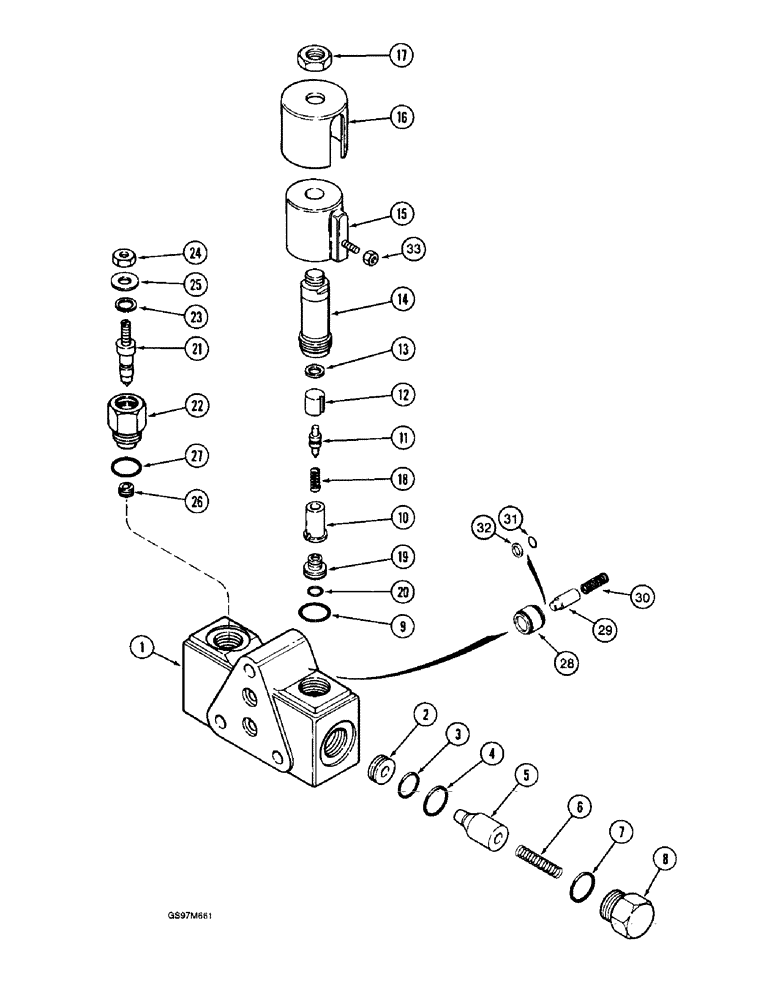

Запчасти Case IH 1660 (8-074) - HEADER LIFT VALVE, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS

1542679C2

VALVE

ASSEMBLY - header lift, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 1542679C2

1шт.

2

1301657C2

ORIFICE

- valve

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

4

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

2шт.

5

107956A1

VALVE POPPET

POPPET - piston

1шт.

6

1301660C1

SPRING

- poppet

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

1301661C1

PLUG

- hex

1шт.

9

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

10

1301646C2

BUSHING,6.35mm ID x 15.88mm OD x 25.8mm L

- poppet

1шт.

11

1301644C2

SPOOL

POPPET - valve

1шт.

12

1301643C1

VALVE

ARMATURE - valve

1шт.

13

1301642C1

WASHER

- spring retaining

1шт.

14

1301641C3

TRANSMISSION SLEEVE

SLEEVE - poppet

1шт.

15

1301730C1

VALVE

COIL - valve

1шт.

16

1301632C1

CAP

COVER - coil

1шт.

17

107825

NUT,Stamped, 1/2"-20

- hex, 1/2 inch NF

1шт.

18

1301821C1

SPRING

- poppet

1шт.

19

107965A1

PORT

ORIFICE - valve, 0.055 inch opening

1шт.

20

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

21

107953A1

NEEDLE

OVERRIDE - manual, includes O-ring and backup ring

1шт.

22

107955A1

PLUG

GUIDE - valve

1шт.

23

L31750

CIRCLIP,0.562", Int, #56

Ring, Snap, 0.562", Int, #56

1шт.

24

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex jam, 1/4 inch NF

1шт.

25

107969A1

WASHER

- flat, special

1шт.

26

107962A1

SEAT

- valve, no longer available

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Valve

1шт.

28

NSS

NOT SOLD SEPARAT

TUBE - through, order valve assembly

1шт.

29

107957A1

VALVE POPPET

POPPET - valve

1шт.

30

107959A1

SPRING

- poppet

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Backup -016, 90 Duro, .614" ID x .070" Thk

1шт.

32

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup

1шт.

33

225-20210

NUT,#10-32, Brass

1шт.
