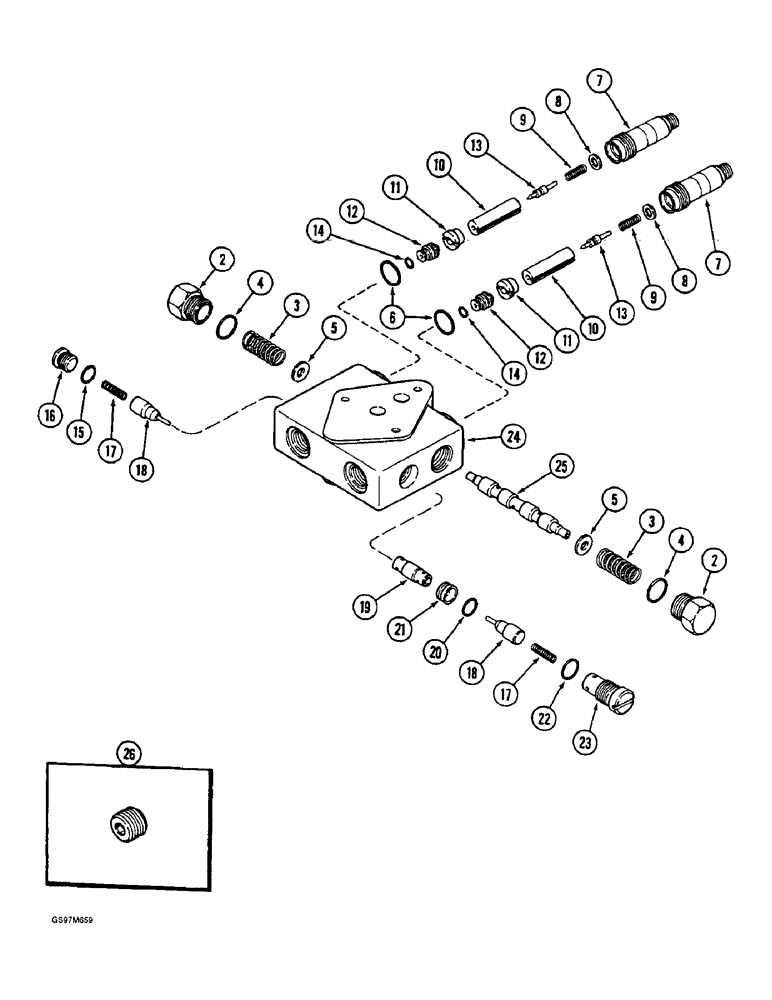

Запчасти Case IH 1660 (8-070) - DOUBLE PILOTED VALVE, FOR AUGER SWING AND REEL FORE/AFT (07) - HYDRAULICS

1267035C94

VALVE

ASSEMBLY - double piloted, no longer available, order valve assembly 124857A1, parts list Figure 8-071A, Includes: Ref. 2 - 26

1шт.

2

1301686C1

CAP

PLUG - hex, special

2шт.

3

1301689C1

SPRING

- spool

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

Part of valve seal kit P/N 1282278C2

1шт.

5

1301687C1

WASHER

- spring

2шт.

6

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

Part of valve seal kit P/N 1282278C2

1шт.

7

1301627C3

SLEEVE

- poppet

2шт.

8

1301642C1

WASHER

- spring retaining

2шт.

9

1301640C1

SPRING

- poppet

2шт.

10

1301648C1

ARMATURE

- valve

2шт.

11

1301624C1

BUSHING

- poppet

2шт.

12

1301625C1

ORIFICE

- valve

2шт.

13

1301647C1

POPPET

- valve

2шт.

14

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

16

1301670C1

PLUG

- valve, no longer available, order valve assembly 1986831C2, parts list Figure 8-071A

1шт.

17

1272887C1

SPRING

- poppet, no longer available, order valve assembly 1986831C2, parts list Figure 8-071A

2шт.

18

1267160C2

VALVE

POPPET - valve, no longer available, order valve assembly 1986831C2, parts list Figure 8-071A

2шт.

19

1267162C1

VALVE

SPOOL - shuttle

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Part of valve seal kit P/N 1282278C2

1шт.

21

1267163C1

WASHER

- valve, no longer available, order valve assembly 1986831C2, parts list Figure 8-071A

1шт.

22

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

Part of valve seal kit P/N 1282278C2

1шт.

23

1267164C1

FITTING

GUIDE - retainer

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - valve, order valve assembly

1шт.

26

1301637C1

ORIFICE

- valve

2шт.

1282278C2

SEAL KIT

KIT - valve seal, Includes: Ref. 4, 6, 15, 20 and 22

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Part of valve seal kit P/N 1282278C2

1шт.
