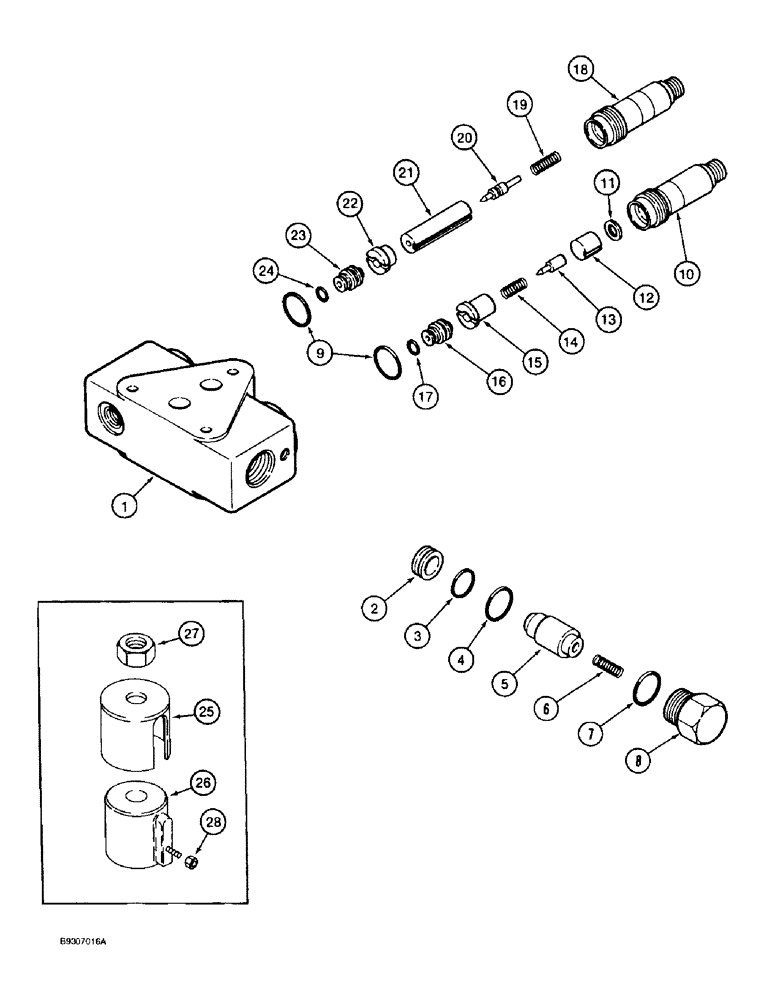

Запчасти Case IH 1660 (8-069A) - UNLOAD/SINGLE BI-DIRECTIONAL VALVE, FOR REEL LIFT (07) - HYDRAULICS

107981A3

VALVE

ASSEMBLY - unload/single bi-directional (Replaces valve assembly 1301652C91), Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 107981A3

1шт.

2

107966A1

SEAT

- poppet

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

4

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

1шт.

5

107970A1

VALVE POPPET

POPPET - valve

1шт.

6

107967A1

SPRING

- poppet

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

8

107968A1

PLUG

- end

1шт.

9

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

107972A1

VALVE

SOLENOID ASSEMBLY - valve, normally open, Includes: Ref. 10 - 17

1шт.

10

1301641C3

TRANSMISSION SLEEVE

SLEEVE - solenoid valve

1шт.

11

1301642C1

WASHER

- spring retaining

2шт.

12

1301643C1

VALVE

ARMATURE - valve

1шт.

13

1301644C2

SPOOL

POPPET - valve

1шт.

14

1301821C1

SPRING

- sleeve

1шт.

15

1301646C2

BUSHING,6.35mm ID x 15.88mm OD x 25.8mm L

- armature

1шт.

16

1301639C1

PISTON

ORIFICE - valve, 0.055 inch opening

1шт.

17

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

112988A1

VALVE

SOLENOID ASSEMBLY - valve, normally closed, Includes: Ref. 18 - 28

1шт.

18

1301627C3

SLEEVE

- solenoid valve

1шт.

19

1301640C1

SPRING

- sleeve

1шт.

20

110550A1

VALVE POPPET

POPPET - valve

1шт.

21

1301648C1

ARMATURE

- valve

1шт.

22

1301624C1

BUSHING

- armature

1шт.

23

1346430C1

RESTRICTOR

ORIFICE - valve, 0.062 inch opening

1шт.

24

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

25

1301632C1

CAP

COVER - coil

2шт.

26

1301633C1

COIL

- valve

2шт.

27

107825

NUT,Stamped, 1/2"-20

- hex stamped, 1/2 inch NF

2шт.

28

225-20210

NUT,#10-32, Brass

2шт.

1282280C1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

KIT - seal, valve, also includes (1) 529909R1 O-ring not used in this application, no longer available, order kit 1282278C2

1шт.

1282278C2

SEAL KIT

KIT - seal, valve

1шт.
