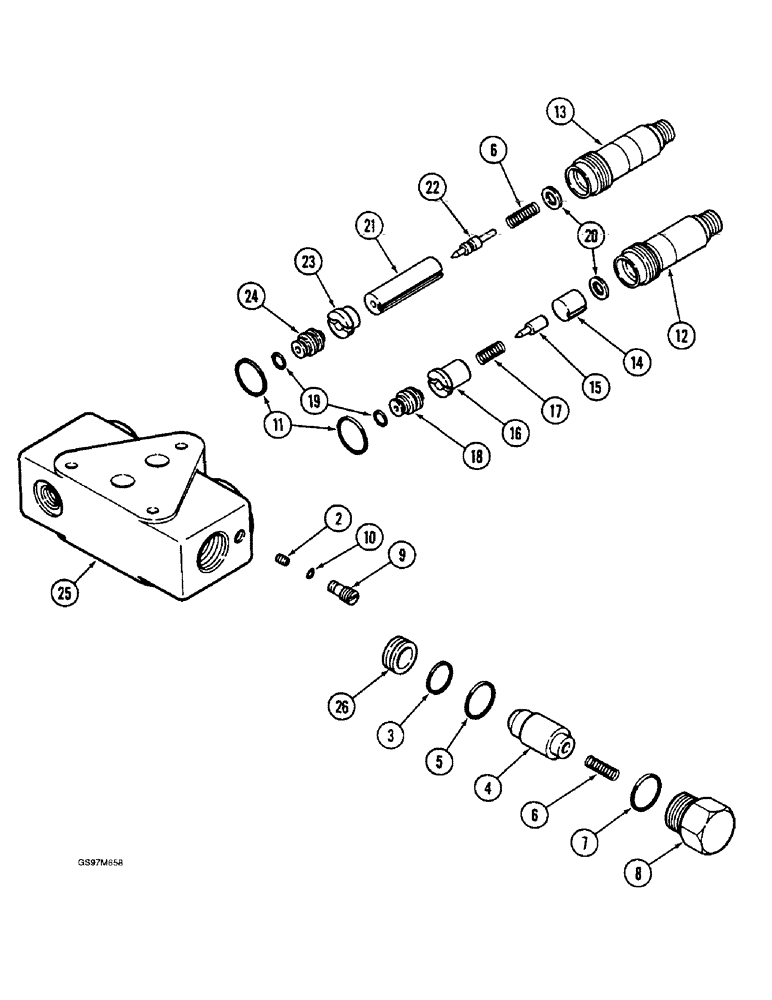

Запчасти Case IH 1660 (8-068) - UNLOAD/SINGLE BI-DIRECTIONAL VALVE, FOR REEL LIFT (07) - HYDRAULICS

1301652C91

VALVE

ASSEMBLY - unload/single bi-directional, no longer available, order valve assembly 107981A3, parts list Figure 8-069A, Includes: Ref. 2 - 26

1шт.

2

1301635C1

PLUG

- orifice

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

4

1301651C1

PIN

POPPET - valve

1шт.

5

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

1шт.

6

1301640C1

SPRING

- poppet

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

1301690C1

PLUG

- end

1шт.

9

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

PLUG - valve body

1шт.

10

529909R1

O-RING,1.78mm Thk x 2.54mm ID

- 7/64 ID x 1/4 inch wide

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

12

1301641C3

TRANSMISSION SLEEVE

SLEEVE - poppet

1шт.

13

1301627C3

SLEEVE

- poppet

1шт.

14

1301643C1

VALVE

ARMATURE - valve

1шт.

15

1301644C2

SPOOL

POPPET - valve, Also Order BUSHING 1301646C2 and SLEEVE 1301641C2 for initial replacement

1шт.

16

1301646C2

BUSHING,6.35mm ID x 15.88mm OD x 25.8mm L

- poppet

1шт.

17

1301821C1

SPRING

- poppet

1шт.

18

1301625C1

ORIFICE

- valve

1шт.

19

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

20

1301642C1

WASHER

- spring retaining

2шт.

21

1301648C1

ARMATURE

- valve

1шт.

22

1301647C1

POPPET

- valve

1шт.

23

1301624C1

BUSHING

- poppet

1шт.

24

1301639C1

PISTON

ORIFICE - valve, 0.055 inch opening

1шт.

24

1346430C1

RESTRICTOR

ORIFICE - valve, 0.062 inch opening

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 1301652C91

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT - poppet, order valve assembly 1301652C91

1шт.
