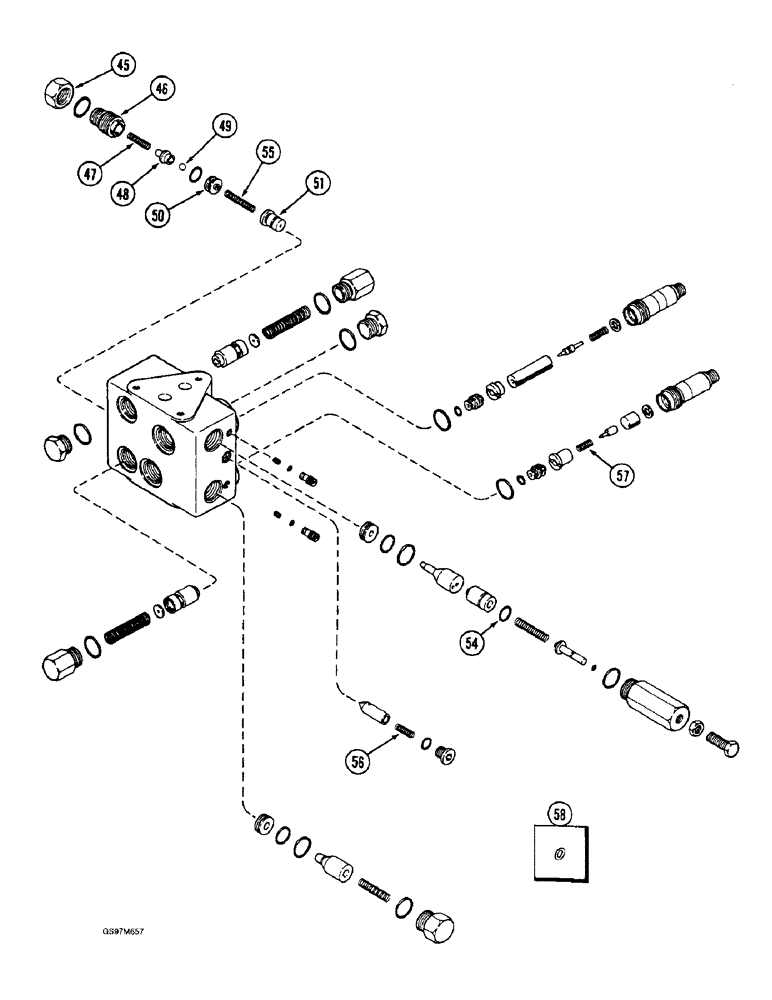

Запчасти Case IH 1660 (8-066) - HEADER VALVE, PRIOR TO P.I.N. JJC0103800 (CONTD) (07) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - header, Includes: Ref. 45 - 57 and 2 - 44 on Figure 8-064

1шт.

45

1301674C1

NUT

- hex, special, 1 inch

1шт.

46

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

PLUG - valve

1шт.

47

1301636C1

SPRING

- poppet

1шт.

48

1301677C1

PIN

GUIDE - spring

1шт.

49

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24

1шт.

50

1301654C1

NUT

ORIFICE - valve

1шт.

51

1301678C1

VALVE

POPPET - valve

1шт.

54

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

Part of seal kit 1282279C2

1шт.

55

1301679C1

SPRING

- orifice

1шт.

56

1301729C1

SPRING

- poppet

1шт.

57

1301821C1

SPRING

- poppet

1шт.

530575R91

SHIM KIT

KIT - shim, Includes: Ref. 58

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve, 0.005 inch, order kit 530575R91

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve, 0.007 inch, order kit 530575R91

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve, 0.020 inch, order kit 530575R91

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve, 0.042 inch, order kit 530575R91

1шт.

1282279C2

SEAL KIT

KIT - seal, Includes Ref. 54

1шт.
