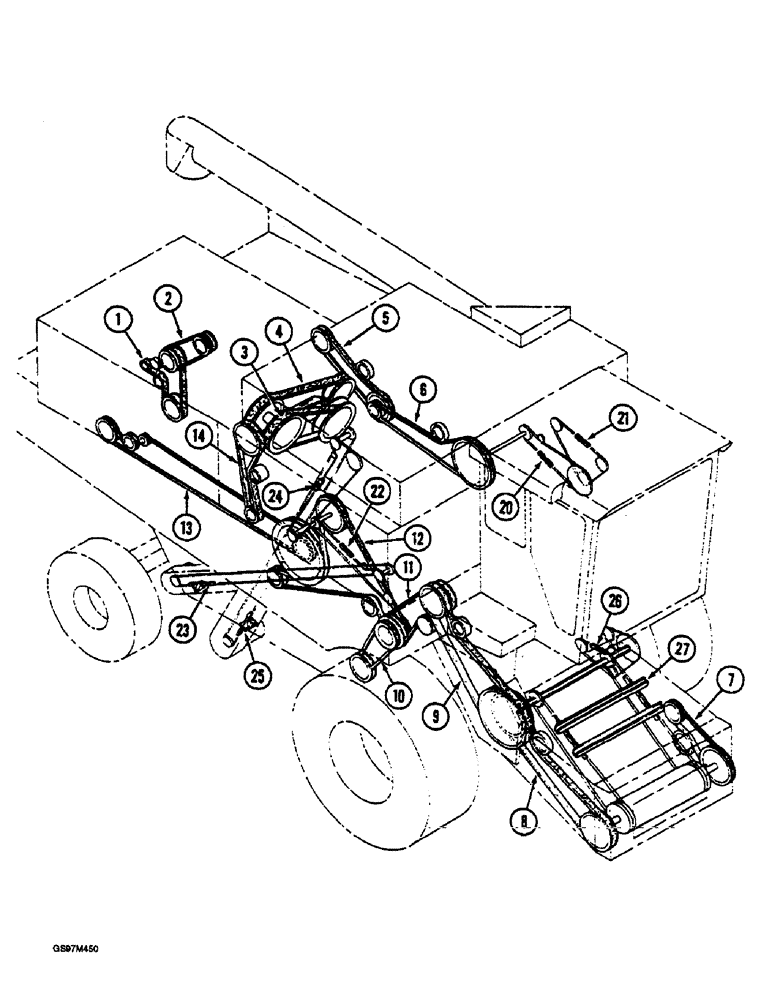

Запчасти Case IH 1660 (1-18) - PICTORIAL INDEX, BELTS (00) - PICTORIAL INDEX

1

Engine Fan and Alternator Belt, 2-15

1шт.

2

Air Conditioning Compressor Belt, 9G-61

1шт.

3

Rotor Drive Belt, 9B-7, 9B-9

1шт.

4

Separator Drive Belt, 9A-15

1шт.

5

Auxiliary Pump Drive Belt, 8-43

1шт.

6

Grain Tank Unloader Drive Belt, 9E-11

1шт.

7

Reel Pump Drive Belt, 8-95, 8-97

1шт.

8

Feeder Jackshaft Drive Belt, 9A-25

1шт.

9

Feeder Drive Belt, 9A-23

1шт.

10

Cleaning Fan Drive Belt, 9C-13

1шт.

11

Cleaning Fan Jackshaft Belt, 9C-13

1шт.

12

Elevator Drive Belt, 9A-5

1шт.

13

Straw Spreader Drive Belt, 9F-3

1шт.

14

Straw Chopper Drive Belt, 9F-11

1шт.

20

Grain Tank Unloader Drive Belt, 9E-19, chains

1шт.

21

Rear Horizontal Auger Drive Chain, 9E-19

1шт.

22

Tailings Elevator Drive Chain, 9D-31

1шт.

23

Tailings Elevator Conveyor Chain, 9D-29

1шт.

24

Clean Grain Elevator Drive Chain, 9D-7

1шт.

25

Clean Grain Elevator Conveyor Chain, 9D-7

1шт.

26

Feeder Reverser Drive Chain, 9A-43, 9A-47

1шт.

27

Feeder Conveyor Chain, 9A-37

1шт.
