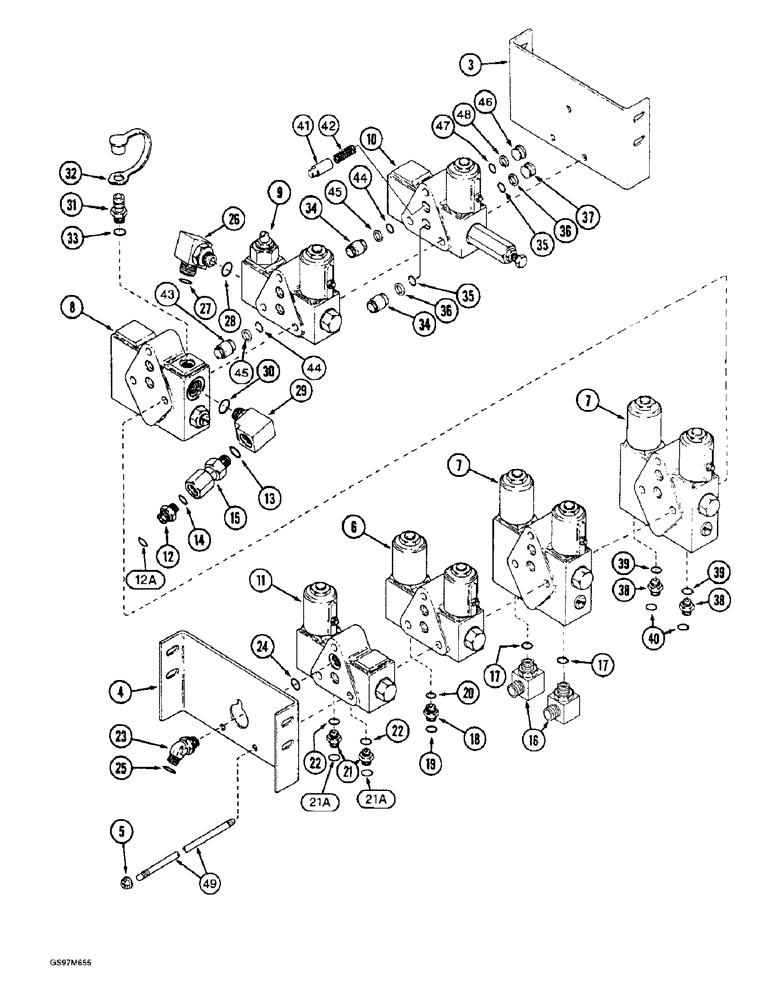

Запчасти Case IH 1660 (8-062) - CONTROL VALVE AND MOUNTING, WITH FORE AND AFT ATTACHMENT, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - control, Includes: Ref. 3 - 48 and Valve Assembly listed below

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - control, Includes: Ref. 3 - 11

1шт.

3

1541613C1

SUPPORT

BRACKET - valve mounting, front

1шт.

4

1989370C2

SUPPORT

BRACKET - valve mounting, rear

2шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - unload/single bi-directional, parts list Figure 8-068 or 8-069A

1шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - double piloted, parts list Figure 8-070 or 8-071A

1шт.

8

1542678C1

VALVE

ASSEMBLY - flow divider, parts list Figure 8-072

1шт.

9

1542679C2

VALVE

ASSEMBLY - header lift, parts list Figure 8-074

1шт.

10

1542680C3

VALVE

ASSEMBLY - header lower, parts list Figure 8-076

1шт.

11

1542681C1

VALVE

ASSEMBLY - feeder clutch, parts list Figure 8-078

1шт.

12

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 12A - 14 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

12a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

1272346C1

FILTER

- valve pressure line

1шт.

16

218-5320

ELBOW,90 Degree, 7/16"-20, 37 Degree x 3/4"-16, O-Ring

- 7/16-20 flare x 3/4-16 inch O-ring boss, Includes: Ref. 17

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

ADAPTER - straight, 11/16-16 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 19 & 20

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

21

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 21A & 22

2шт.

21a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45 degree, 13/16-16 face seal x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 24 & 25

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

201-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-3/16-12 face seal x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 27 & 28

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

1989475C3

TEE

- special, 5/8 O-ring boss x 3/4 O-ring boss x 3/8 face seal, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

1541849C1

COUPLING

ASSEMBLY - quick disconnect (Replaces coupling assembly S243647), Includes: Ref. 32

1шт.

32

H434163

DUST CAP

CAP - dust

1шт.

34

1301630C2

TUBE,.344" ID, .5" OD, 15" Length

- through, small

9шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

- backup

1шт.

37

1301634C2

PLUG

- cap, small

4шт.

38

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 39 & 40

2шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

40

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

41

107957A1

VALVE POPPET

POPPET - raise check

1шт.

42

107959A1

SPRING

- raise check

1шт.

43

107984A1

PISTON

TUBE ASSEMBLY - through, large, Includes: Ref. 44 - 48

1шт.

44

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

45

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup

2шт.

46

107985A1

PISTON

PLUG ASSEMBLY - cap, large

1шт.

47

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

48

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup

1шт.

49

106439A1

STEM

ROD - tie, without reel fore and aft

1шт.

49

106440A1

STEM

ROD - tie, with reel fore and aft

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
