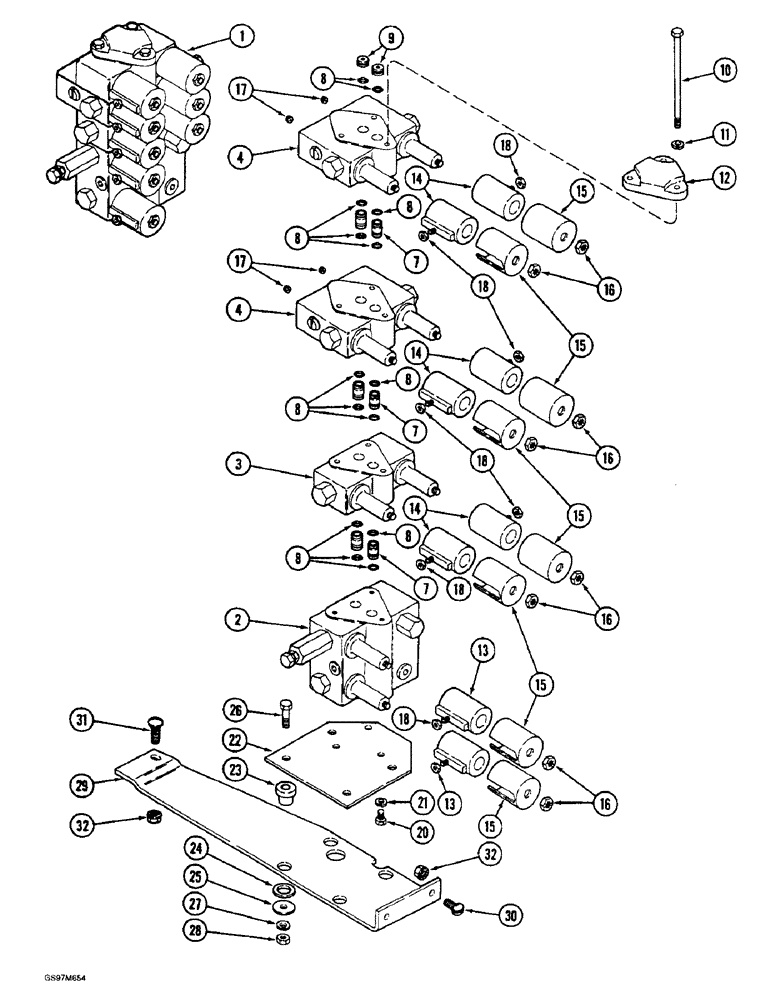

Запчасти Case IH 1660 (8-060) - CONTROL VALVE AND MOUNTING, WITH FORE AND AFT ATTACHMENT,PRIOR TO P.I.N. JJC0103800 (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - control, order components, Includes: Ref. 2 - 18
1шт.
2
1954161C2
VALVE
ASSEMBLY - header, parts list Figure 8-064
1шт.
3
REF
INSTRUCTION
VALVE ASSEMBLY - unload single/bi-directional, parts list Figure 8-068 or 8-069A
1шт.
4
REF
INSTRUCTION
VALVE ASSEMBLY - double piloted, parts list Figure 8-070 or 8-071A
2шт.
7
1301630C2
TUBE,.344" ID, .5" OD, 15" Length
- through
6шт.
8
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
14шт.
9
1301634C2
PLUG
- cap
2шт.
10
413-496
BOLT,Hex, 1/4" - 20 x 6", Gr 5
- hex, 1/4 NC x 6 inch
3шт.
11
493-41026
LOCK WASHER,Ext Tooth, 1/4"
WASHER - external tooth lock, 1/4 inch
3шт.
12
85258C1
CAP
- end
1шт.
13
1301730C1
VALVE
COIL - valve
2шт.
14
1301633C1
COIL
- valve
6шт.
15
1301632C1
CAP
COVER - coil
8шт.
16
107825
NUT,Stamped, 1/2"-20
- hex, 1/2 inch NF
8шт.
17
1301637C1
ORIFICE
- valve
4шт.
18
225-20210
NUT,#10-32, Brass
8шт.
20
413-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
- hex, 5/16 NC x 1/2 inch
3шт.
22
183683C1
BAR
PLATE - control valve mounting
1шт.
23
D52276
ISOLATOR,10.16mm ID x 28.07mm OD x mm L
INSULATOR - rubber
4шт.
24
495-81039
WASHER,25/32" x 1 1/4" x .120"
- flat, 25/32 x 1-1/4 x 7/64 inch
4шт.
25
495-81136
WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk
- flat, 13/32 x 1 x 7/64 inch
4шт.
26
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
- hex, 3/8 NC x 1-3/4 inch
4шт.
27
492-11038
LOCK WASHER,3/8"
4шт.
28
425-106
NUT,3/8"-16, Cl 5
4шт.
29
183684C1
SUPPORT
- control valve
1шт.
30
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- serrated slotted truss head, 5/16 NC x 3/4"
2шт.
31
477-73116
SERRATED SCREW,Truss HD, 5/16" - 18 x 1"
BOLT - serrated slotted truss head, 5/16 NC x 1 inch
1шт.
32
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
3шт.
Выбрано товаров: 29
