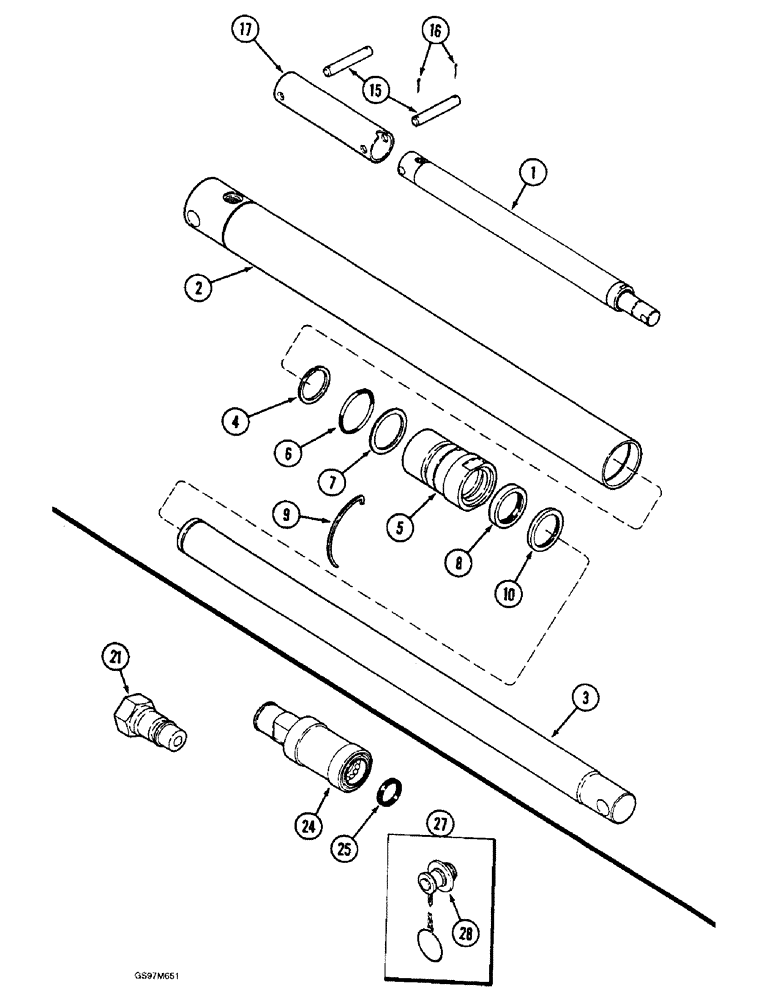

Запчасти Case IH 1660 (8-054) - HEADER LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - header lift, 67 (2-5/8) ID x 521 mm (20-1/2 inch) stroke, Includes: Ref. 2 - 10

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1660 CASE IH AXIAL-FLOW COMBINE (S/N JJC0038346 & AFTER) (NORTH AMERICA), P.I.N. JJC0038346 AND AFTER, Assembly, header lift, 67 (2-5/8) ID x 521 mm (20-1/2 inch) stroke (1/86-12/92)

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly

1шт.

3

127780C2

ROD

- piston

1шт.

4

NSS

NOT SOLD SEPARAT

RING - stop, piston rod, order kit 224718C92

1шт.

Part of cylinder seal kit P/N 224718C92

1шт.

5

142568C2

HEAD

GLAND - cylinder, front

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 2-1/2 x 2-11/16 inch, front head, order kit 224718C92

1шт.

Part of cylinder seal kit P/N 224718C92

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup, order kit 224718C92

1шт.

Part of cylinder seal kit P/N 224718C92

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod, order kit 224718C92

1шт.

Part of cylinder seal kit P/N 224718C92

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining, order kit 224718C92

1шт.

Part of cylinder seal kit P/N 224718C92

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 224718C92

1шт.

Part of cylinder seal kit P/N 224718C92

1шт.

15

573762R1

PIN,25.4mm OD x 130.97mm L

- 1 x 5-5/32 inch

1шт.

15

195822C1

PIN,25.4mm OD x 228.6mm L

- 1 x 9 inch, used with third cylinder

1шт.

16

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

17

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

- cylinder extension, for 1372 mm (54 inch) feeder

1шт.

17

1319896C1

SUPPORT ASSY.

SLEEVE - lift cylinder extension, for 1207 mm (47-1/2 inch) feeder

1шт.

224718C92

SEAL KIT

KIT - seal, cylinder, Includes Refs. 4, 6, 7, 8, 9 and 10

1шт.

21

1272399C2

QUICK MALE COUPLING

COUPLER ASSEMBLY - self sealing, male, 7/8 inch NF, hydraulic, Includes: Ref. 25

1шт.

24

1282338C91

COUPLING, QUICK, FEM

COUPLER ASSEMBLY - self-sealing female, 7/8-14 inch, hydraulic, Includes: Ref. 25

1шт.

25

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

RING - sealing, hydraulic couplings

1шт.

27

1954133C1

PLUG

PLUG ASSEMBLY - coupling, dust, hydraulic, Includes: Ref. 28

1шт.

28

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- dust plug, hydraulic couplings

1шт.
