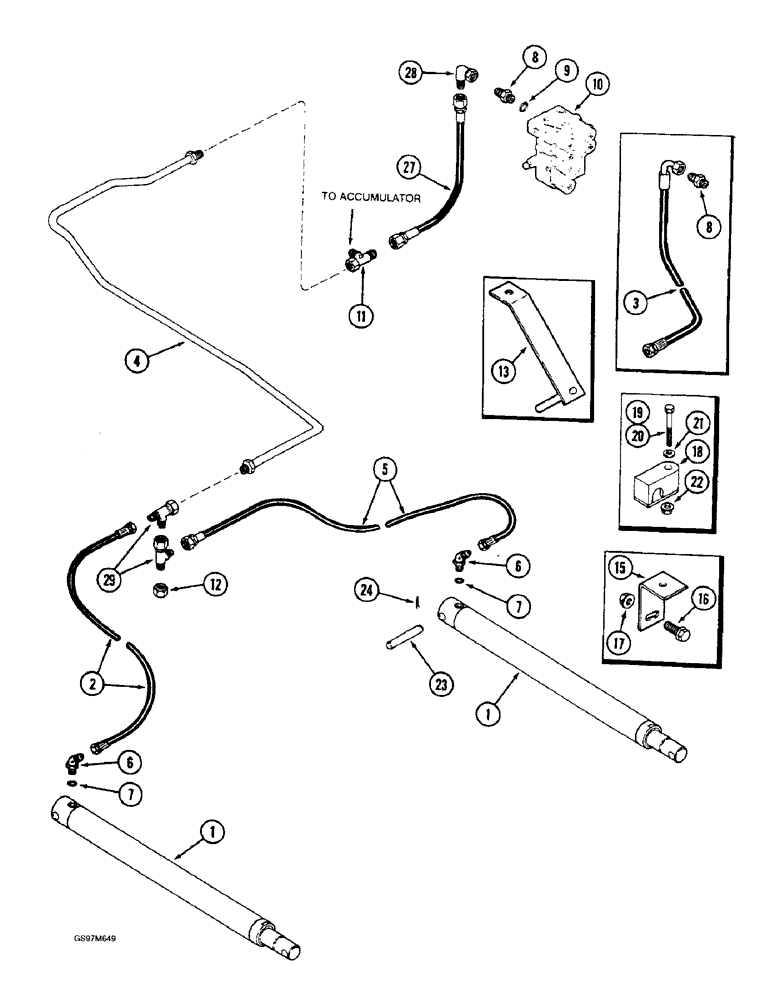

Запчасти Case IH 1660 (8-050) - HEADER LIFT CYLINDER SYSTEM, WITHOUT THIRD LIFT CYLINDER, PRIOR TO P.I.N. JJC0103800 (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - header lift, parts list Figure 8-054

2шт.

1

127779C94R

REMAN-HYD CYLINDER

1660 CASE IH AXIAL-FLOW COMBINE (S/N JJC0038346 & AFTER) (NORTH AMERICA), P.I.N. JJC0038346 AND AFTER, P.I.N. JJC0103800 AND AFTER, Assembly, header lift (1/86-12/92)

2шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

2шт.

2

1345116C1

HOSE

- header lift cylinder, 1143 mm (45 inch) long

1шт.

3

1310862C1

HOSE

- header lift cylinder, 737 mm (29 inch) long

1шт.

Prior to P.I.N. JJC0040238.

1шт.

4

1321493C2

HYD TUBE

TUBE - header lift cylinder

1шт.

Prior to P.I.N. JJC0040238.

1шт.

4

1979996C2

HYD TUBE

TUBE - header lift cylinder

1шт.

P.I.N. JJC0040238 through JJC0103799.

1шт.

5

1345115C1

HOSE

- header lift cylinder, 686 mm (27 inch) long

1шт.

5

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

- header lift assembly, 787 mm (31 inch) long

1шт.

6

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adjustable O-ring boss, Incl. Ref 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-56 or 8-60

1шт.

11

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel, read

1шт.

12

218-755

CAP,37 Degree, 3/4"-16

1шт.

13

173143C2

SUPPORT

- header lift hose

1шт.

15

176394C1

ANGLE

- outer gatherer shield

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

18

183822C1

CLAMP

- header lift tube

3шт.

19

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

20

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

21

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

3шт.

22

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

23

573762R1

PIN,25.4mm OD x 130.97mm L

- 1 x 5-5/32 inch

4шт.

24

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

27

90875C1

HYDRAULIC HOSE

HOSE - 737 mm (29 inch) long

1шт.

P.I.N. JJC0040238 through JJC0103799.

1шт.

28

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

29

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

2шт.
