(8-048) - HEADER LIFT CYLINDER SYSTEM, WITH THIRD LIFT CYLINDER ATTACHMENT, P.I.N. JJC0103800 AND AFTER

Запчасти Case IH 1660 (8-048) - HEADER LIFT CYLINDER SYSTEM, WITH THIRD LIFT CYLINDER ATTACHMENT, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS

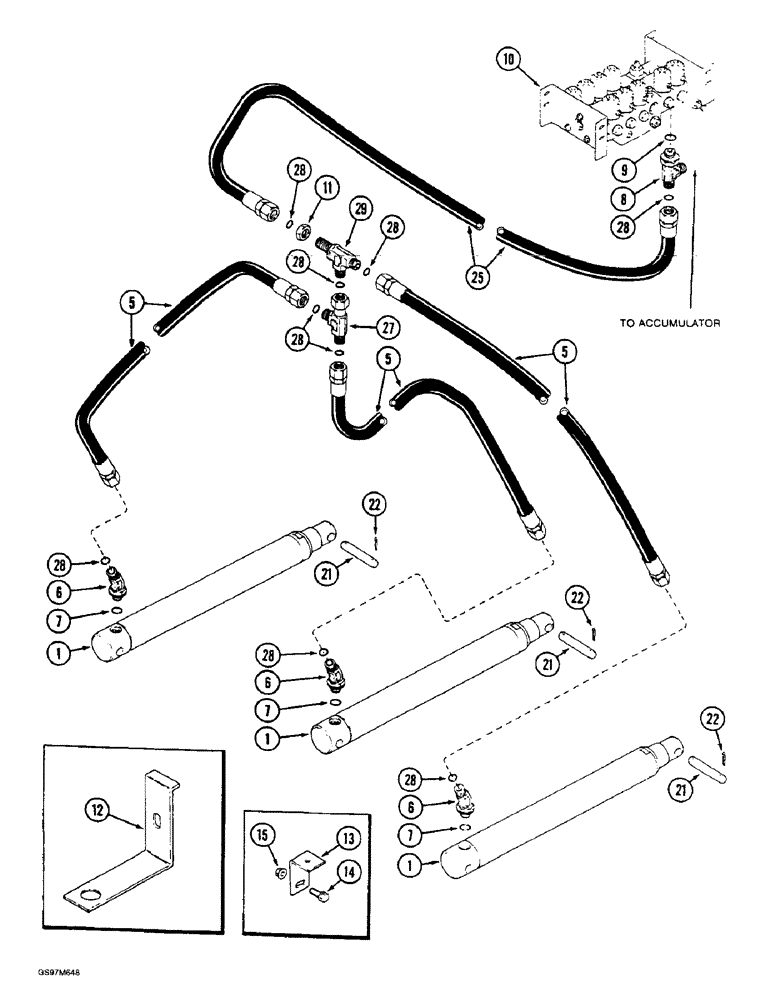

Схема запчастей Case IH 1660 - (8-048) - HEADER LIFT CYLINDER SYSTEM, WITH THIRD LIFT CYLINDER ATTACHMENT, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS
27
6
5
7
11
28
1
10
5
9
28
28
28
7
13
28
1
12
5
22
21
21
22
14
1
15
28
6
7
28
22
29
28
6
21
25
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - header lift, parts list Figure 8-054

3шт.

1

127779C94R

REMAN-HYD CYLINDER

1660 CASE IH AXIAL-FLOW COMBINE (S/N JJC0038346 & AFTER) (NORTH AMERICA), P.I.N. JJC0038346 AND AFTER, P.I.N. JJC0103800 AND AFTER, Assembly, header lift (1/86-12/92)

3шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

3шт.

5

1989667C1

HOSE

- header lift cylinder, 915 mm (36 inch) long

3шт.

6

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

45°, 13/16"-16 x 3/4"-16. Adj, ORFS, Includes Ref. 7

3шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

8

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

- 13/16-16 face branch x face x 3/4-16 inch adjustable O-ring, Includes: Ref. 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list page 8-058 or 8-062

1шт.

11

201-903

TUBE NUT,Blkhd, 13/16"-16

NUT, LOCK, Blkhd, 13/16"-16

1шт.

12

1989653C1

SUPPORT

- header cylinder fitting

1шт.

13

176394C1

ANGLE

- outer gatherer shield

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

21

573762R1

PIN,25.4mm OD x 130.97mm L

- 1 x 5-5/32 inch

2шт.

21

195822C1

PIN,25.4mm OD x 228.6mm L

- 1 x 9 inch

2шт.

22

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

25

1989666C1

HOSE

- header cylinder supply, 2460 mm (96-7/8 inch) long

1шт.

27

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

- 13/16-16 inch face branch x face x swivel face

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

9шт.

29

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

- 13/16-16 inch face seal branch x face seal x bulkhead face seal

1шт.
