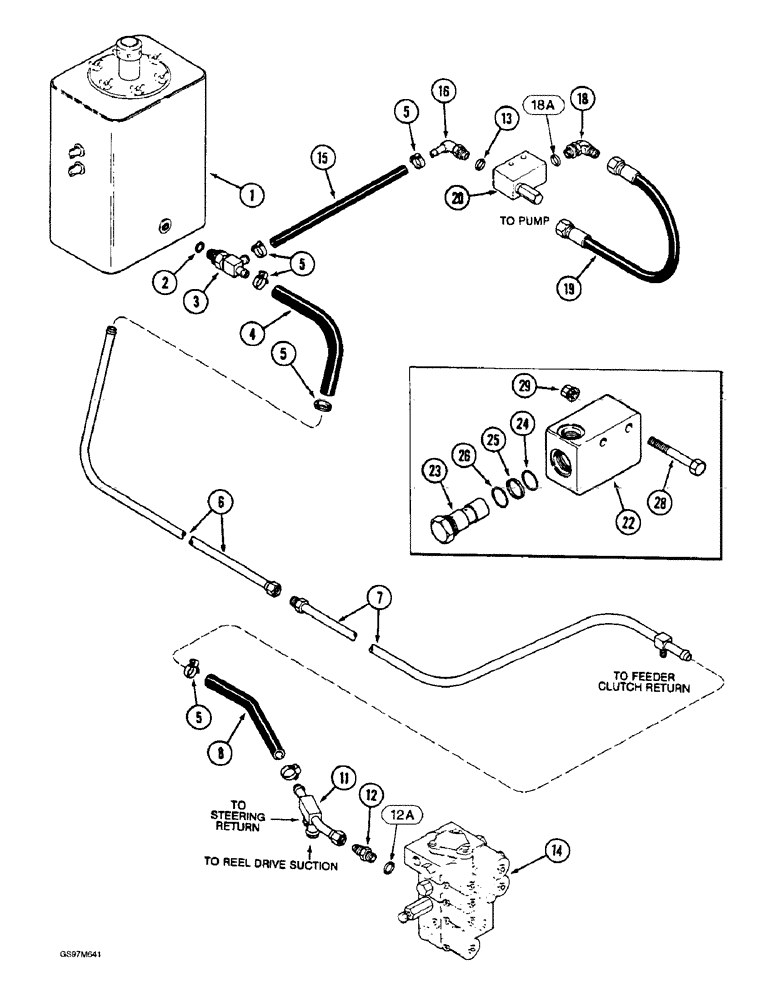

Запчасти Case IH 1660 (8-034) - HEADER LIFT RETURN SYSTEM, PRIOR TO P.I.N. JJC0103800 (07) - HYDRAULICS

1

1301237C92

RESERVOIR

ASSEMBLY - hydraulic oil, parts list Figure 8-002

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

172059C1

TEE

- adjustable

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - 19 (3/4) ID x 457 mm (18 inch) long, cut from bulk hose 180720C2 below

1шт.

5

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

6шт.

6

196743C2

HYD TUBE

TUBE - header lift return, rear

1шт.

7

196744C1

HYD TUBE

TUBE - header lift return, front

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - 19(3/4) ID x 178 mm (7 inch) long, cut from bulk hose 180720C2 below

1шт.

11

1310757C1

TUBE

- manifold, and steering return

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 12A

1шт.

12a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figures 8-056 or 8-060

1шт.

15

1957369C1

HYDRAULIC HOSE,15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

Return, Relief Valve 15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

1шт.

16

1321659C1

ELBOW,90 Degree, 7/8"-14 O-Ring x 5/8" Barb end

- 90 degree adjustable, Includes: Ref. 18A

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adjustable O-ring boss, Incl. Ref. 18A

1шт.

18a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

19

H169052

HYDRAULIC HOSE,12.7mm ID x 508mm L, SAE 100R1

Pressure, Relief Valve, Replaces 156436H1 12.70 mm ID x 508.00 mm, SAE 100R1

1шт.

20

1971746C1

VALVE

ASSEMBLY - relief, Includes: Ref. 22 - 26

1шт.

20

549528R93

VALVE

ASSEMBLY - relief, no longer available, order valve assembly 1971746C1, Includes: Ref. 22 - 26

1шт.

22

403187R1

BLOCK

BODY - valve

1шт.

23

396729R93

VALVE

- relief

1шт.

24

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

25

378985R2

BACK-UP RING

RING - backup

1шт.

26

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

28

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

364360C1

HOSE

- bulk, 19 (3/4) ID x 15240 mm (600 inch) long, sold by the foot

1шт.
