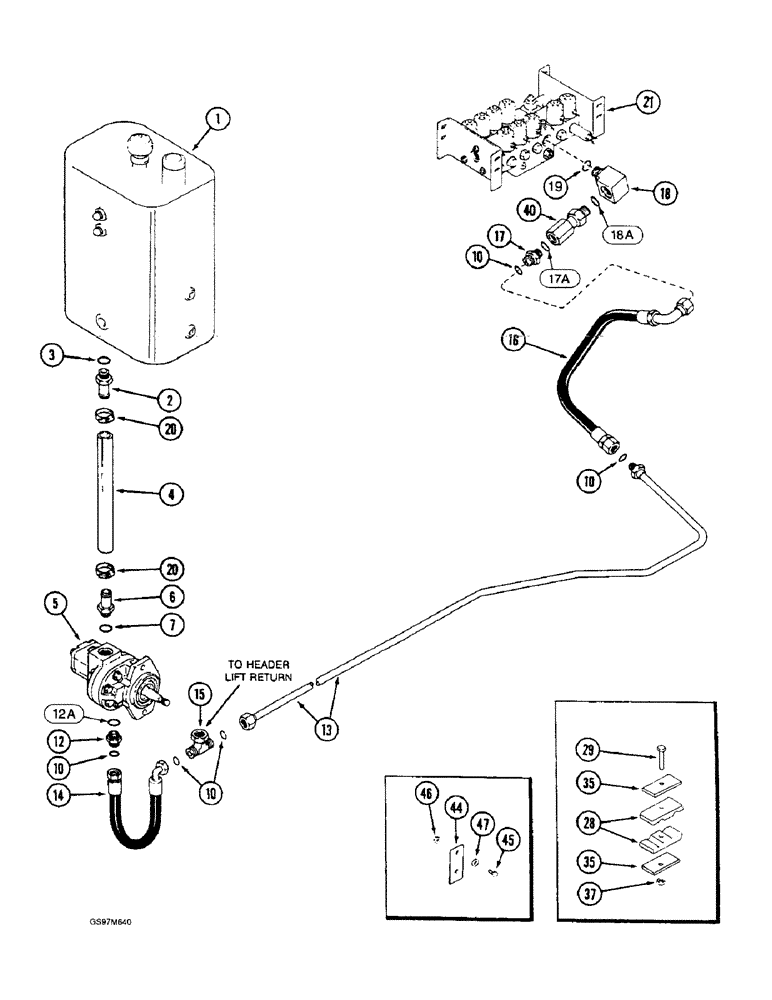

Запчасти Case IH 1660 (8-032) - HEADER LIFT SUPPLY SYSTEM, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-004

1шт.

2

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-1/4 stem end x 1-5/8-12 inch O-ring boss, Incl. Ref. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

1989365C2

HOSE

- header lift, 412 mm (16-1/4 inch) long, cut from 1541953C1 bulk hose below

1шт.

5

1994653C2

PUMP

ASSEMBLY - header lift, parts list Figure 8-090

1шт.

1994653C2R

REMAN-HYD PUMP

1660 S/N JJC0038346 & Aft., Header Lift Supply System P.I.N. JJC0103800 & Aft. (1/86 - 12/92)

1шт.

1994653C2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-1/4 stem end x 1-5/8-12 inch O-ring boss, Incl. Ref. 7

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

12

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 12A 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

12a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

1989281C2

HYD TUBE

TUBE - pressure, header lift

1шт.

14

1980050C2

HOSE,15.88mm ID x 737mm L

- auxiliary pump pressure, 737 mm (29 inch) long

1шт.

15

201-419

TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br

- 1-3/16-12 inch swivel face branch x face seal x face seal

1шт.

16

1989509C2

HOSE

- lift pressure, 610 mm (24 inch) long

1шт.

17

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 17A 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

17a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

1989475C3

TEE

- special, 5/8 O-ring boss x 3/4 O-ring boss x 3/8 face seal, Includes: Ref. 18A & 19

1шт.

18a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 1.25/2.125 HD Worm, W/liner

2шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list page 8-058 or 8-062

1шт.

28

1541538C1

CLAMP

- two-piece (Replaces clamp 1989362C1)

3шт.

29

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

3шт.

35

1347127C1

PLATE

- clamp

4шт.

37

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

40

1272346C1

FILTER

- valve pressure line

1шт.

44

196868C2

SUPPORT

PLATE - support

1шт.

45

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

47

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

1541953C1

HOSE

- bulk, 32 (1-1/4) ID x 7620 mm (300 inch) long

1шт.
