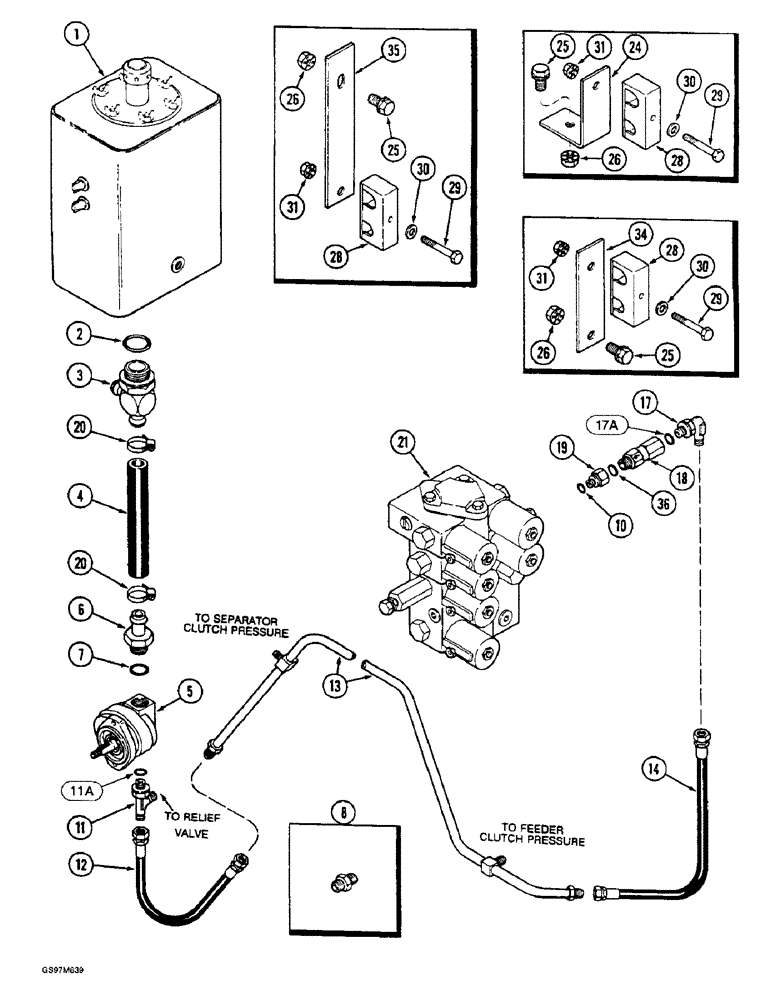

Запчасти Case IH 1660 (8-030) - HEADER LIFT SUPPLY SYSTEM, PRIOR TO P.I.N. JJC0103800 (07) - HYDRAULICS

1

1301237C92

RESERVOIR

ASSEMBLY - hydraulic oil, parts list Figure 8-002

1шт.

2

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

6шт.

3

1301506C1

TEE

- adjustable, 1-7/8-12 thread x 1 inch OD beaded tube

1шт.

4

1310703C1

HOSE

- header lift suction, 330 mm (13 inch) long, cut from hose 190851C2 below

1шт.

5

REF

INSTRUCTION

PUMP ASSEMBLY - auxiliary hydraulic lift, parts list Figure 8-045

1шт.

6

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Adapter, Includes Ref. 7 1" Hose X 1 5/16"-12 ORB, Beaded

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

8

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Adapter - straight, Includes Ref. 8A 1 3/16"-12 ORFS x 7/8"-14 ORB

1шт.

8a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

11

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adjustable O-ring boss, Includes: Ref. 11A

1шт.

11a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

- header lift pressure, 736 mm (29 inch) long, prior to P.I.N. JJC0041567

1шт.

12

390649R92

HYDRAULIC HOSE

HOSE - header lift pressure, 483 mm (19 inch) long, P.I.N. JJC0041567 through JJC0103799

1шт.

13

196747C1

HYD TUBE

TUBE - header lift pressure

1шт.

14

H169052

HYDRAULIC HOSE,12.7mm ID x 508mm L, SAE 100R1

Header Lift Presssure 12.70 mm ID x 508.00 mm, SAE 100R1

1шт.

17

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 7/8-14 flare x 1-1/16-12 inch adjustable O-ring boss, Includes: Ref. 17A

1шт.

17a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 59/64 ID x 7/64 inch wide

3шт.

18

1272346C1

FILTER

- valve pressure line

1шт.

19

1968919C1

FITTING

ADAPTER - reducer, 7/8-14 x 1-1/16-12 inch thread

1шт.

20

214-1524

HOSE CLAMP,#24, 1.06" - 2", Type F Worm, W/ Liner

CLAMP - adjustable, 1-1/16 - 2 inch diameter, Type F

2шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figures 8-056 or 8-060

1шт.

24

178950C1

ANGLE

SUPPORT - steering tubes

2шт.

25

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

3шт.

26

231-5146

FLANGE NUT,3/8"-16

4шт.

28

121714C1

CLAMP

- header lift tubes

3шт.

29

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

3шт.

30

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

34

187509C1

BAR

- header lift tubes

1шт.

35

187510C2

BAR

- header lift tubes, 191 mm (7-1/2 inch) long

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

190851C2

HOSE

- bulk, 2108 mm (83 inch) long

1шт.
