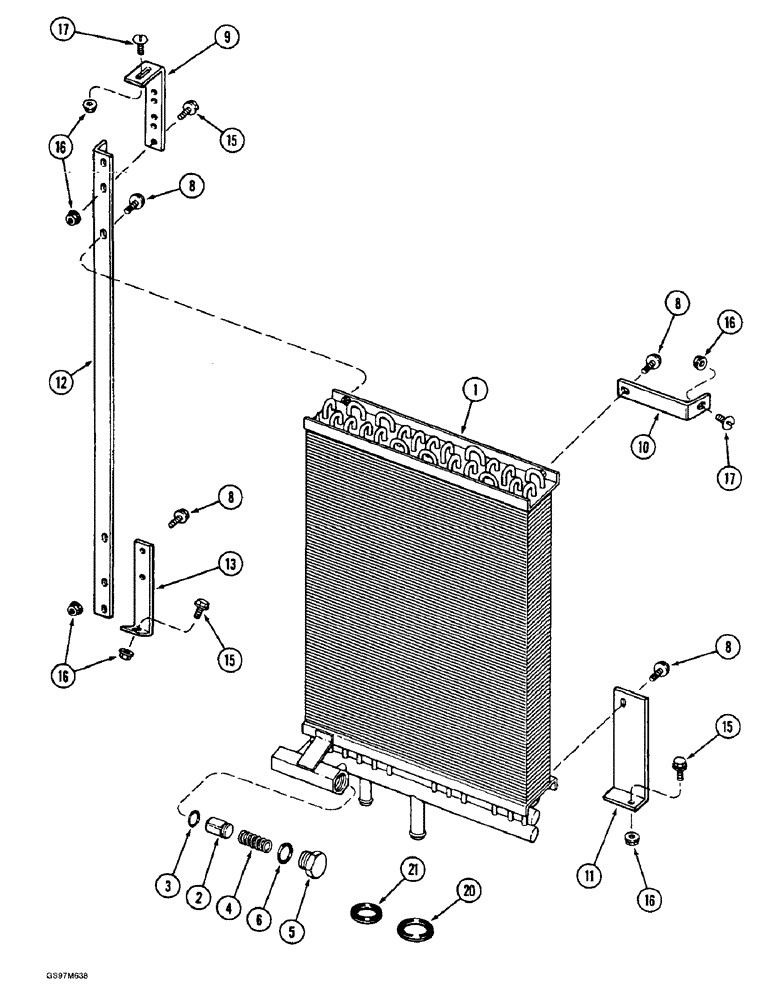

Запчасти Case IH 1660 (8-028) - AUXILIARY OIL COOLER (07) - HYDRAULICS

1

84659C3

OIL COOLER

COOLER ASSEMBLY - oil, hydraulic, Includes: Ref. 2 - 6

1шт.

2

93198C1

VALVE

- bypass

1шт.

3

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

4

A189029

SPRING

- bypass valve

1шт.

5

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 6 Hex Hd, 1 5/16"-12 ORB

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

8

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

9

1979632C2

SUPPORT

- oil cooler, top left-hand

1шт.

10

1979674C1

SUPPORT

- oil cooler, top right-hand

1шт.

11

1979787C2

SUPPORT

- oil cooler, bottom right-hand

1шт.

12

1979633C2

SUPPORT

- oil cooler, oil cooler, left-hand

1шт.

13

1979727C1

SUPPORT

- oil cooler, lower left-hand

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

17

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

20

1970461C1

GROMMET

- rubber, 1-3/8 x 2 x 5/16

2шт.

21

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch

2шт.
