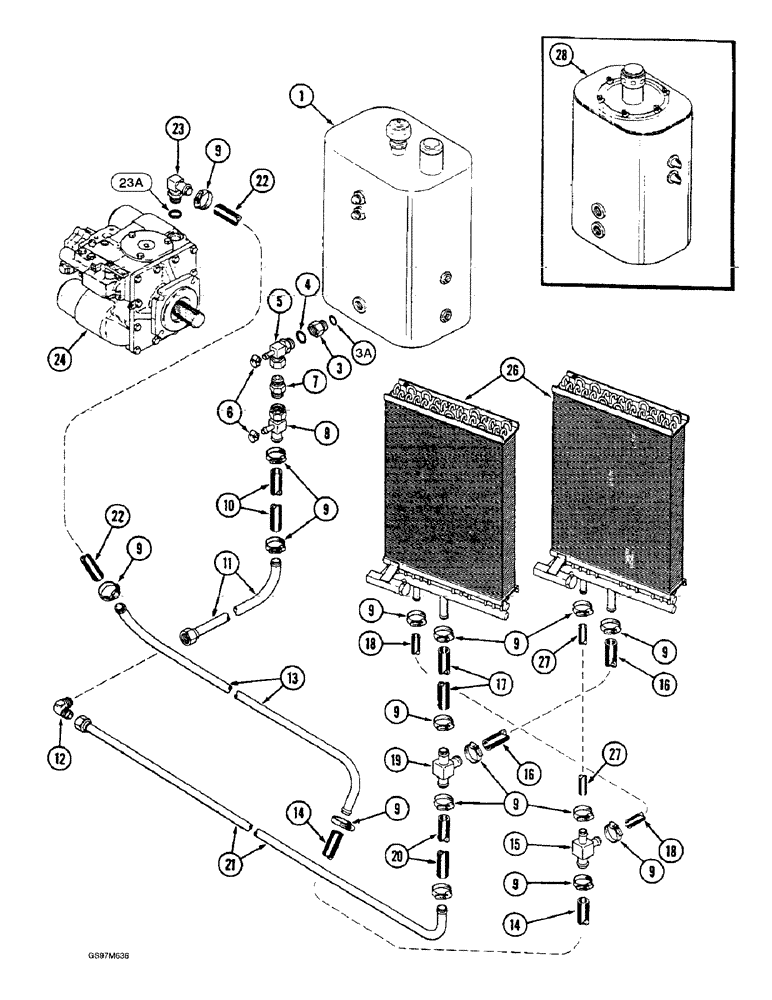

Запчасти Case IH 1660 (8-024) - OIL COOLER SYSTEM, RICE COMBINE, WITH POWER GUIDE AXLE, P.I.N. JJC0041567 AND AFTER (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-004

1шт.

3

1979767C1

ADAPTER

- special, 1-1/16 O-ring boss x 1-5/16 inch female PT, Includes: Ref. 3A

1шт.

3a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

5

1979760C1

TEE

- return

1шт.

6

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter, Type F

2шт.

7

1343558C1

VALVE

- bypass, power guide axle

1шт.

8

1979655C1

TEE

- wheel motor flush

1шт.

9

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, , Adjustable #16, .81/1.50 Type F Worm, W/liner

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - cooler return to bypass tee, 267 mm (10-1/2 inch) long, cut from bulk hose 364361C1 below

1шт.

11

1979731C1

TUBE

- cooler return

1шт.

12

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree, 1-5/16-12 inch flare x flare

1шт.

13

1979653C1

ARM

TUBE - pump

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - auxiliary cooler to return tee, 610 mm (24 inch) long, cut from bulk hose 364361C1 below

1шт.

15

1979670C1

TEE

- cooler supply

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - auxiliary cooler to return tee, 559 mm (22 inch) long, cut from bulk hose 364361C1 below

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - cooler to return tee, 560 mm (22 inch) long, cut from bulk hose 364361C1 below

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE - cooler to supply tee, 508 mm (20 inch) long, cut from bulk hose 364360C1 below

1шт.

19

1979672C1

TEE

- 1 inch stem end

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - cooler supply to tee, 394 mm (15-1/2 inch) long, cut from bulk hose 364361C1 below

1шт.

21

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE - oil cooler return

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - hydraulic cooler to pump, 610 mm (24 inch) long, cut from bulk hose 364361C1 below

1шт.

23

201-351

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 45 degree, 1-7/16-12 face seal x 1-1/16-12 inch adjustable O-ring, Includes: Ref. 23A

1шт.

23a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list Figure 6-32

1шт.

26

84659C3

OIL COOLER

COOLER ASSEMBLY - hydraulic oil, parts list Figure 8-26

2шт.

27

NSS

NOT SOLD SEPARAT

HOSE - auxiliary cooler to tee, 572 mm (22-1/2 inch) long, cut from bulk hose 364361C1 below

1шт.

28

1301237C92

RESERVOIR

ASSEMBLY - hydraulic oil, parts list Figure 8-002

1шт.

364361C1

HOSE

- bulk, 25 (1) ID x 15240 mm (600 inch) long, sold by the foot (Replaces hose B90928)

1шт.

364360C1

HOSE

- bulk, 19 (3/4) ID x 15240 mm (600 inch) long, sold by the foot (Replaces hose B90927)

1шт.
