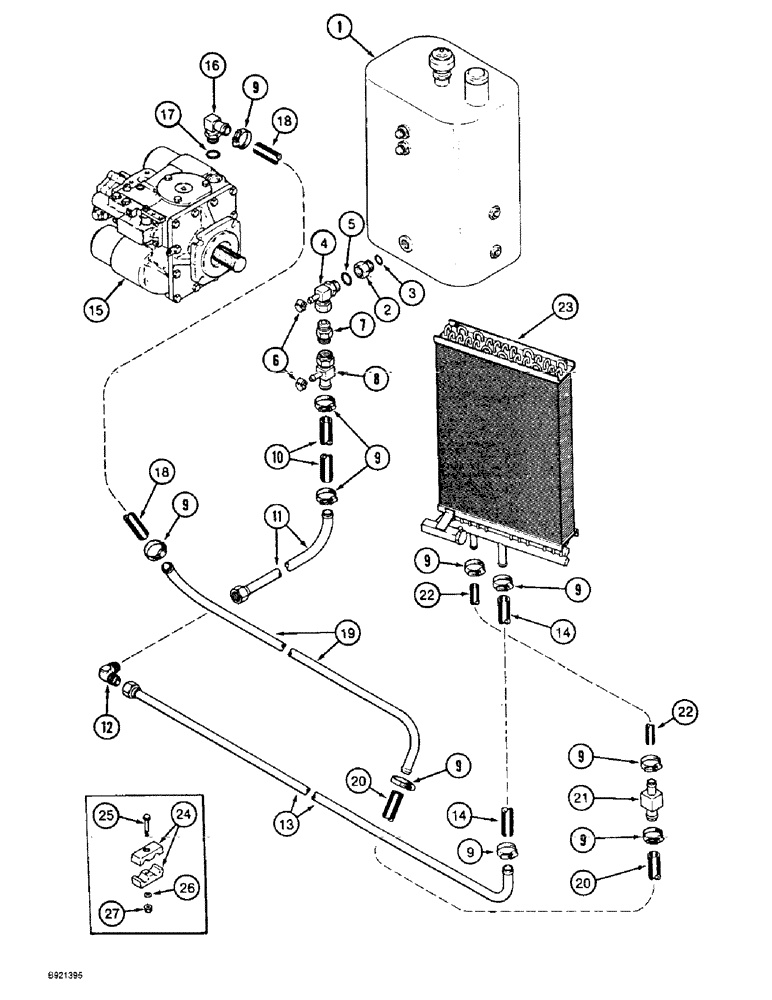

Запчасти Case IH 1660 (8-021A) - OIL COOLER SYS., CORN & GRAIN COMBINE, W/OUT PWR GUIDE POWER AXLE, MODELS W/ CROSS FLOW CLEANING SYS (07) - HYDRAULICS

1

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-004

1шт.

2

1979767C1

ADAPTER

- reducer

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

1979760C1

TEE

- return

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

6

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - hose, adjustable, 1/4 - 5/8 inch diameter

2шт.

7

1343558C1

VALVE

- bypass, power guide axle

1шт.

8

1979655C1

TEE

- wheel motor flush

1шт.

9

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, #16, .81/1.50 Type F Worm, W/liner

10шт.

10

REF

INSTRUCTION

HOSE - cooler return to tee, 267 mm (10-1/2 inch) long, cut from bulk hose 364361C1 below

1шт.

11

1979731C1

TUBE

- cooler return

1шт.

12

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree, 1-5/16-12 inch thread

1шт.

13

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE - oil cooler return

1шт.

14

REF

INSTRUCTION

HOSE - cooler to return tee, 1040 mm (40-15/16 inch) long, cut from bulk hose 364361C1 below

1шт.

15

1343716C4

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, parts list Figures 6-24 and 6-26

1шт.

15

87637528R

REMAN-HYDROSTAT PUMP

1660 (S/N JJC0038346 & AFTER) (1/86-12/92), Reman for New P/N 1343716C4

1шт.

15

87637528C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

15

87659947

REMAN-HYDROSTAT PUMP

Remanufactured Hydrostatic Pump

1шт.

15

400478A1C

CORE-HYDROSTAT PUMP

Return Part Number, Hydrostatic Pump

1шт.

16

1546404C1

ELBOW

- 90 degree, 1-1/16-12 O-ring x 1 inch stem end (Replaces elbow 178995C1)

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

REF

INSTRUCTION

HOSE - hydraulic cooler to pump, 610 mm (24 inch) long, cut from bulk hose 364360C1 below

1шт.

19

1979658C1

HYD TUBE,1" OD

TUBE - oil cooler return

1шт.

20

REF

INSTRUCTION

HOSE - auxiliary cooler to return tee, 343 mm (13-1/2 inch) long, cut from bulk hose 364361C1 below

1шт.

21

1979768C1

ADAPTER

- hose, special, 1 x 3/4 inch

1шт.

22

REF

INSTRUCTION

HOSE - cooler to supply tee, 559 mm (22 inch) long, cut from bulk hose 364360C1 below

1шт.

23

111078A3

COOLER

ASSEMBLY - hydraulic oil, parts list Figure 8-027A

2шт.

24

1347071C1

CLAMP

- tube retaining, 1 inch OD

2шт.

25

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

26

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

28

D55776

TEE

- 1 x 1-3/4 inch hose stem, not shown

1шт.

29

1970461C1

GROMMET

- oil cooler, not shown

1шт.

364361C1

HOSE

- bulk, 25 (1) ID x 15240 mm (600 inch) long, sold by the foot (Replaces hose B90928)

1шт.

364360C1

HOSE

- bulk, 19 (3/4) ID x 15240 mm (600 inch) long, sold by the foot (Replaces hose B90927)

1шт.
