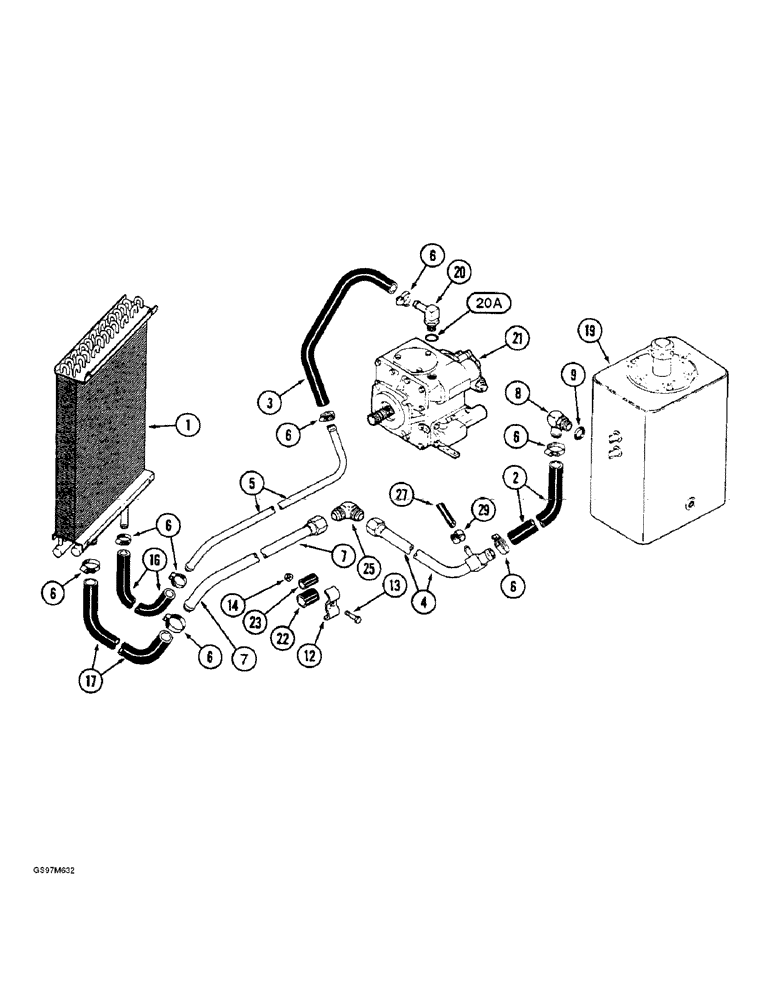

Запчасти Case IH 1660 (8-016) - OIL COOLER SYSTEM, PRIOR TO P.I.N. JJC0041567 (07) - HYDRAULICS

1

84659C3

OIL COOLER

COOLER ASSEMBLY - oil, parts list Figure 8-026

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - reservoir to cooler, 394 mm (15-1/2 inch) long, cut from bulk hose 364361C1 below

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - reservoir to pump, 685 mm (26-31/32 inch) long, cut from bulk hose 364360C1 below

1шт.

4

1970443C1

HYD TUBE,25.4 mm OD

TUBE - reservoir to cooler

1шт.

5

1330590C1

HYD TUBE

TUBE - pump, to hydrostatic pump

1шт.

6

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP - hose retaining

8шт.

7

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE - oil cooler return

1шт.

8

1546404C1

ELBOW

- 90 degree, 1-1/16-12 O-ring x 1 inch stem end, system return (Replaces elbow 178995C1), Includes: Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

157678C1

CLAMP

- hydraulic tube

2шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

14

231-5146

FLANGE NUT,3/8"-16

2шт.

16

NSS

NOT SOLD SEPARAT

HOSE - cooler to pump, 940 mm (37 inch) long, cut from bulk hose 364360C1 below

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - cooler to reservoir, 1245 mm (49 inch) long, cut from bulk hose 364361C1 below

1шт.

19

1301237C92

RESERVOIR

ASSEMBLY - hydraulic oil, parts list Figure 8-002

1шт.

20

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree, 3/4 stem end x 1-1/16-12 inch adjustable O-ring boss, Incl. Ref. 20A

1шт.

20a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list Figure 6-20

1шт.

22

187935C1

STRIP

SLEEVE - pressure tube clamp

2шт.

23

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - 3/4 ID x 1-13/64 inch long

2шт.

25

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree, 1-5/16-12 inch flare x flare (Replaces elbow 9402947)

1шт.

27

1957283C3

HOSE

- housing drain, 3410 mm (134-1/4 inch) long

1шт.

29

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter, Type F

1шт.

364361C1

HOSE

- bulk, 25 (1) ID x 15240 mm (600 inch) long, sold by the foot (Replaces hose B90928)

1шт.

364360C1

HOSE

- bulk, 19 (3/4) ID x 15240 mm (600 inch) long, sold by the foot (Replaces hose B90927)

1шт.
