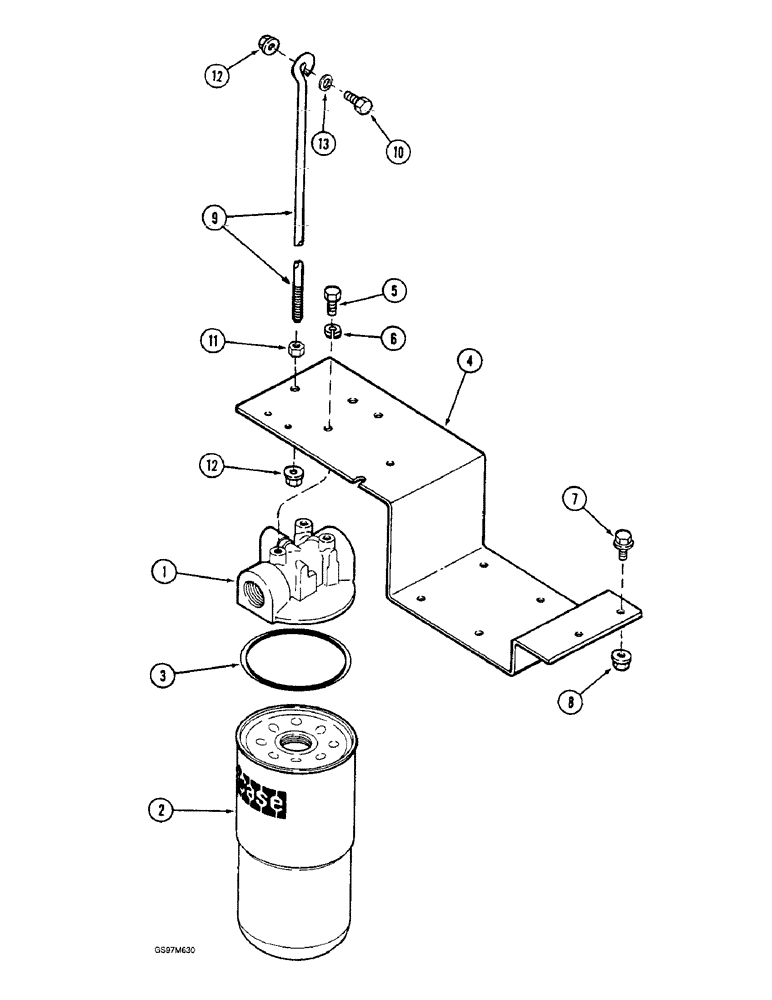

Запчасти Case IH 1660 (8-012) - HYDRAULIC RETURN FILTER, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS

87784C91

FILTER ASSY

FILTER ASSEMBLY - hydraulic return, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter, order filter assembly 87784C91

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter, order kit 1329214C1

1шт.

Part of filter element kit P/N 1329214C1

1шт.

Both elements must be changed at the same time.

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter element

1шт.

Part of filter element kit P/N 1329214C1

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - filter element, Includes Refs. 2 and 3

1шт.

4

1989296C3

SUPPORT

BRACKET - filter mounting, return

1шт.

5

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Return filter mounting Hex, 3/8"-16 x 5/8", G5, Full Thd

3шт.

6

492-11038

LOCK WASHER,3/8"

return filter mounting 3/8"

3шт.

7

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Return filter mounting Hex Flg, 3/8"-16 x 1", Serr

2шт.

8

231-5146

FLANGE NUT,3/8"-16

Return filter mounting Flg, USR, 3/8"-16

2шт.

9

1541545C2

STEM

ROD - filter bracket, return filter mounting

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Return filter mounting

1шт.

11

425-106

NUT,3/8"-16, Cl 5

Return filter mounting 3/8"-16, G5

1шт.

12

231-5146

FLANGE NUT,3/8"-16

Return filter mounting Flg, USR, 3/8"-16

2шт.

13

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch, return filter mounting

1шт.
