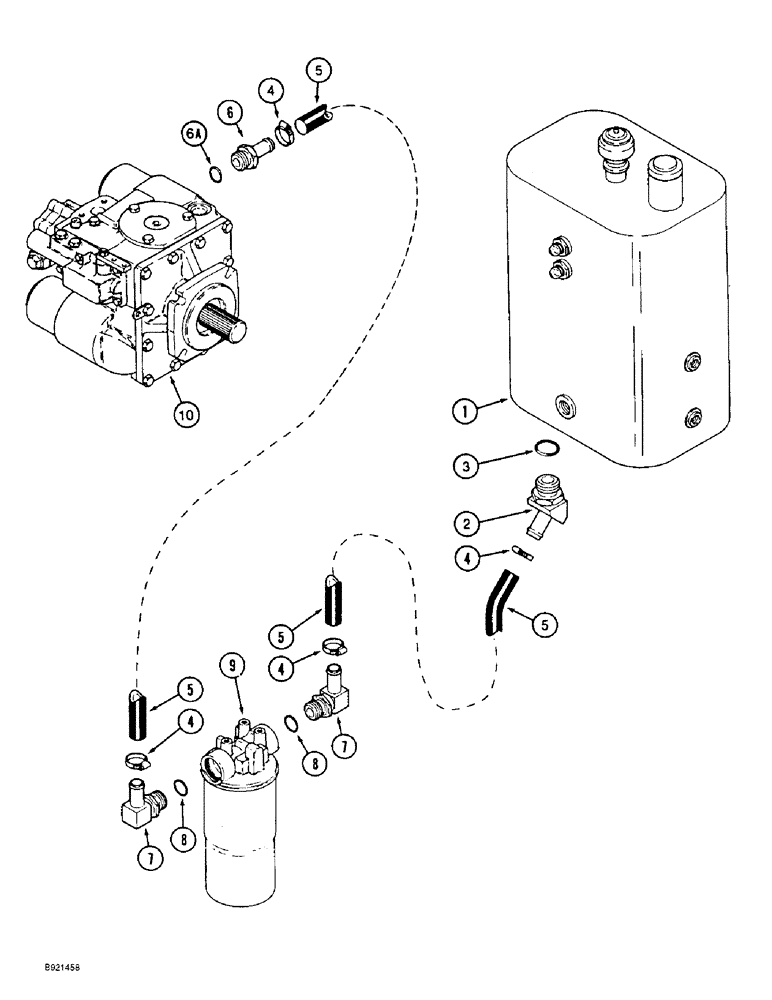

Запчасти Case IH 1660 (8-010) - HYDROSTATIC PUMP SYSTEM, RESERVOIR TO PUMP, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS

1

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic, parts list Figure 8-004

1шт.

2

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

(Elbow), Adj., Incl. Ref. 3 45º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 1.25/2.125 HD Worm, W/liner

4шт.

5

1541688C1

FLEXIBLE HOSE

HOSE - charge pump suction, 660 mm (26 inch) long, cut from 1541953C1 bulk hose below

2шт.

6

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Includes Ref. 6A 1 1/4" Hose X 1 5/16"-12 ORB, Beaded

1шт.

6a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

7

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Adjustable, Includes Ref. 8

2шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

2шт.

9

87784C91

FILTER ASSY

FILTER ASSEMBLY - charge pump suction, parts list Figure 8-012 or 8-014

1шт.

10

1343716C4

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, parts list Figure 6-24 or 6-32

1шт.

10

87637528R

REMAN-HYDROSTAT PUMP

1660 (S/N JJC0038346 & AFTER) (1/86-12/92), HYDROSTATIC PUMP SYSTEM, RESERVOIR TO PUMP, P.I.N. JJC0103800 AND AFTER. Reman for New P/N 1343716C4

1шт.

10

87637528C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

10

87659947

REMAN-HYDROSTAT PUMP

Remanufactured Hydrostatic Pump

1шт.

10

400478A1C

CORE-HYDROSTAT PUMP

Return Part Number, Hydrostatic Pump

1шт.

1541953C1

HOSE

- bulk, 32 (1-1/4) x 7620 (300 inch) long

1шт.
