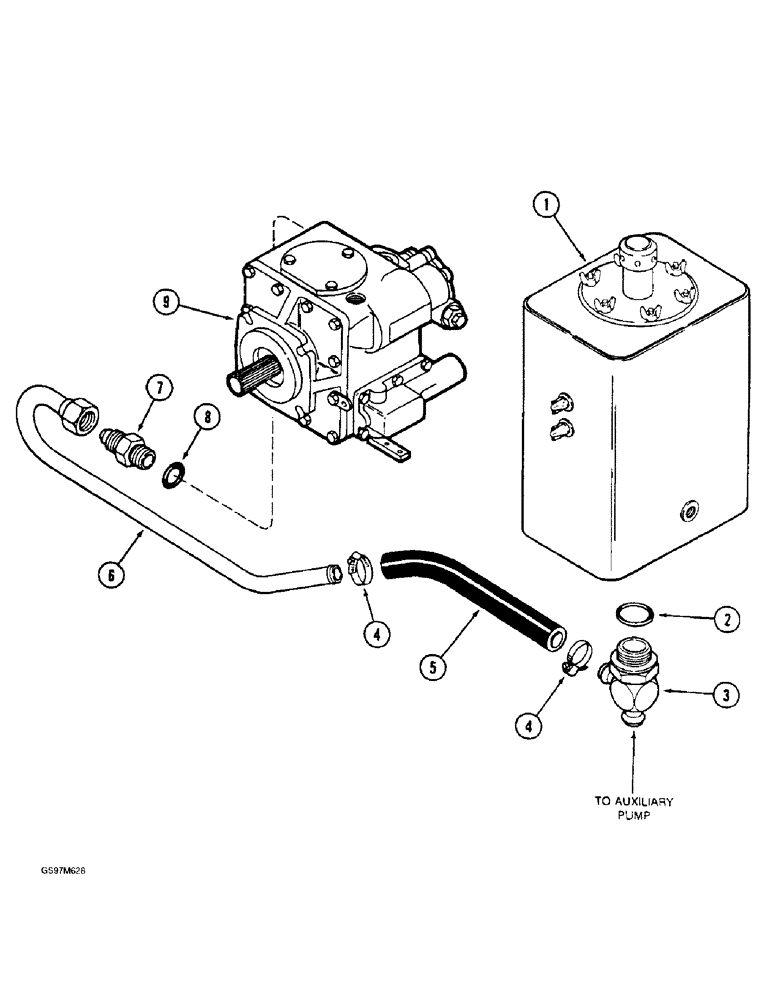

Запчасти Case IH 1660 (8-008) - HYDROSTATIC PUMP SYSTEM, RESERVOIR TO PUMP, PRIOR TO P.I.N. JJC0103800 (07) - HYDRAULICS

1

1301237C92

RESERVOIR

ASSEMBLY - hydraulic, parts list Figure 8-002

1шт.

2

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

3

1301506C1

TEE

- adjustable, 1-7/8-12 thread x 1 inch OD beaded tube

1шт.

4

214-1524

HOSE CLAMP,#24, 1.06" - 2", Type F Worm, W/ Liner

CLAMP - adjustable, 1-1/16 - 2 inch diameter, Type F

2шт.

5

NSS

NOT SOLD SEPARAT

HOSE - oil, 430 mm (16-15/16 inch) long, cut from bulk hose 407122R3 below

1шт.

6

1970458C1

HYD TUBE

TUBE - charge suction

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

9

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list Figure 6-20 or 6-28

1шт.

407122R3

LARGE HOSE,25.4mm ID x 16764mm L, SAE 100R16

HOSE - bulk, 16764 mm (660 inch) roll

1шт.
