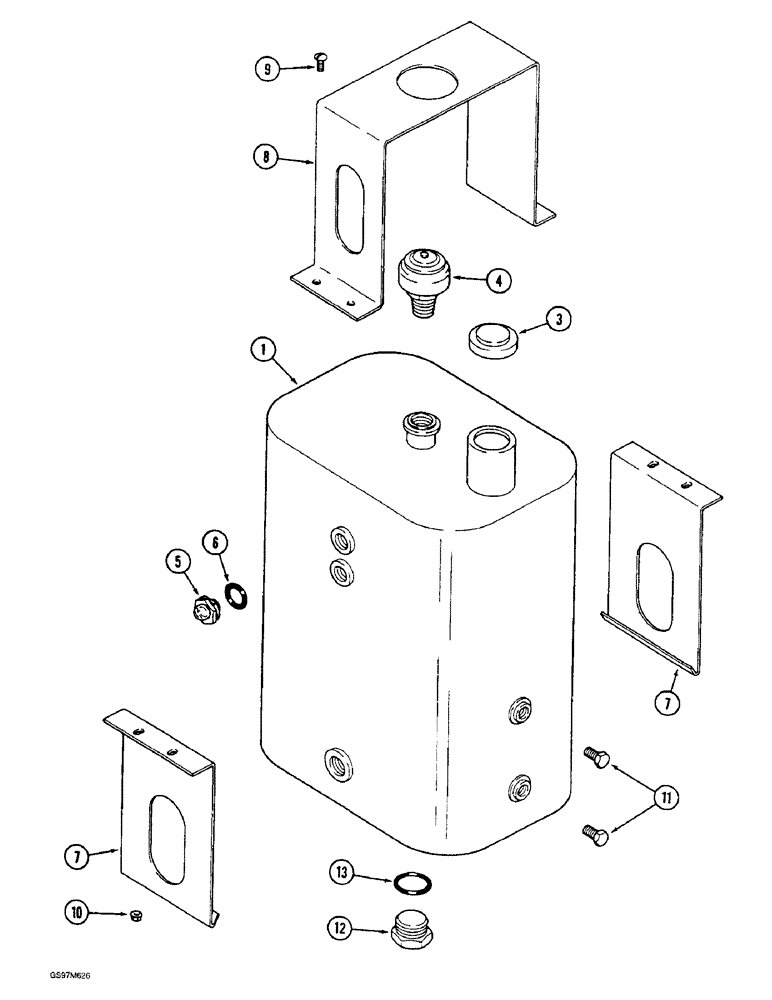

Запчасти Case IH 1660 (8-004) - HYDRAULIC RESERVOIR, P.I.N. JJC0103800 AND AFTER (07) - HYDRAULICS

1986534C3

RESERVOIR

ASSEMBLY - hydraulic oil, 8 gallon, corn and grain, models without cross flow cleaning system, Includes: Ref. 1 - 6

1шт.

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, 10 gallon, corn, grain and rice, models with cross flow cleaning system, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - hydraulic reservoir, order reservoir assembly

1шт.

3

1346309C2

FILLER CAP

CAP - fill, non-vented

1шт.

4

923745C91

BREATHER ASSY.

BREATHER - reservoir

1шт.

244600R92

SIGHTGLASS

GAUGE ASSEMBLY - sight, oil level, Includes: Ref. 5 & 6

2шт.

5

NSS

NOT SOLD SEPARAT

GLASS - sight, order gauge assembly 244600R92

2шт.

6

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

7

1979829C1

SUPPORT

- hydraulic reservoir

2шт.

8

1347146C1

CLAMP

- reservoir, 10 gallon tank, models with cross flow cleaning system

1шт.

8

1346911C1

SHIN

CLAMP - reservoir, 8 gallon tank, models without cross flow cleaning system

1шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

11

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

Includes Ref. 13 Hex Hd, 1/2"-14

2шт.

12

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-5/8-12 inch O-ring boss, if used, Includes: Ref. 13

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

14

104407A1

SCREEN

- reservoir, not shown

1шт.
