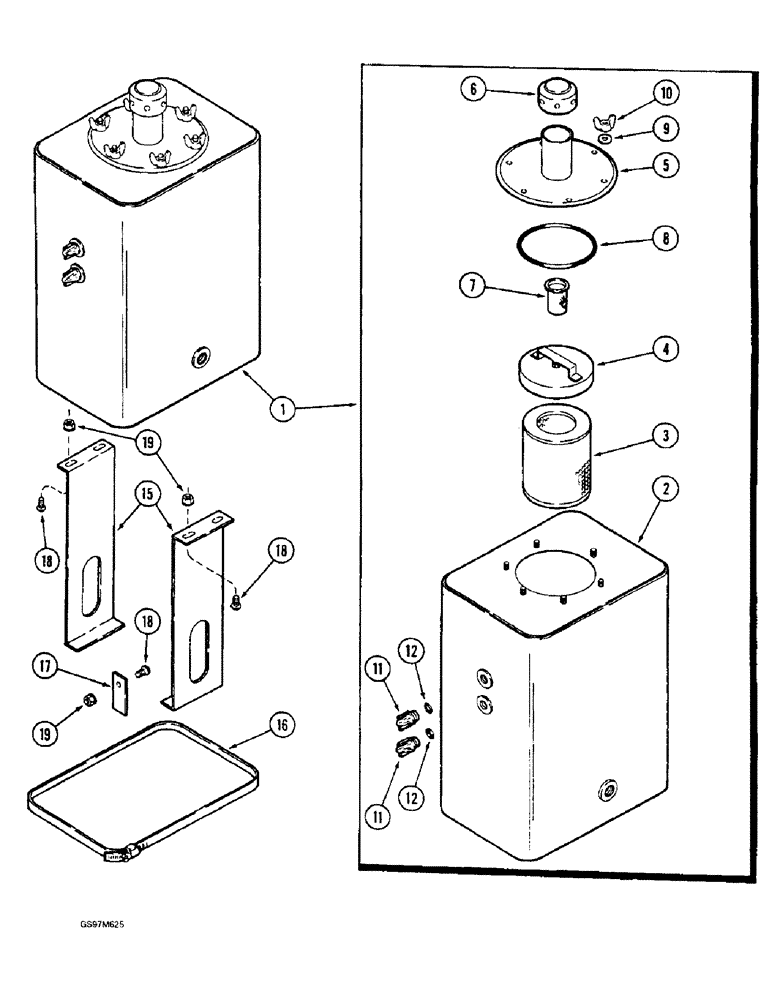

Запчасти Case IH 1660 (8-002) - HYDRAULIC RESERVOIR, PRIOR TO P.I.N. JJC0103800 (07) - HYDRAULICS

1

1301237C92

RESERVOIR

ASSEMBLY - hydraulic oil, 7 gallon, Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

TANK - hydraulic reservoir, order reservoir assembly 1301237C92

1шт.

3

528493R3

HYDRAULIC OIL FILTER

ELEMENT - tank filter

1шт.

4

173131C1

COVER ASSY

COVER - filter

1шт.

5

1285715C91

COVER

ASSEMBLY - tank, Includes: Ref. 6 & 7

1шт.

6

1272941C2

BREATHER

CAP - breather

1шт.

7

179489C1

FILTER, ENGINE OIL

SCREEN - filter, tank cover

1шт.

8

238-5438

O-RING,0.275" Thk x 6.225" ID, -438, Cl 5, 75 Duro

- 6-1/4 ID x 1/4 inch wide

1шт.

9

495-81102

WASHER,.266" x 1/2" x .060"

- flat, 17/64 x 1/2 x 3/64 inch

6шт.

10

126177

WING NUT

NUT - wing, 1/4 inch NC

6шт.

244600R92

SIGHTGLASS

GAUGE ASSEMBLY - sight, oil level, Includes: Ref. 11 & 12

2шт.

11

NSS

NOT SOLD SEPARAT

GLASS - sight, order gauge assembly 244600R92

2шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

15

193291C1

SUPPORT

- hydraulic reservoir

2шт.

16

214-14180

HOSE CLAMP,#180, 10.88" - 11.75", Type F Worm

CLAMP - adjustable, 10-7/8 - 11-3/4 inch, Type F

2шт.

17

159752C1

SUPPORT

- hydraulic reservoir clamp

1шт.

18

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

3шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.
