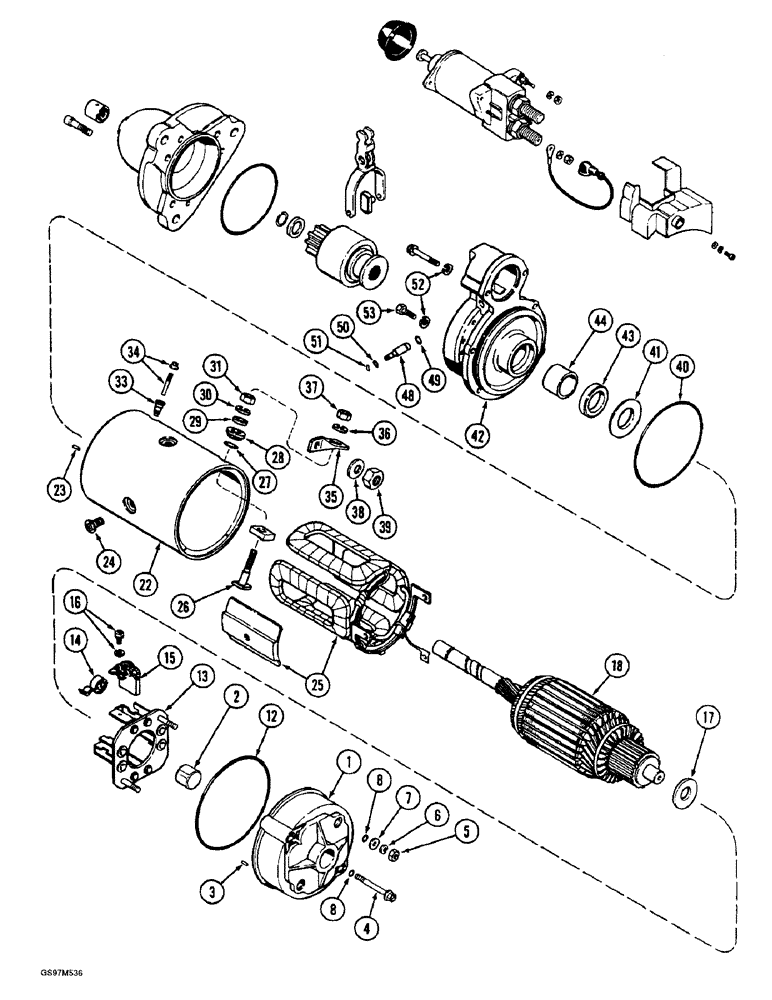

Запчасти Case IH 1660 (4-70) - STARTER (06) - ELECTRICAL

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, Nipondenso 128000-5330, Includes: Ref. 1 - 53 and 54 - 73 on Figure 4-72

1шт.

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

AC187728

CORE-STARTER

Return Part Number

1шт.

87297380

REMAN-STARTER

Starter

1шт.

87297381

CORE-STARTER

Return Part Number

1шт.

A187728GV

STARTER MOTOR

Value

1шт.

1

A187851

HOUSING

FRAME ASSEMBLY - end, commutator, Includes: Ref. 2 & 3

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - needle, order frame assembly A187851

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - dowel, locating, order frame assembly A187851

1шт.

4

845-6060

BOLT,Hvy Hex, M6 x 60mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 60 mm

4шт.

5

825-2306

FLANGE NUT,M6 x 1, Flg, Cl 8

NUT - hex flange, 6 mm - 1, 6

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER - lock, 6 mm, order starter assembly A187728

2шт.

7

NSS

NOT SOLD SEPARAT

WASHER - flat, 6 mm, order starter assembly A187728

2шт.

8

A187857

O-RING,5.8 mm ID x 1.9 mm

O-RING - sealing

4шт.

12

NSS

NOT SOLD SEPARAT

O-RING - frame order starter assmebly A187728

1шт.

13

A187852

BRUSH HOLDER

HOLDER, BRUSH HOLDER ASSEMBLY - brush, Includes: Ref. 14

1шт.

14

A187823

SPRING

SPRING - brush

4шт.

15

A187794

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

16

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

SCREW - slotted, includes lock washer, 5 - 0.8 x 12 mm

4шт.

17

A47813

WASHER

WASHER - end, armature

1шт.

18

A187847

ARMATURE

ARMATURE - starter

1шт.

22

A187846

HOUSING ASSY.

HOUSING ASSEMBLY - field coil, Includes: Ref. 23 - 33

1шт.

23

NSS

NOT SOLD SEPARAT

PIN - dowel, locating, order housing assembly A187846

2шт.

24

NSS

NOT SOLD SEPARAT

SCREW - retainer, coil, order housing assembly A187846

4шт.

25

NSS

NOT SOLD SEPARAT

COIL ASSEMBLY - field, order housing assembly A187846

1шт.

26

NSS

NOT SOLD SEPARAT

TERMINAL - field, order housing assembly A187846

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - terminal, order housing assembly A187846

1шт.

28

NSS

NOT SOLD SEPARAT

BUSHING - insulation, order housing assembly A187846

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - flat plate, order housing assembly A187846

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - lock, order housing assembly A187846

1шт.

31

NSS

NOT SOLD SEPARAT

NUT - hex, terminal, order housing assembly A187846

1шт.

33

NSS

NOT SOLD SEPARAT

STUD - field

1шт.

34

A187862

FLANGE NUT

NUT - hex, terminal

1шт.

35

A187858

FITTING

CONNECTOR - terminal B

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - lock, order starter assembly A187728

1шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

NUT, M10, Cl 10

1шт.

38

A187859

WASHER

WASHER - wave

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING - sealing, housing, order starter assembly A187728

1шт.

41

A187860

WASHER

WASHER - plate, armature

1шт.

42

A187850

HOUSING

HOUSING ASSEMBLY - lever, Includes: Ref. 43 & 44

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL - oil, housing, order housing assembly A187850

1шт.

44

NSS

NOT SOLD SEPARAT

BEARING - housing, order housing assembly A187850

1шт.

48

A187865

KIT

KIT - pin, lever, Includes: Ref. 49 - 51

1шт.

49

NSS

NOT SOLD SEPARAT

O-RING - pin, large, order kit A187865

1шт.

50

NSS

NOT SOLD SEPARAT

O-RING - pin, small, order kit A187865

1шт.

51

NSS

NOT SOLD SEPARAT

RING - snap, pin, order kit A187865

1шт.

52

A49815

LOCK WASHER

WASHER - lock, bolt

4шт.

53

A187861

BOLT,Hex, M7 x 23mm

BOLT - hex, housing, 7 x 23 mm

4шт.
