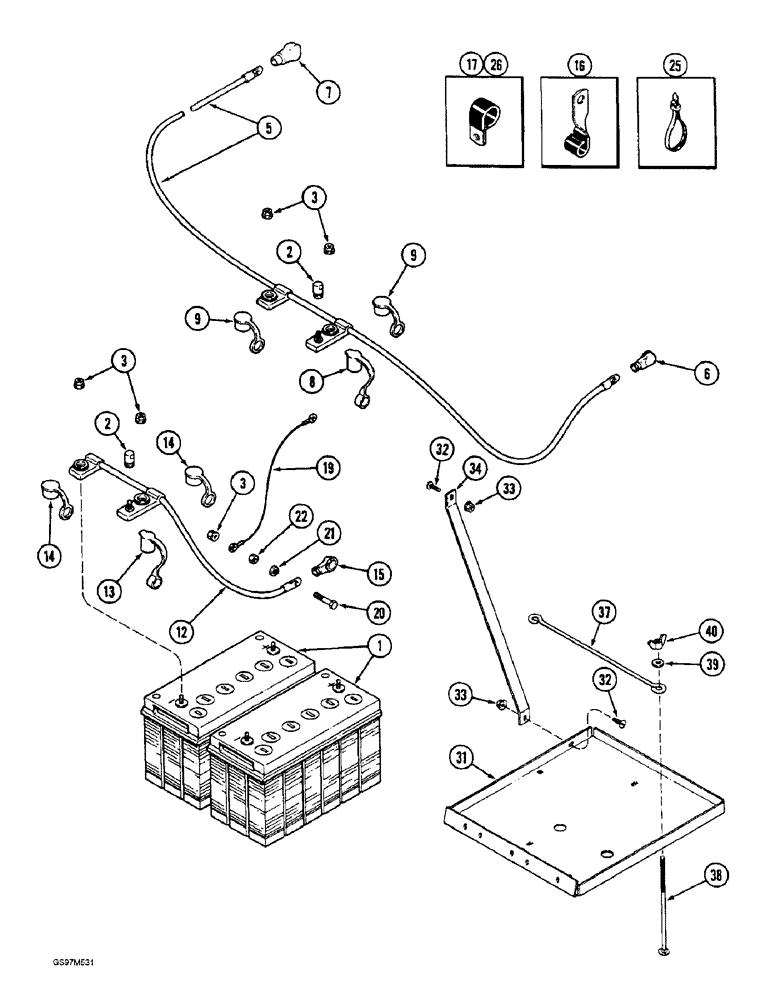

Запчасти Case IH 1660 (4-60) - BATTERY AND BATTERY CABLES, WITH STUD POSTS, PRIOR TO P.I.N. JJC0102422 (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
BMF31GS
DRY BATTERY
BATTERY - dry charged, 12 volt
2шт.
2
245739C1
BUSHING,3/8"-16, 19mm OD x 31.75mm W
- jump start
1шт.
3
476074C1
NUT
- hex flange, 3/8 inch NC
5шт.
5
1964782C3
CABLE
ASSEMBLY - battery, positive, Includes: Ref. 6 - 15
1шт.
6
S115407
BOOT
- battery cable (Replaces boot 364910R1)
1шт.
7
NSS
NOT SOLD SEPARAT
BOOT - battery cable, order cable assembly 1964782C3
1шт.
8
NSS
NOT SOLD SEPARAT
BOOT - battery cable, order cable assembly 1964782C3
1шт.
9
NSS
NOT SOLD SEPARAT
BOOT - battery cable, order cable assembly 1964782C3
1шт.
12
245226C2
CABLE PULLING GRIP
CABLE ASSEMBLY - battery, ground
1шт.
13
NSS
NOT SOLD SEPARAT
BOOT - battery cable, order cable assembly 245226C2
1шт.
14
NSS
NOT SOLD SEPARAT
BOOT - battery cable, order cable assembly 245226C2
1шт.
15
NSS
NOT SOLD SEPARAT
BOOT - battery cable, order cable assembly 245226C2
1шт.
16
363660R1
CLIP
- battery positive cable
1шт.
17
299414C1
CLAMP,7/8", Insul, 1/4" Bolt
- battery positive cable
1шт.
19
158477C91
CABLE
- engine to combine ground
1шт.
20
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
21
492-11038
LOCK WASHER,3/8"
1шт.
22
425-106
NUT,3/8"-16, Cl 5
1шт.
25
702093C1
CABLE TIE
STRAP - tie
2шт.
26
515-23254
CLAMP,1", Insul, 3/8" Bolt
P-type 1", Insul, 3/8" Bolt
1шт.
31
194267C6
TRAY
- battery
1шт.
32
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- serrated slotted truss head, 5/16 NC x 3/4"
4шт.
33
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
4шт.
34
194266C1
SUPPORT
- battery tray
1шт.
37
188116C1
CLAMP
- battery hold down, tray
1шт.
38
411-5152
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2
BOLT - carriage, 5/16 NC x 9-1/2 inch, grade 2
2шт.
39
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
2шт.
40
129-419
WING NUT,5/16"-18
NUT - wing, 5/16 inch NC
2шт.
Выбрано товаров: 28
